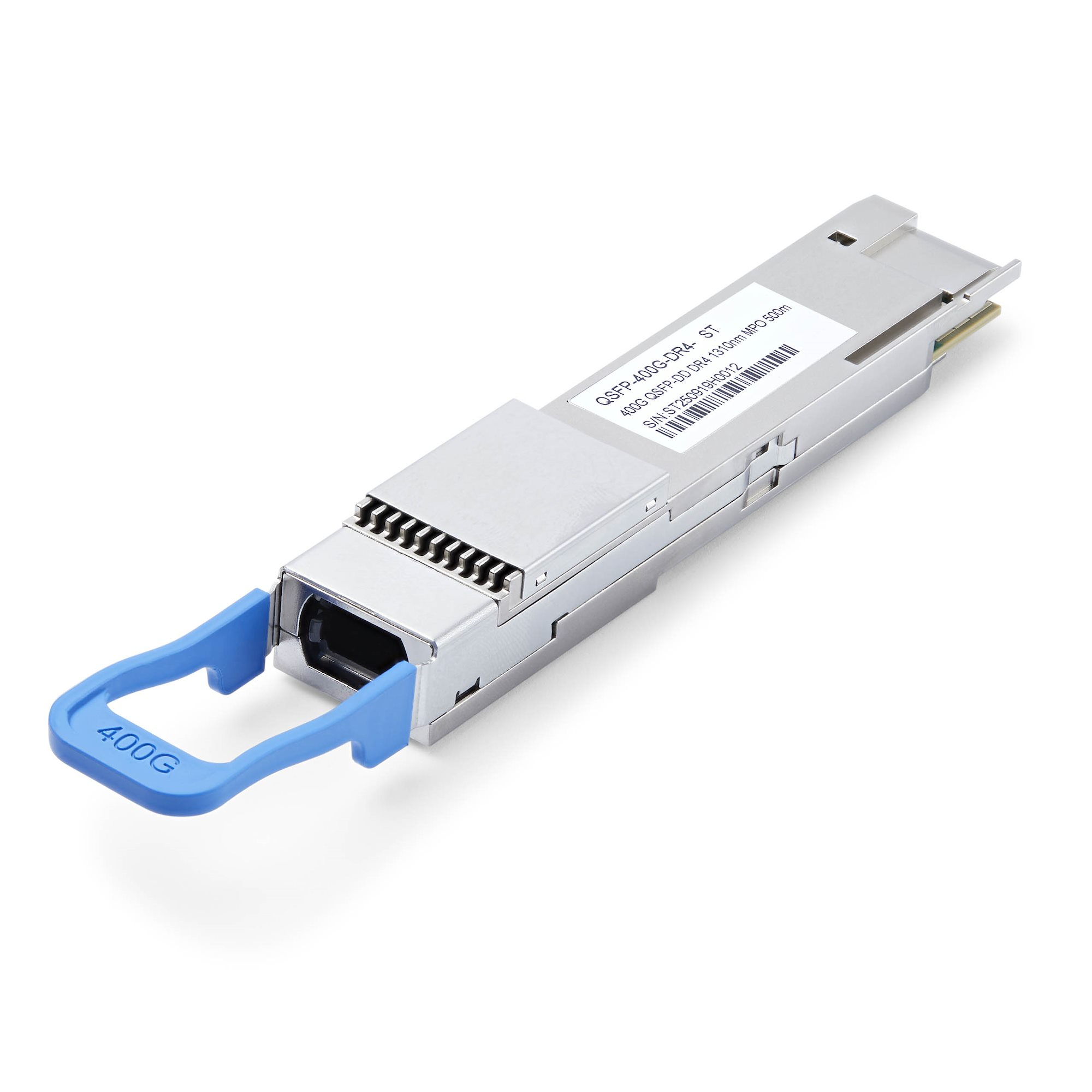

![StarTech.com Cisco QDD-400G-DR4-S Compatible QSFP-DD Module, 400Gbps Single Mode Fiber (SMF), 500m [1640ft], MPO Transceiver, 1310nm](https://images.icecat.biz/img/gallery/375d5d96fde15902b447e06689875ee2e83213f3.jpg)

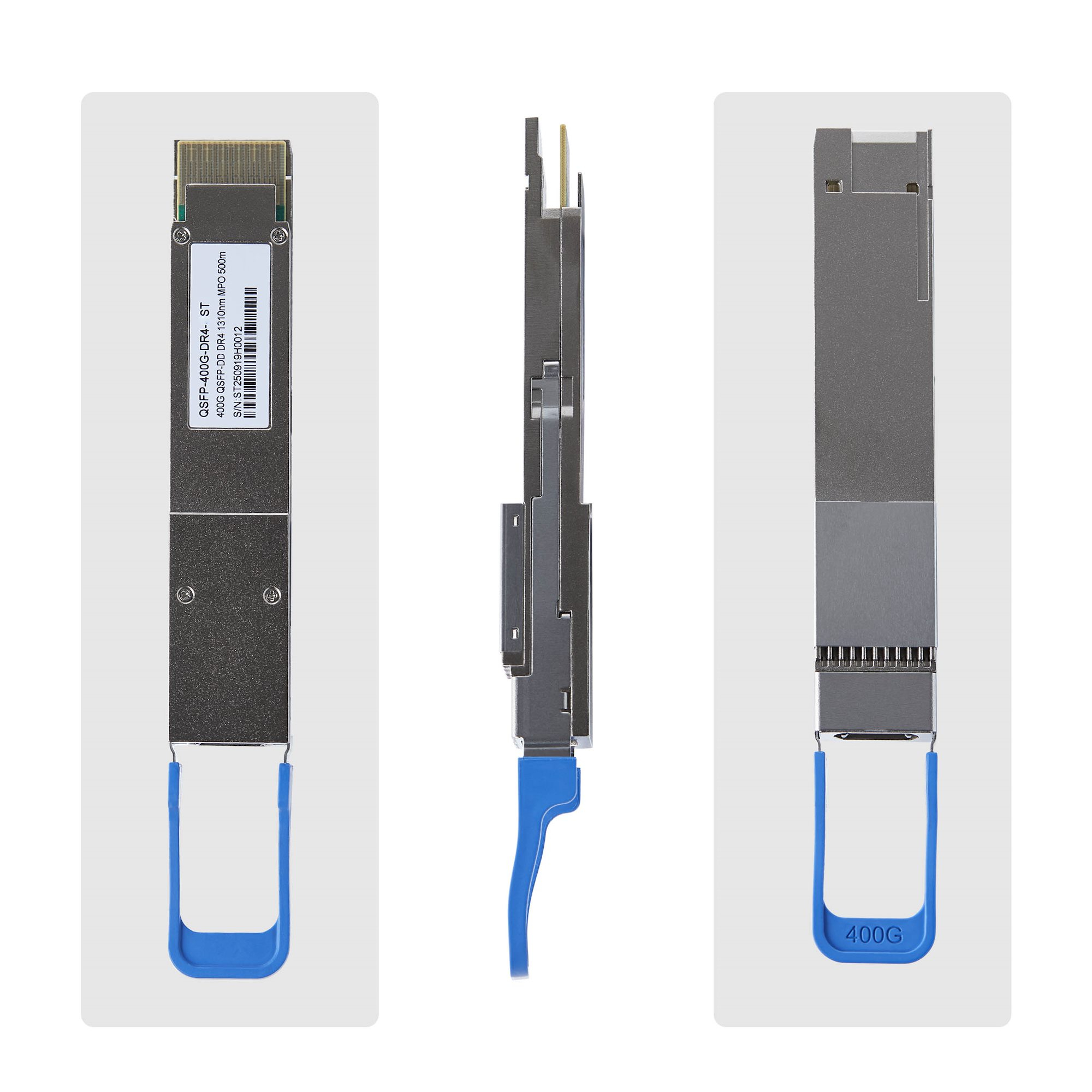

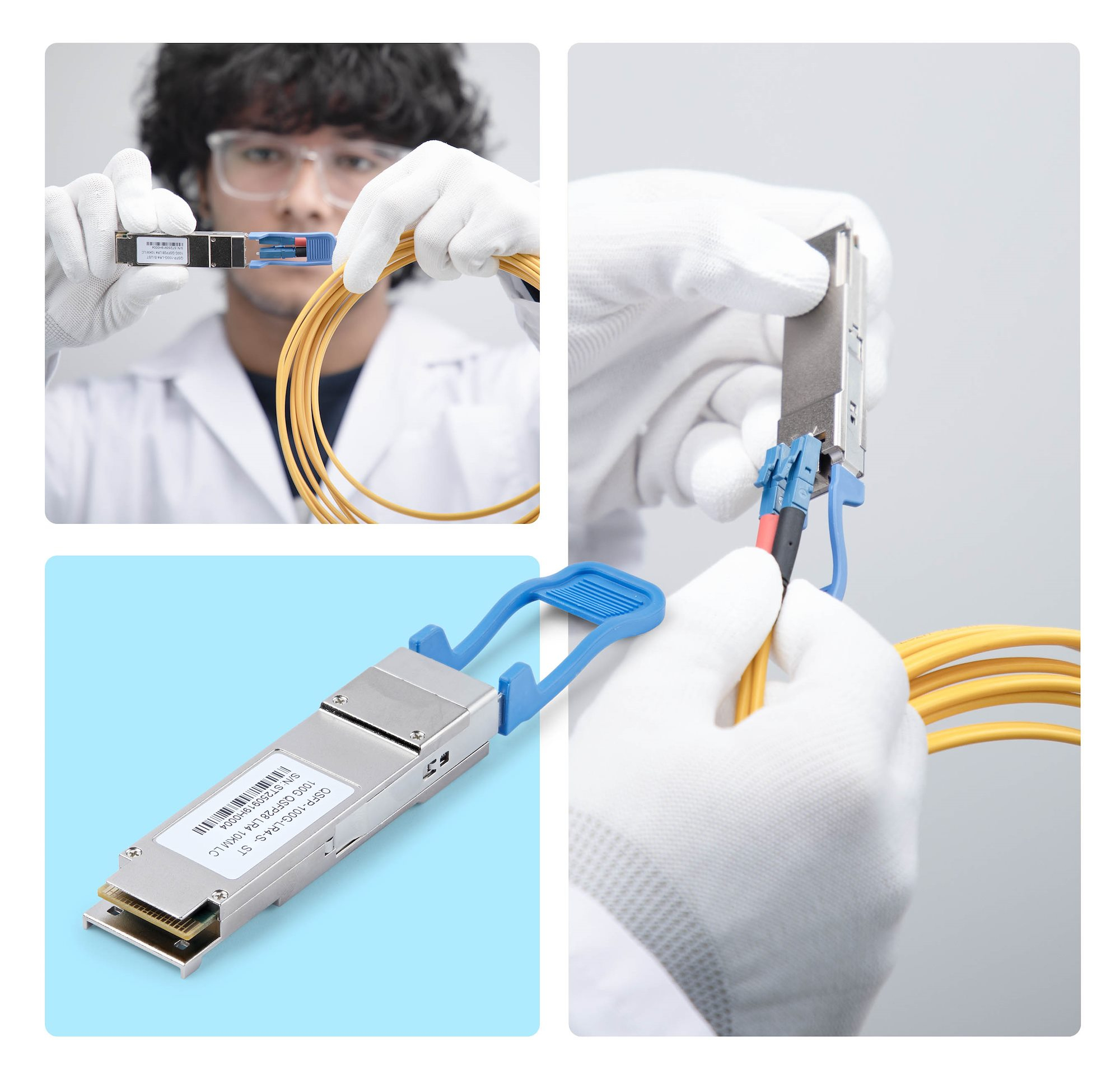

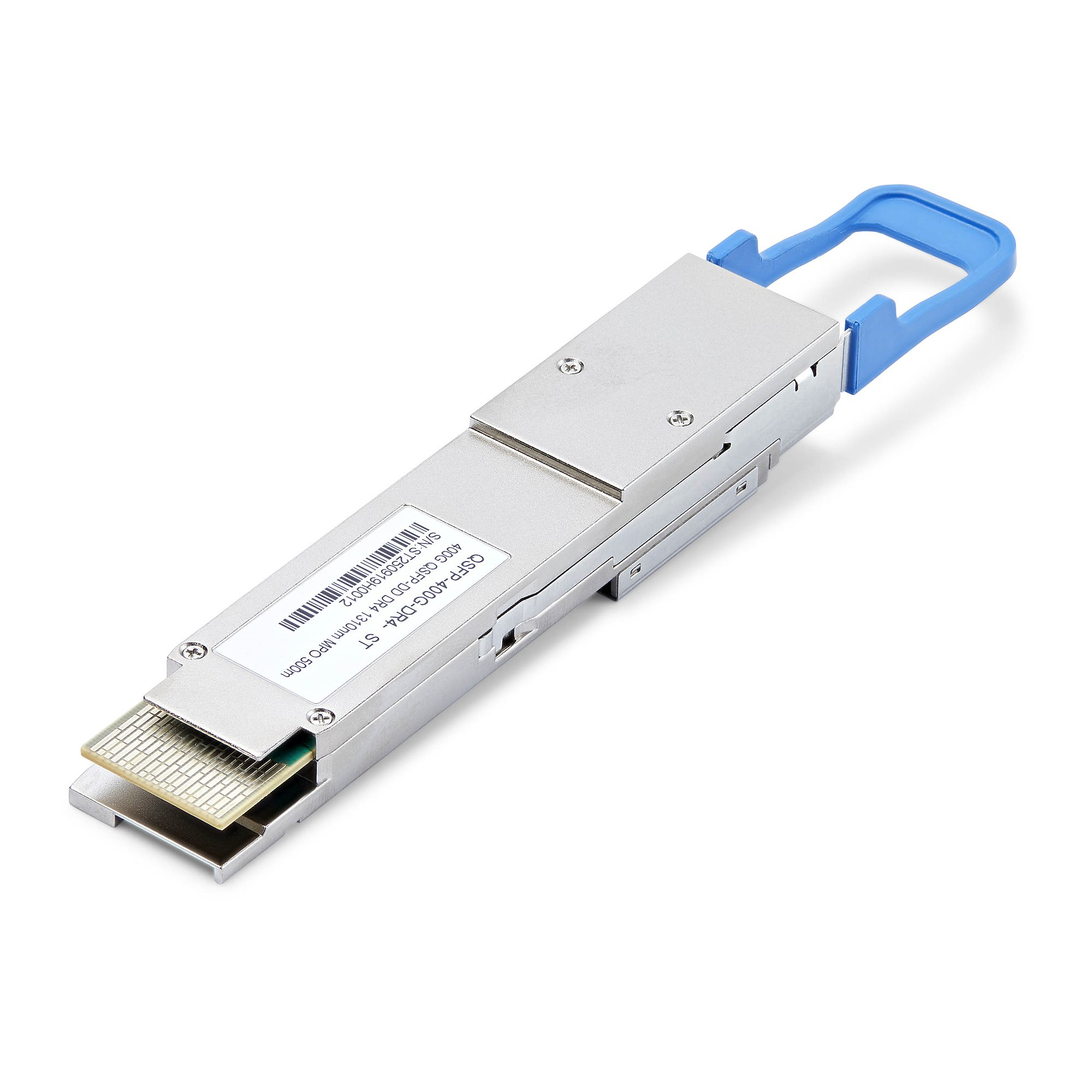

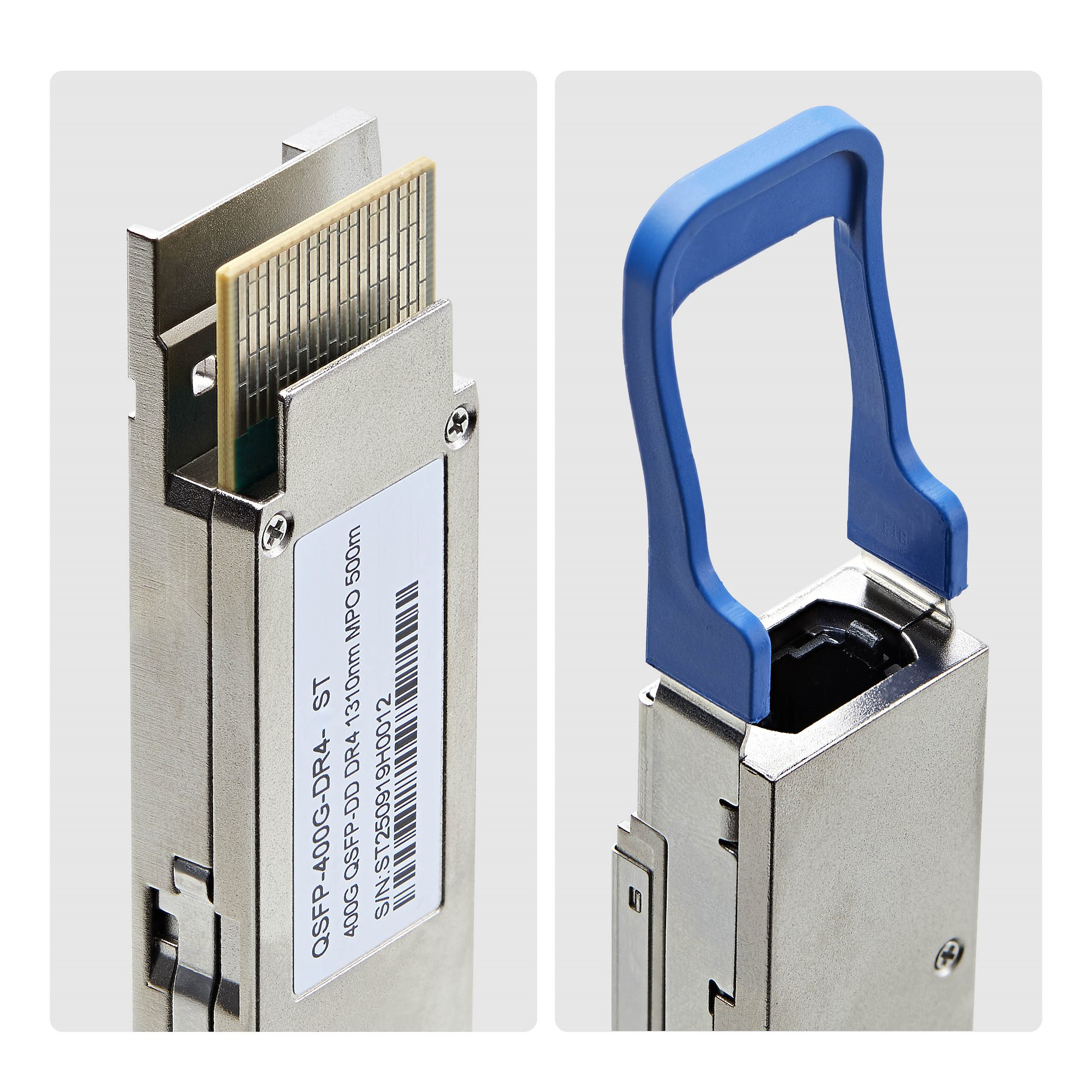

Cisco QDD-400G-DR4-S Compatible QSFP-DD Module, 400Gbps Single Mode Fiber (SMF), 500m [1640ft], MPO Transceiver, 1310nm
Model QSFP-400G-DR4-STEAN 065030925471
29 specifications
- Speed400000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)12 W
- Operating temperature (T-T)0 - 70 °C
- Width19 mm
Overview
- Speed
- 400000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 12 W
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 19 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- QSFP-400G-DR4-ST
- Part number
- QSFP-400G-DR4-ST
- EAN / UPC
- 065030925471
- Also known as
- StarTech.com Cisco QDD-400G-DR4-S Compatible QSFP-DD Module, 400Gbps Single Mode Fiber (SMF), 500m [1640ft], MPO Transceiver, 1310nm
Specifications
29 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 400000 Mbit/s |
| Interface type | QSFP-DD |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | MPO |
| SFP transceiver standard | DR4 |
| Maximum transfer distance | 500 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3bs |
| Fiber ethernet cabling technology | 400GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Mean time between failures (MTBF) | 2603285 h |
| Brand compatibility | Cisco |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 19 mm |
| Depth | 117.8 mm |
| Height | 12.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| User guide | Yes |
| Package width | 180 mm |
| Package depth | 127 mm |
| Package height | 48 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 117 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 36 pc(s) |
