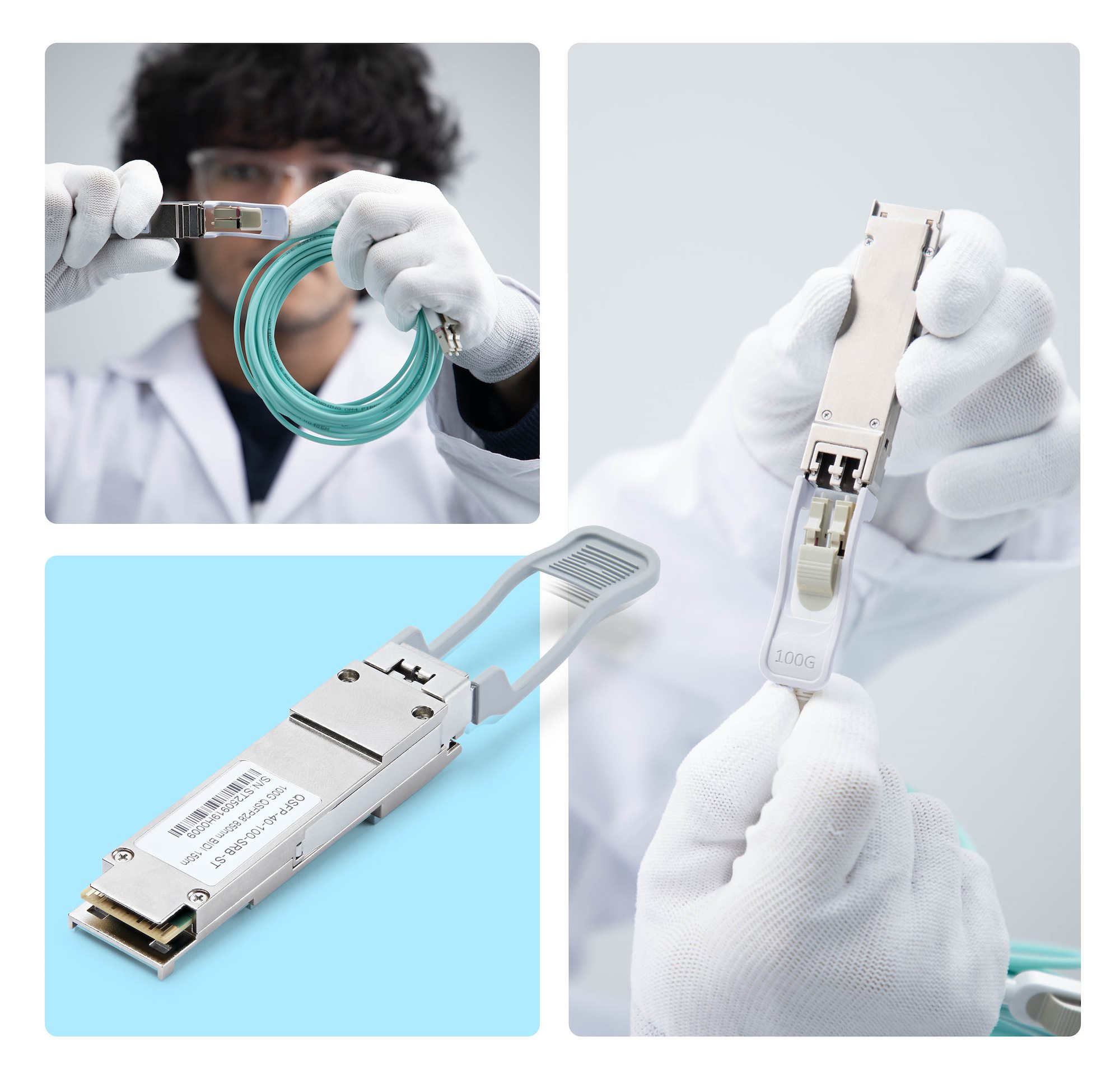

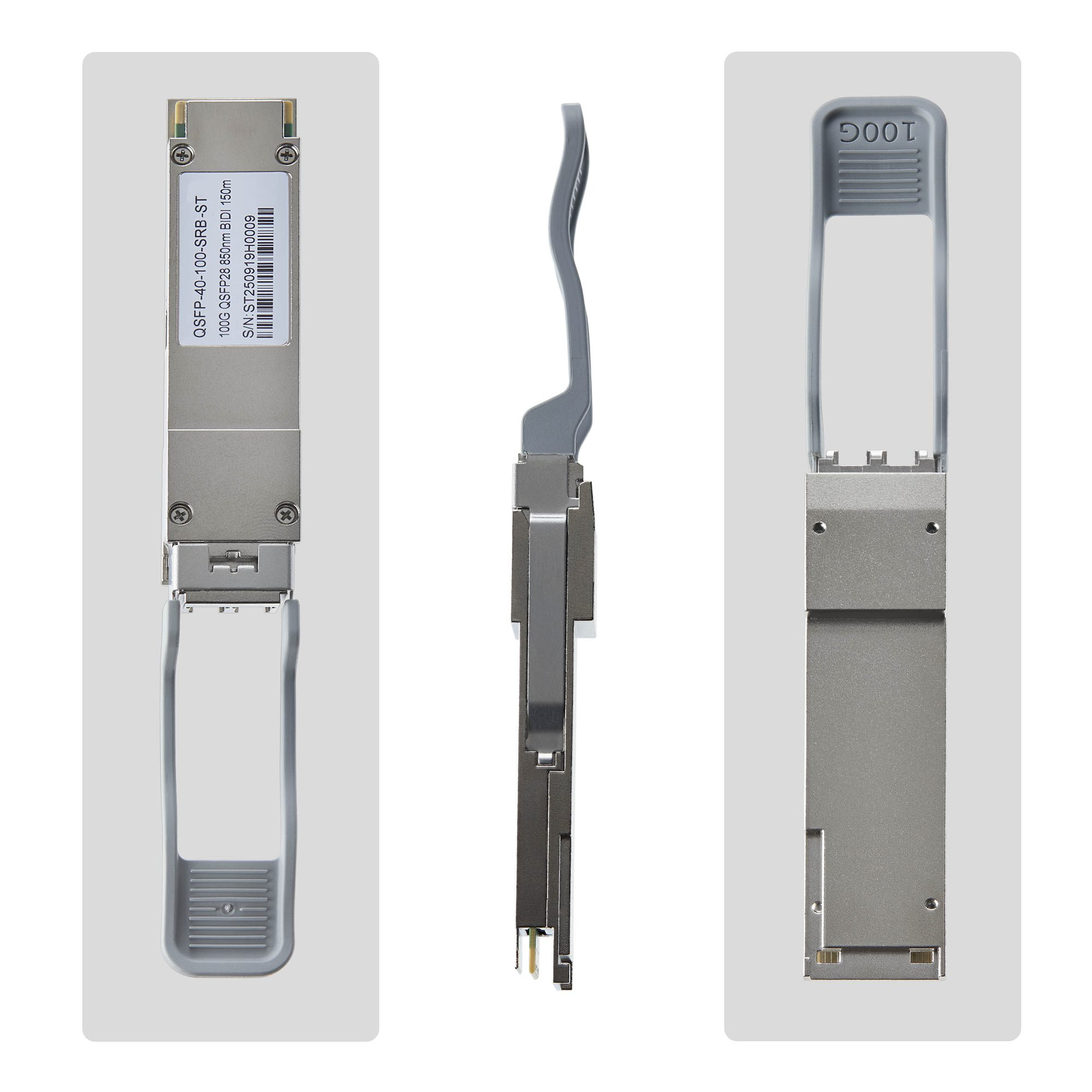

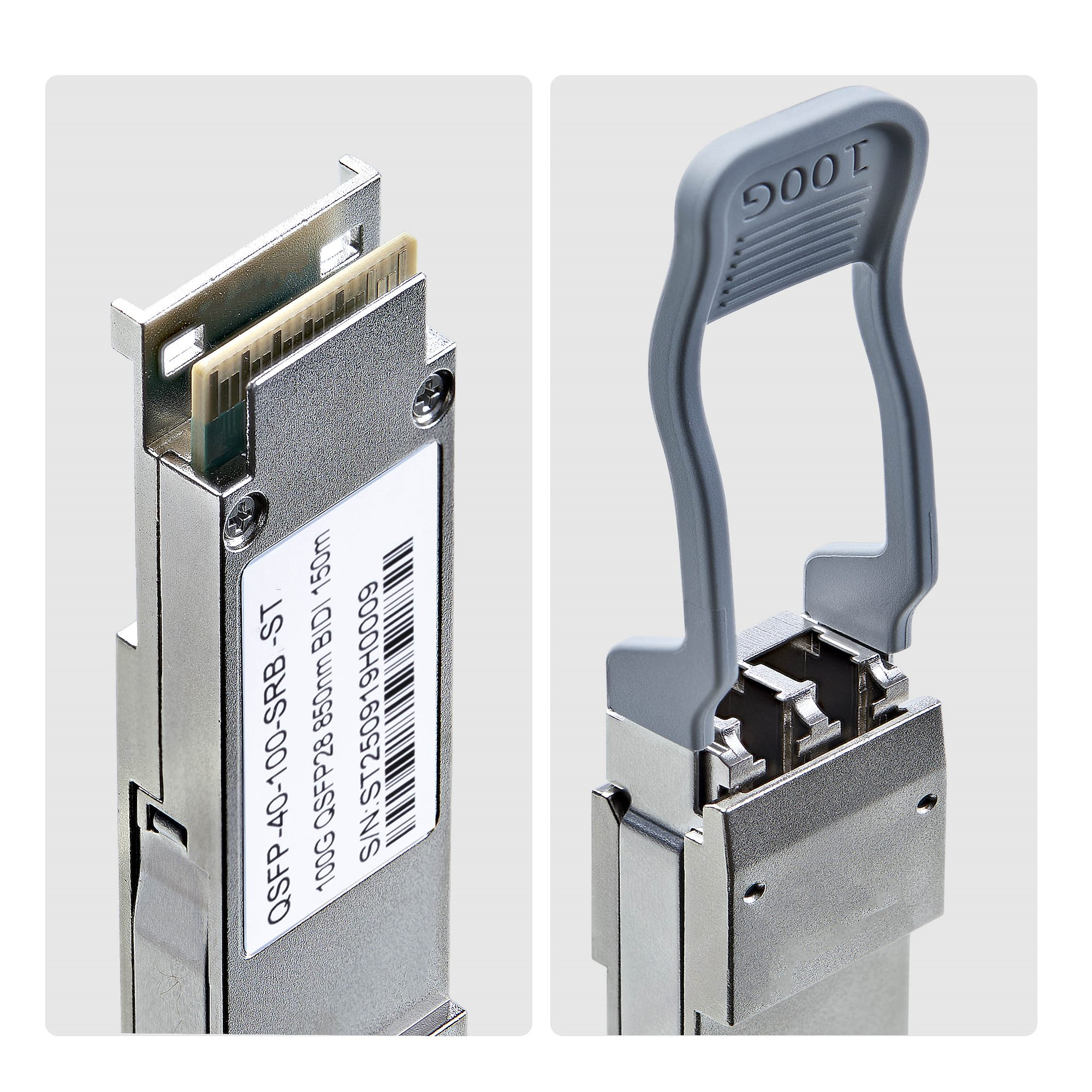

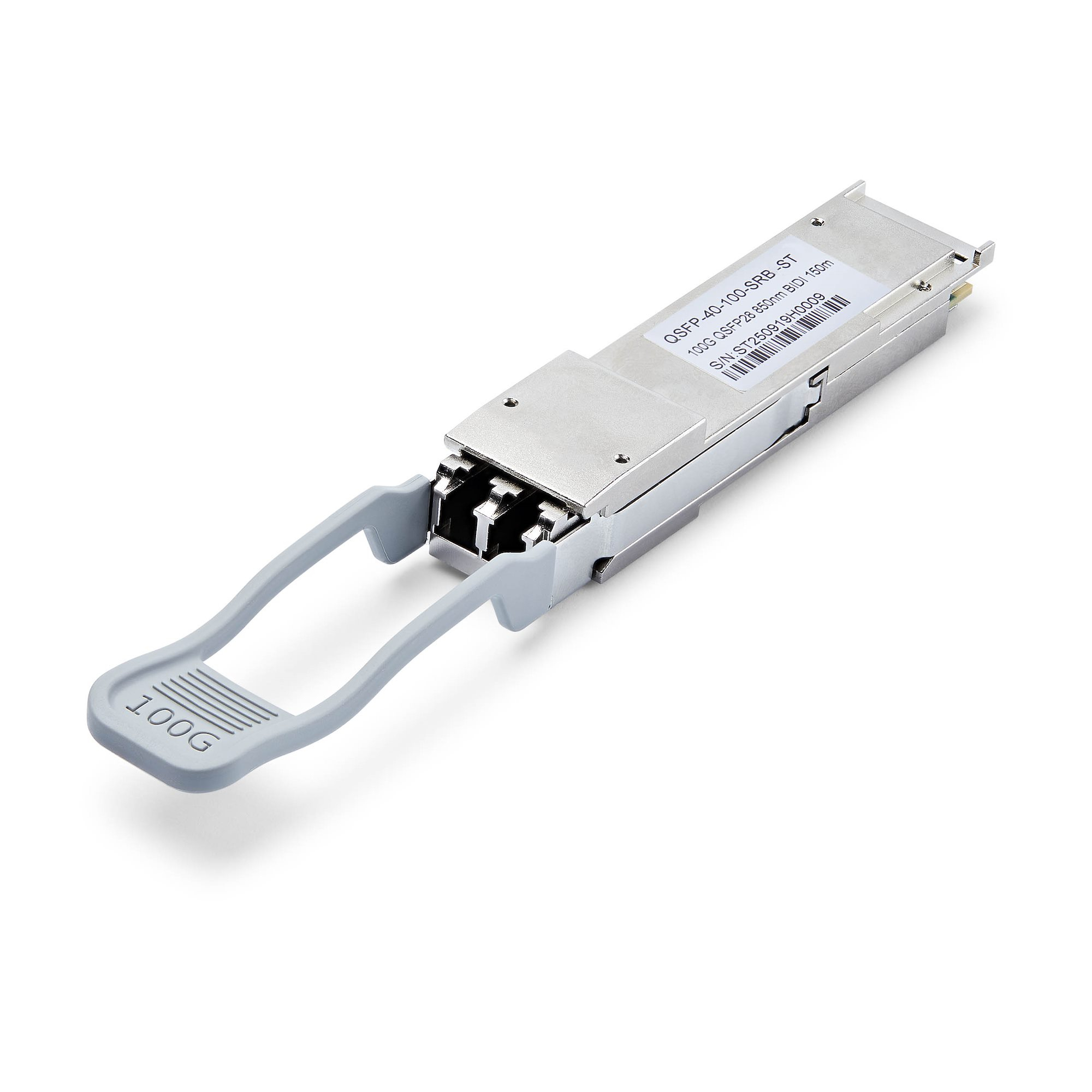

StarTech.com Cisco QSFP-40/100-SRBD Compatible QSFP Module, 40/100Gbps Multi Mode Fiber (MMF), 100m [328ft], LC Transceiver, 850nmTX/900nmRX

Cisco QSFP-40/100-SRBD Compatible QSFP Module, 40/100Gbps Multi Mode Fiber (MMF), 100m [328ft], LC Transceiver, 850nmTX/900nmRX

Model QSFP-40-100-SRB-STEAN 065030925617

24 specifications

Speed100000 Mbit/s
ColourSilver
SFP transceiver typeFiber optic
Power consumption (typical)4 W
Operating temperature (T-T)0 - 70 °C
Width19 mm

See all specifications

Overview

Speed: 100000 Mbit/s
Colour: Silver
SFP transceiver type: Fiber optic
Power consumption (typical): 4 W
Operating temperature (T-T): 0 - 70 °C
Width: 19 mm

Brand: StarTech.com
Category: Network Transceiver Module
Model: QSFP-40-100-SRB-ST
Part number: QSFP-40-100-SRB-ST
EAN / UPC: 065030925617
Also known as: StarTech.com Cisco QSFP-40/100-SRBD Compatible QSFP Module, 40/100Gbps Multi Mode Fiber (MMF), 100m [328ft], LC Transceiver, 850nmTX/900nmRX

Specifications

24 specifications in 8 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	100000 Mbit/s
Interface type	QSFP
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC
SFP transceiver standard	SRBD
Maximum transfer distance	100 m
Tx wavelength (max)	850 nm
Rx wavelength (max)	900 nm
Networking standards	IEEE 802.3ba
Fiber ethernet cabling technology	100GBASE
Duplex system	Full, Half
Digital Diagnostics Monitoring (DDM)	Yes

Features

Specification	Value
Product colour	Silver
Mean time between failures (MTBF)	3543209 h
Brand compatibility	Cisco

Power

Specification	Value
Power consumption (typical)	4 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C

Weight & dimensions

Specification	Value
Width	19 mm
Depth	117.6 mm
Height	12.6 mm

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
User guide	Yes

Logistics data

Specification	Value
Products per master (outer) case	36 pc(s)
