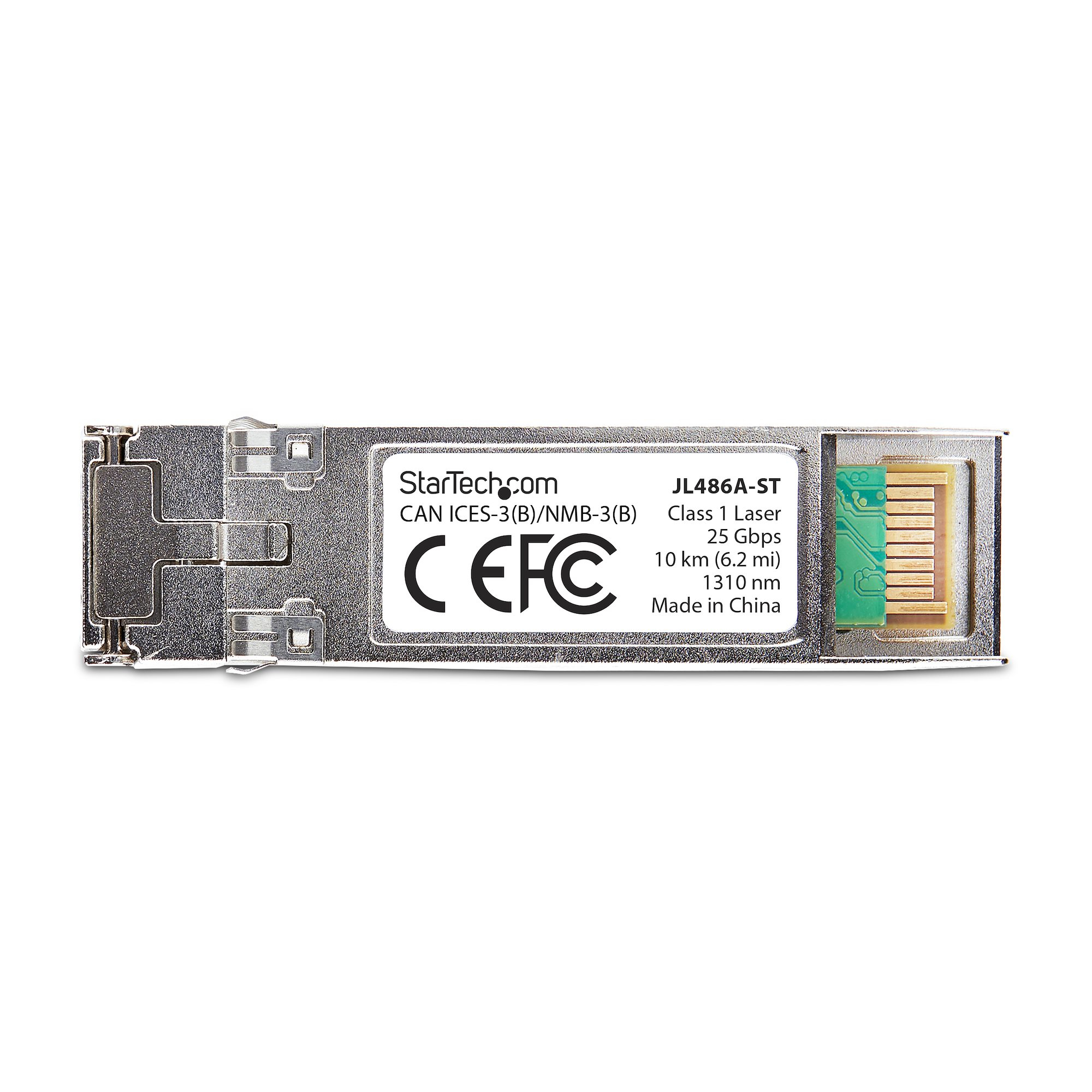

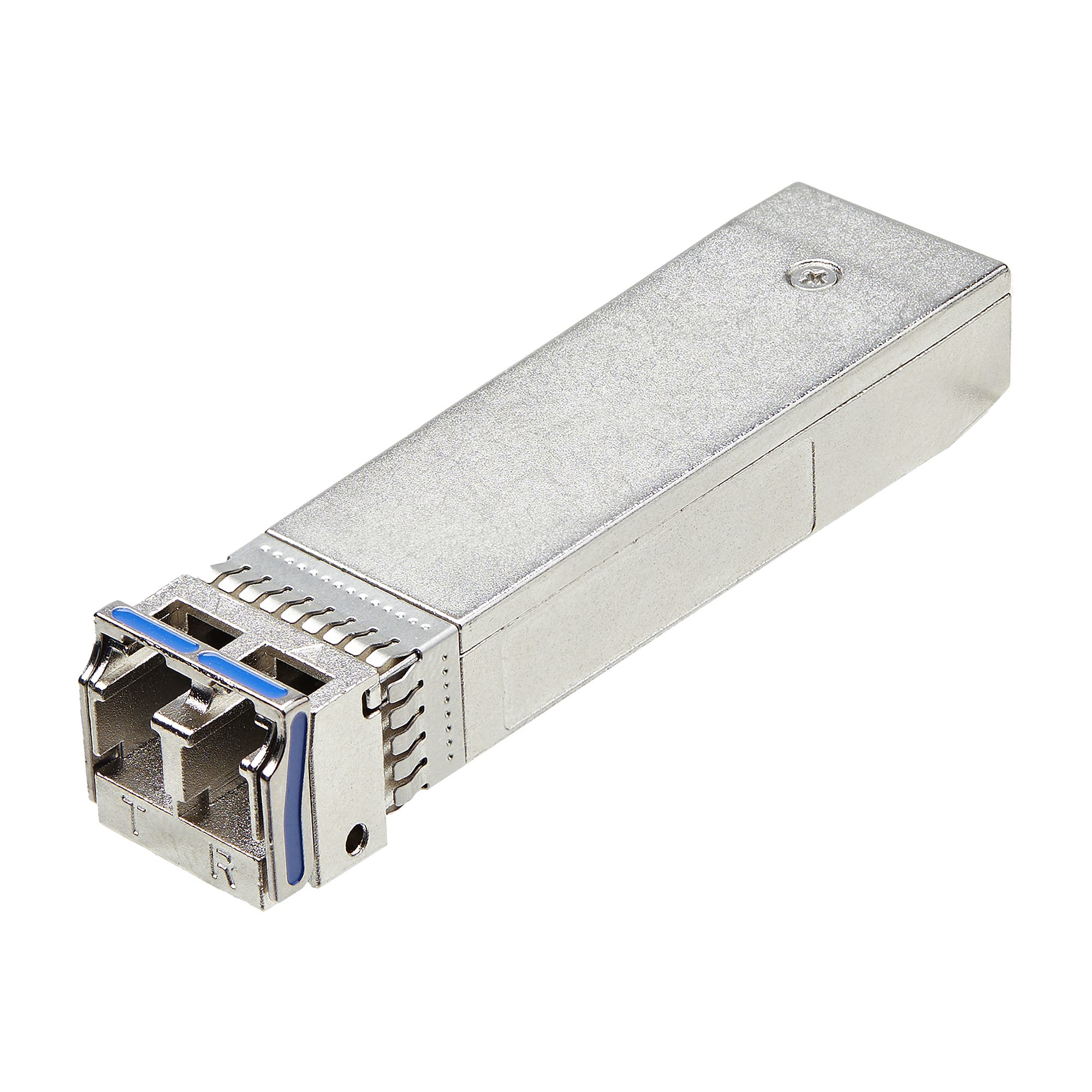

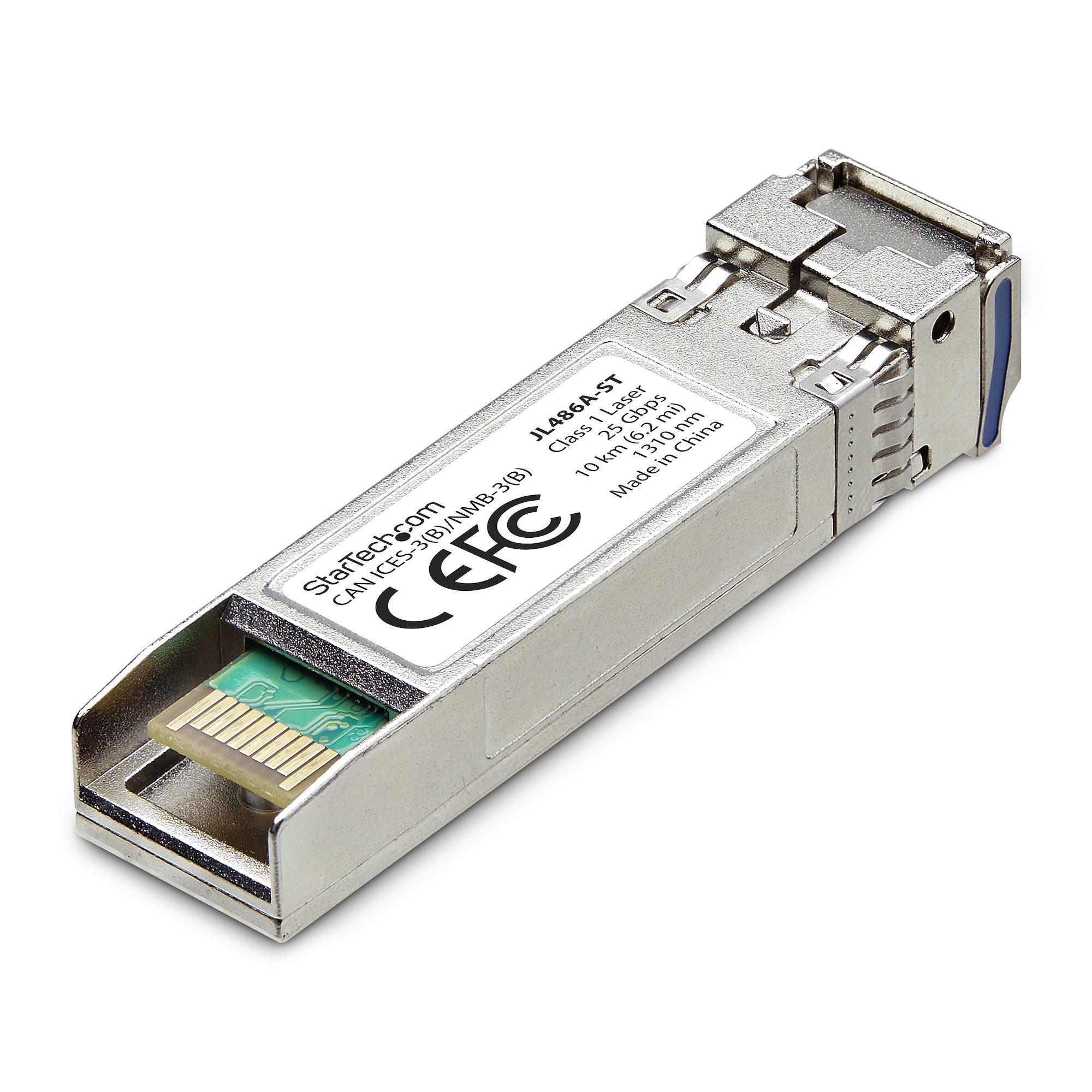

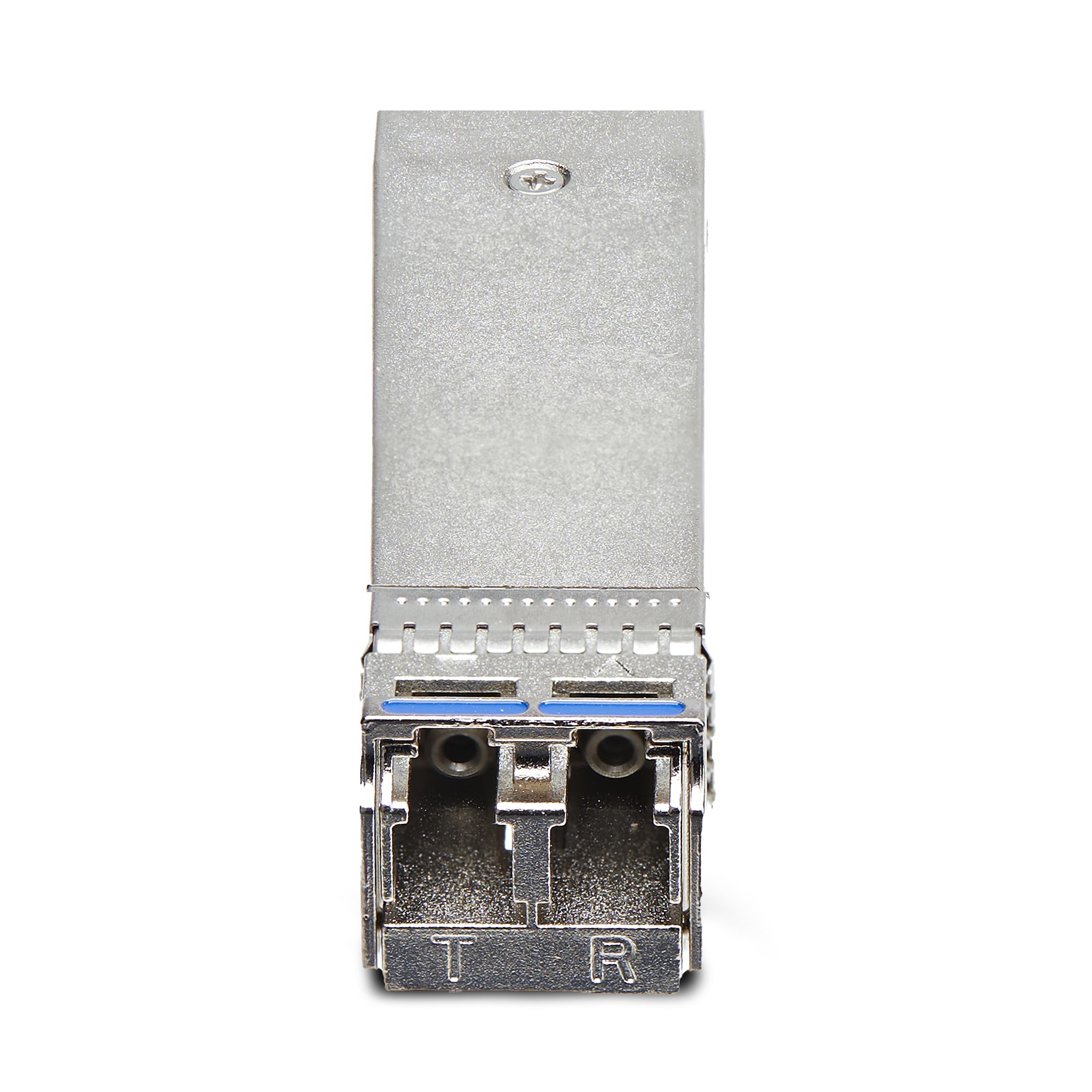

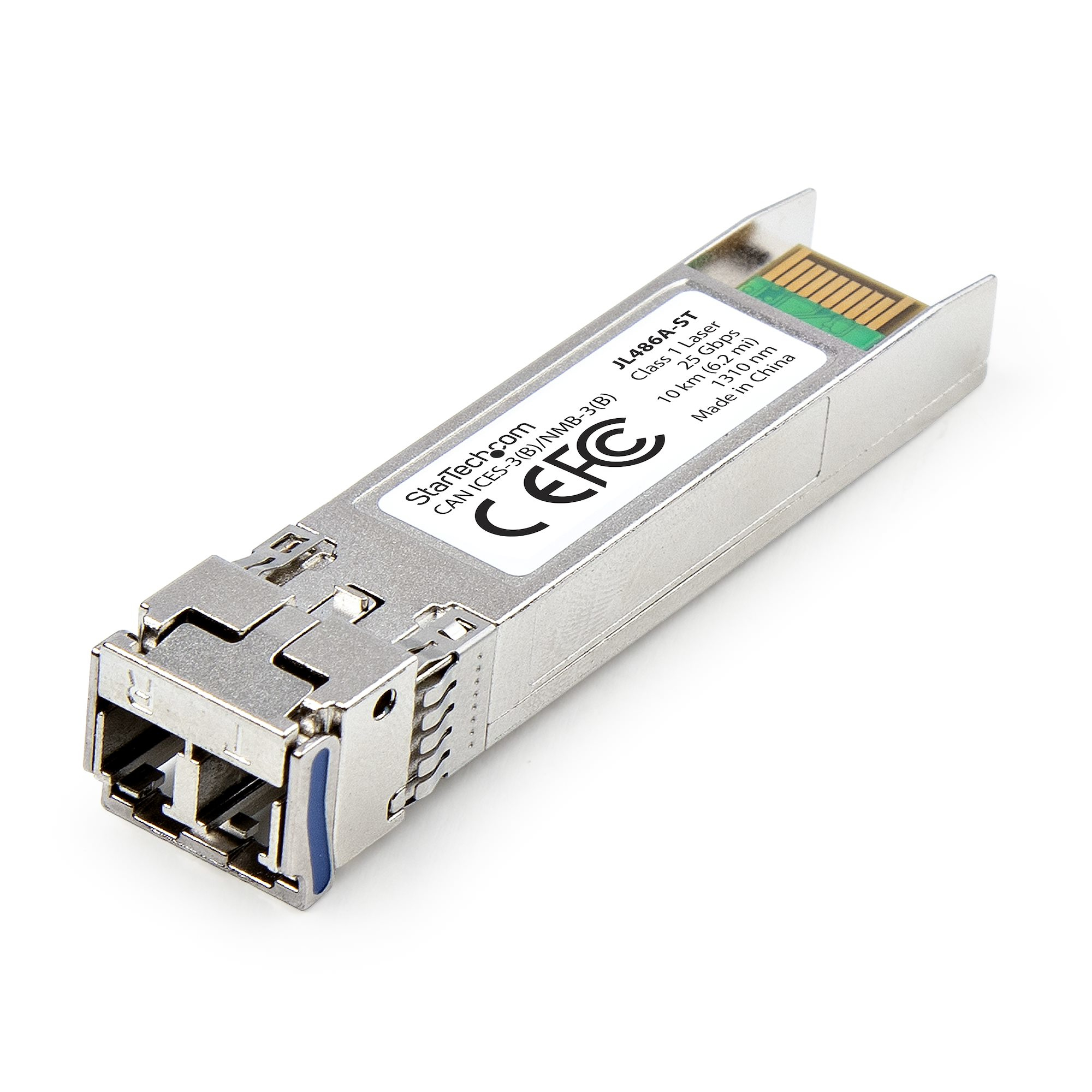

HPE JL486A Compatible SFP28 Module, 25GBase-LR, 25Gbps Single Mode Fiber (SMF), 10km (6.2mi), LC Connector, 1310nm, MSA 25 Gigabit Optical Transcei
Model JL486A-STEAN 065030908269
32 specifications
- Speed25780 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)1.2 W
- Operating temperature (T-T)0 - 70 °C
- Width90 mm
Overview
- Speed
- 25780 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1.2 W
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 90 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- JL486A-ST
- Part number
- JL486A-ST
- EAN / UPC
- 065030908269
- Also known as
- StarTech.com HPE JL486A Compatible SFP28 Module, 25GBase-LR, 25Gbps Single Mode Fiber (SMF), 10km (6.2mi), LC Connector, 1310nm, MSA 25 Gigabit Optical Transcei
Specifications
32 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25780 Mbit/s |
| Interface type | SFP28 |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3cc |
| Fiber ethernet cabling technology | 25GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Mean time between failures (MTBF) | 3292647 h |
| Brand compatibility | HPE |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.2 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 115 mm |
| Height | 31 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 115 mm |
| Package depth | 94 mm |
| Package height | 32 mm |
| Package weight | 200 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 340 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 350 mm |
| Products per master (outer) case | 100 pc(s) |
