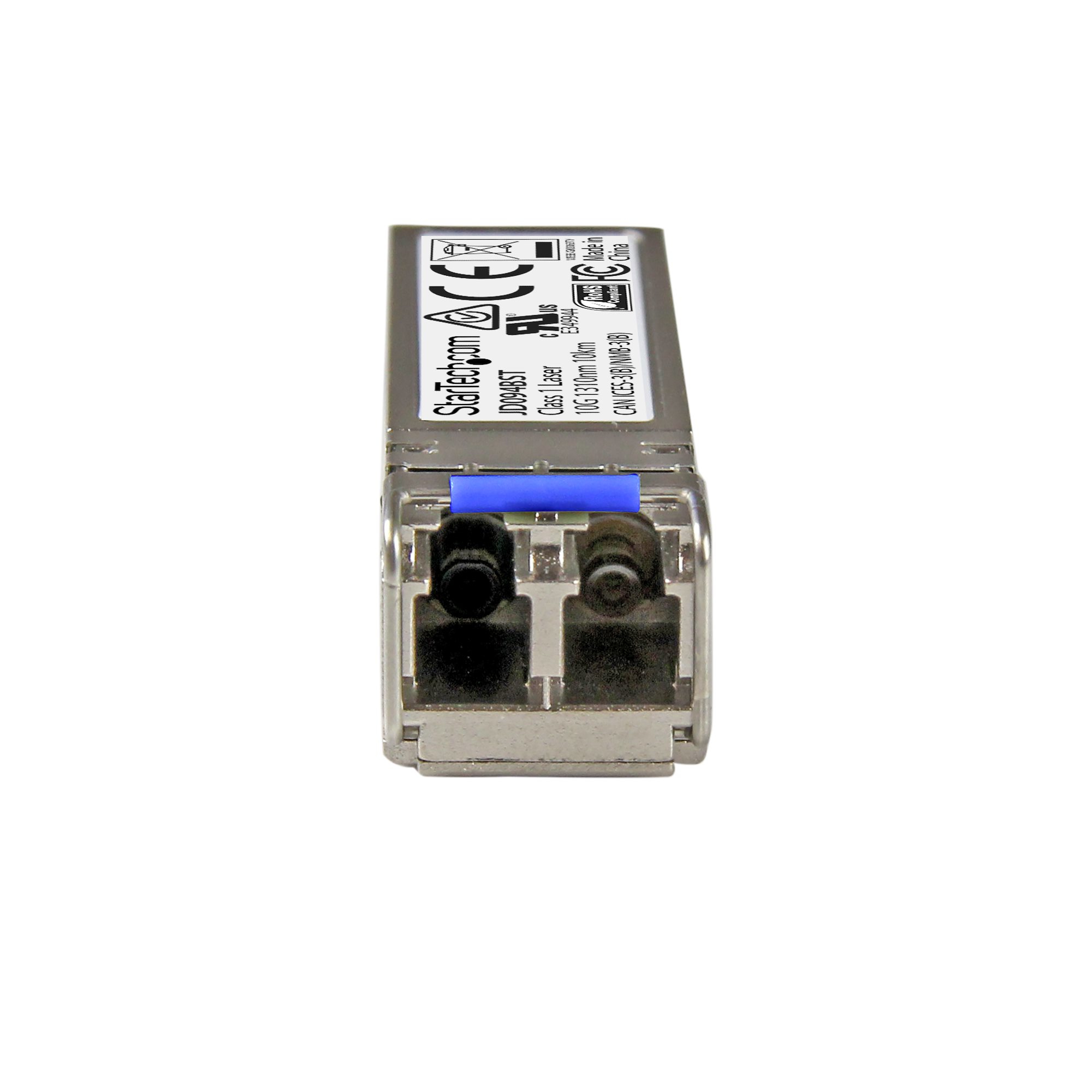

StarTech.com HPE JD094B Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HP

StarTech.com HPE JD094B Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HP

Model JD094BSTEAN 065030868501

36 specifications
  • Speed10000 Mbit/s
  • Weight20 g
  • ColourSilver
  • SFP transceiver typeFiber optic
  • Power consumption (typical)1.2 W
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Speed
10000 Mbit/s
Weight
20 g
Colour
Silver
SFP transceiver type
Fiber optic
Power consumption (typical)
1.2 W
Operating temperature (T-T)
0 - 70 °C
Brand
StarTech.com
Model
JD094BST
Part number
JD094BST
EAN / UPC
065030868501
Also known as
StarTech.com HPE JD094B Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HP

Specifications

36 specifications in 9 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
SFP transceiver standardLR
Maximum transfer distance10000 m
Wavelength1310 nm
Networking standardsIEEE 802.3ae
Duplex systemFull
Digital Diagnostics Monitoring (DDM)Yes

Features

Product colourSilver
Housing materialAluminium
Hot-swapYes
Mean time between failures (MTBF)2104865 h

Power

Power consumption (typical)1.2 W

Certificates

Compliance certificatesRoHS
CertificationCE, FCC, UR

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width13.9 mm
Depth58.4 mm
Height12.6 mm
Weight20 g

Packaging content

Quantity per pack1 pc(s)

Packaging data

Package width91 mm
Package depth114 mm
Package height33 mm
Package weight49 g

Logistics data

Master (outer) case width340 mm
Harmonized System (HS) code85369010
Master (outer) case length358 mm
Master (outer) case height211 mm
Products per master (outer) case55 pc(s)
Country of originChina
