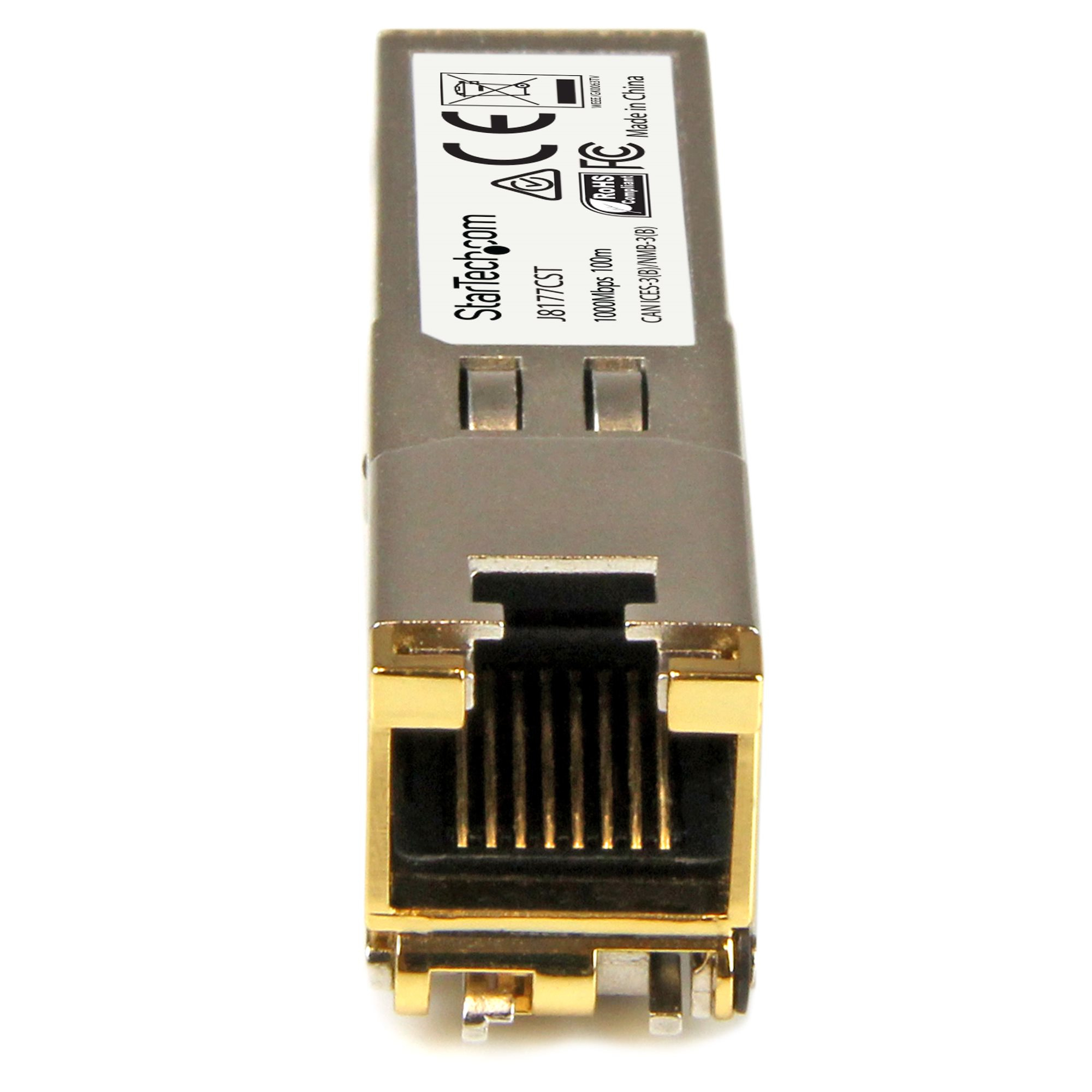

HPE J8177C Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 1810, 1820, 2530
Model J8177CSTEAN 065030865234
35 specifications
- Speed1000 Mbit/s
- Weight25 g
- ColourSilver
- SFP transceiver typeCopper
- Power consumption (typical)1.3 W
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 1000 Mbit/s
- Weight
- 25 g
- Colour
- Silver
- SFP transceiver type
- Copper
- Power consumption (typical)
- 1.3 W
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- J8177CST
- Part number
- J8177CST
- EAN / UPC
- 065030865234, 5057103099290
- Also known as
- StarTech.com HPE J8177C Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 1810, 1820, 2530
Specifications
35 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Fiber optic connector | MiniGBIC |
| Maximum transfer distance | 100 m |
| Networking standards | IEEE 802.3ab |
| Ethernet LAN (RJ-45) ports | 1 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4655371 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.3 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 68 mm |
| Height | 14 mm |
| Weight | 25 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 93 mm |
| Package depth | 112 mm |
| Package height | 33 mm |
| Package weight | 53 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 355 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 340 mm |
| Products per master (outer) case | 100 pc(s) |
| Country of origin | China |
