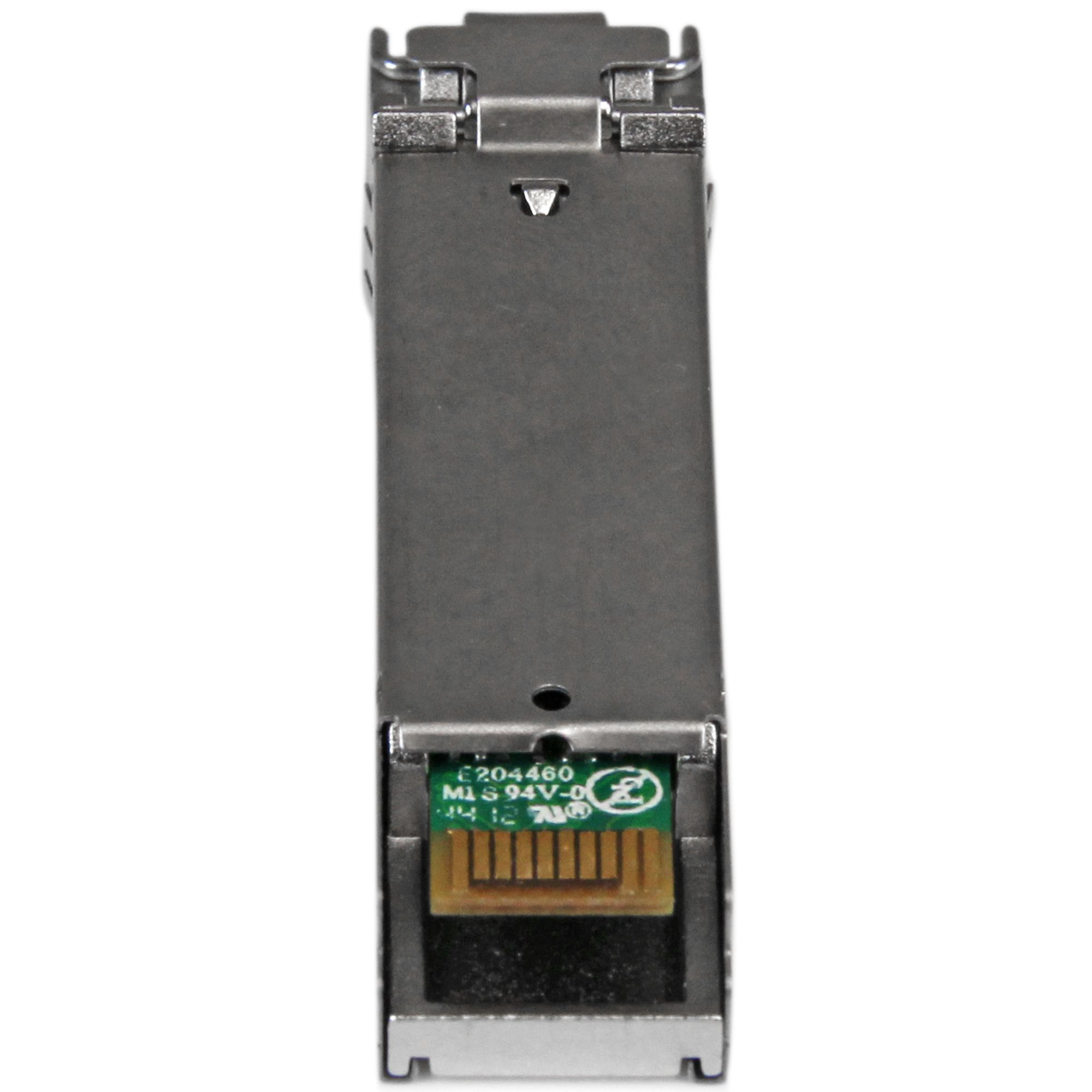

StarTech.com HPE J4858C Compatible… J4858CST Specs

Overview

Speed: 1250 Mbit/s
Weight: 18 g
Colour: Silver
SFP transceiver type: Fiber optic
Power consumption (typical): 1 W
Operating temperature (T-T): 0 - 70 °C

Brand: StarTech.com
Category: Network Transceiver Module
Model: J4858CST
Part number: J4858CST
EAN / UPC: 065030865289, 5057103099313
Also known as: StarTech.com HPE J4858C Compatible SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM HPE 140

Specifications

37 specifications in 9 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC
SFP transceiver standard	SX
Maximum transfer distance	550 m
Wavelength	850 nm
Networking standards	IEEE 802.3z
Duplex system	Full, Half
Digital Diagnostics Monitoring (DDM)	Yes
Wavelength-division multiplexing (WDM)	No

Features

Specification	Value
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Mean time between failures (MTBF)	3381761 h

Power

Specification	Value
Power consumption (typical)	1 W

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CE, FCC, UL

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	30 - 75%

Weight & dimensions

Specification	Value
Width	14 mm
Depth	57 mm
Height	13 mm
Weight	18 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
Package width	93 mm
Package depth	114 mm
Package height	33 mm
Package weight	46 g

Logistics data

Specification	Value
Master (outer) case width	340 mm
Harmonized System (HS) code	85369010
Master (outer) case length	430 mm
Master (outer) case height	352 mm
Products per master (outer) case	100 pc(s)
Country of origin	China
