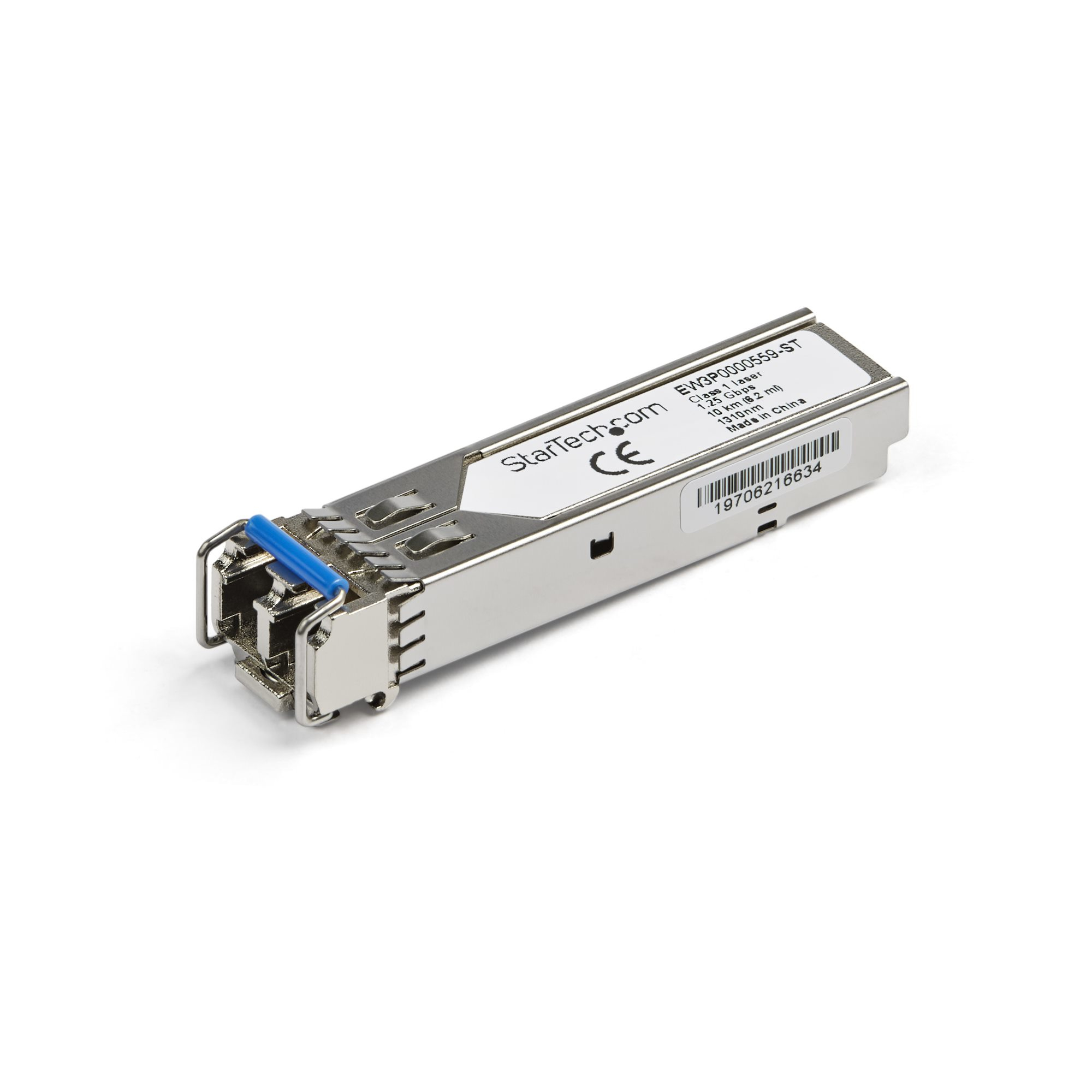

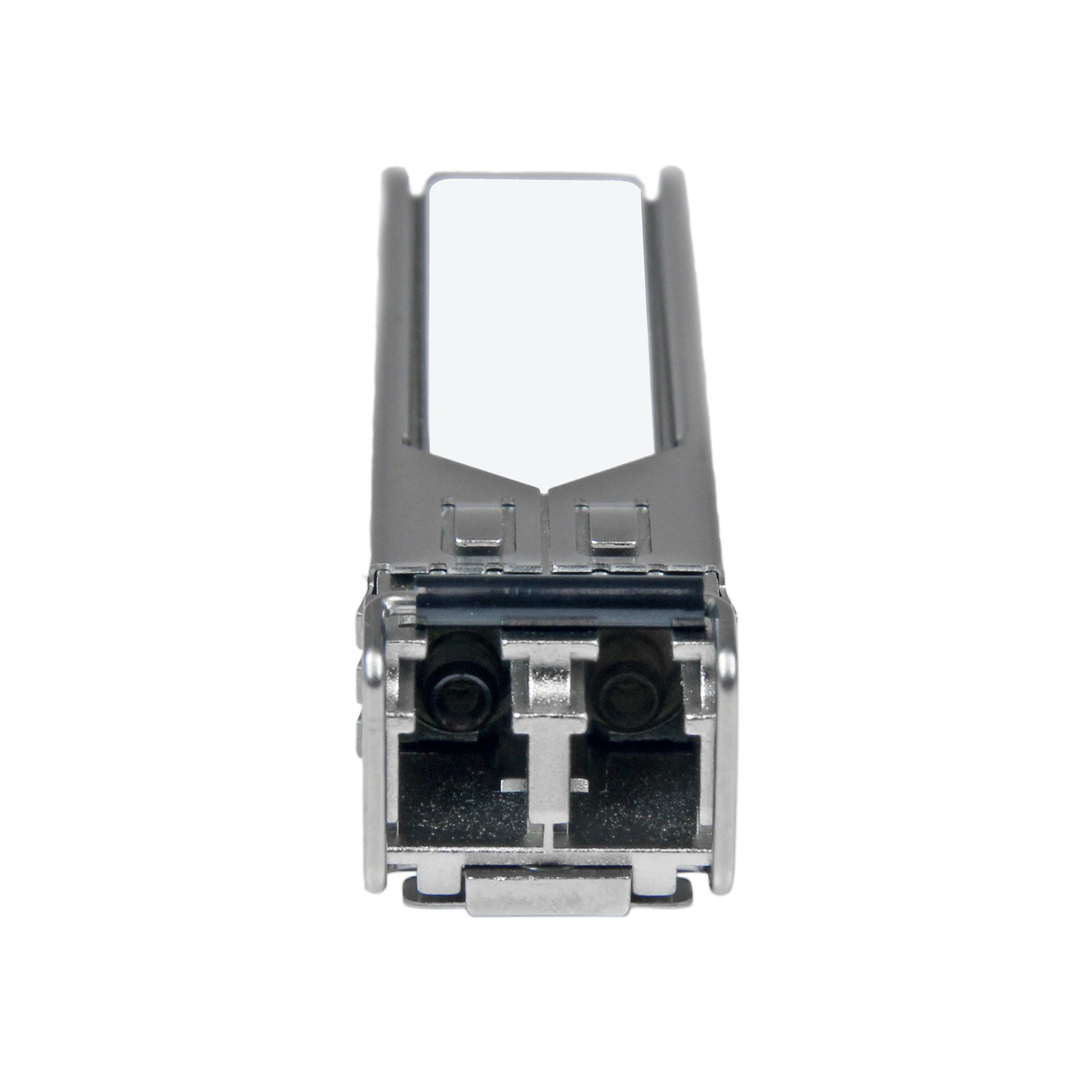

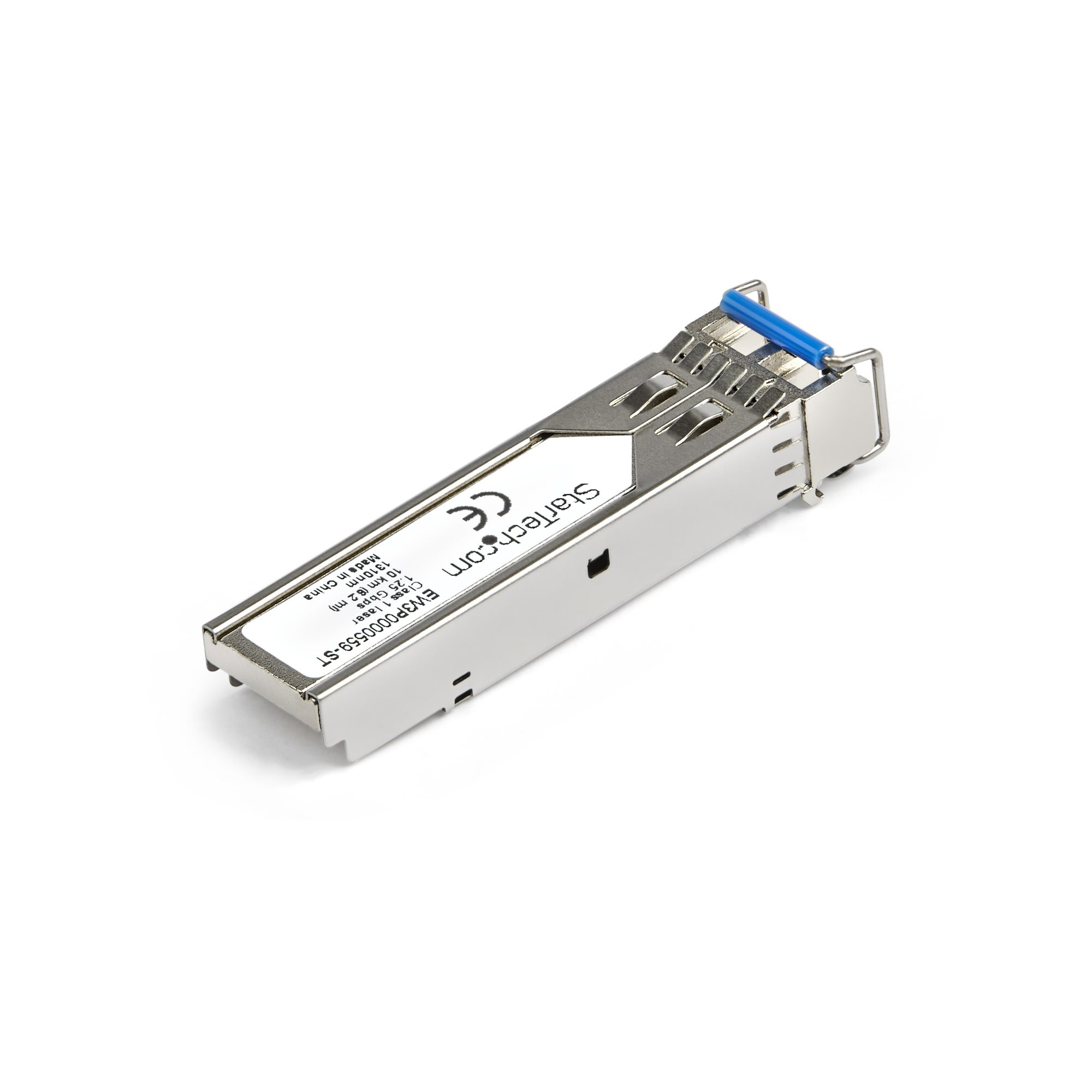

Citrix EW3P0000559 Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm
Model EW3P0000559-STEAN 065030885676
31 specifications
- Speed1250 Mbit/s
- Weight18 g
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)1.3 W
- Width56.6 mm
Overview
- Speed
- 1250 Mbit/s
- Weight
- 18 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1.3 W
- Width
- 56.6 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- EW3P0000559-ST
- Part number
- EW3P0000559-ST
- EAN / UPC
- 065030885676
- Also known as
- StarTech.com Citrix EW3P0000559 Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm
Specifications
31 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber ethernet cabling technology | 1000BASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 634210013 h |
| Brand compatibility | Citrix |
| Compatible products | EW3P0000559 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56.6 mm |
| Depth | 13.7 mm |
| Height | 12.5 mm |
| Weight | 18 g |

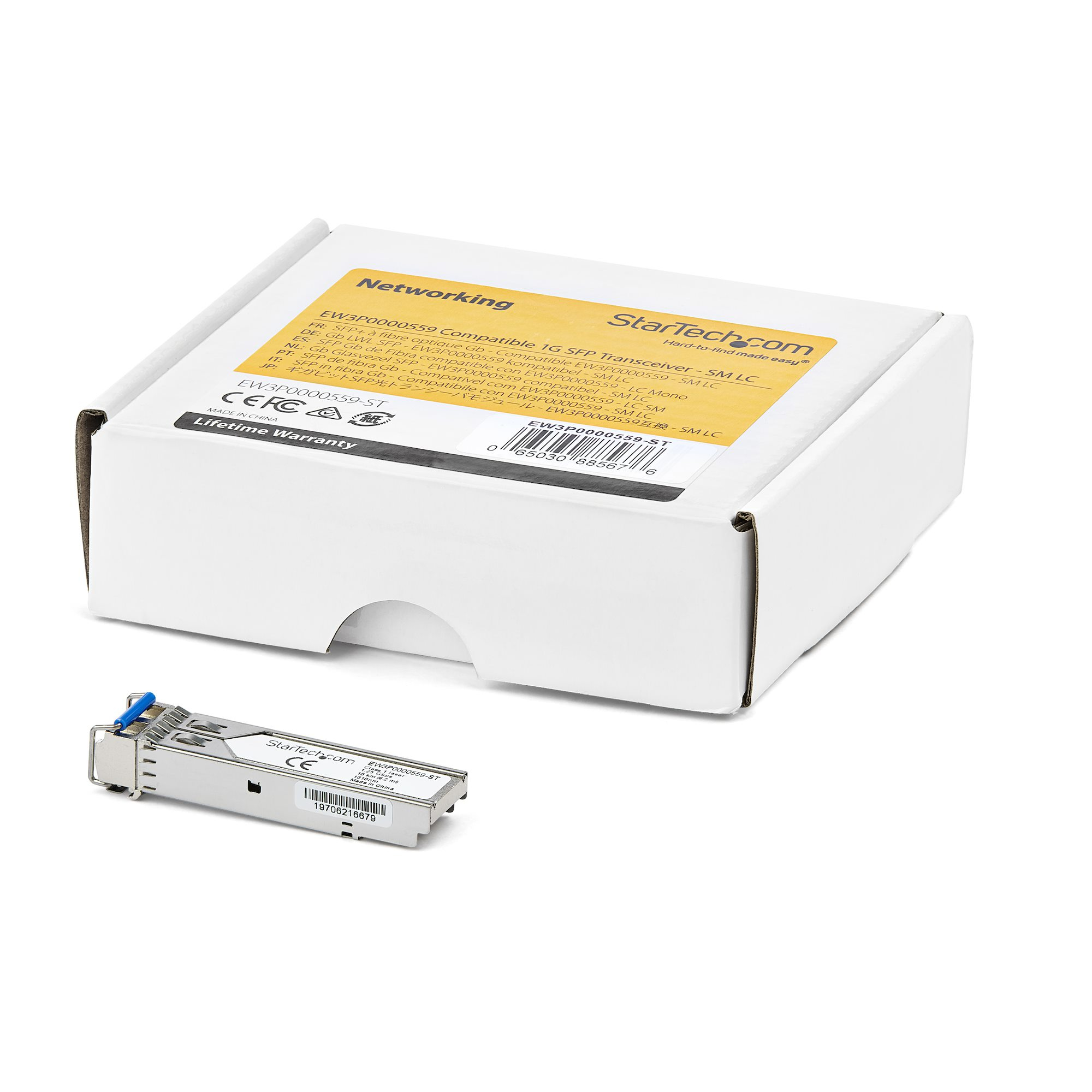

Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 90 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 115 mm |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
