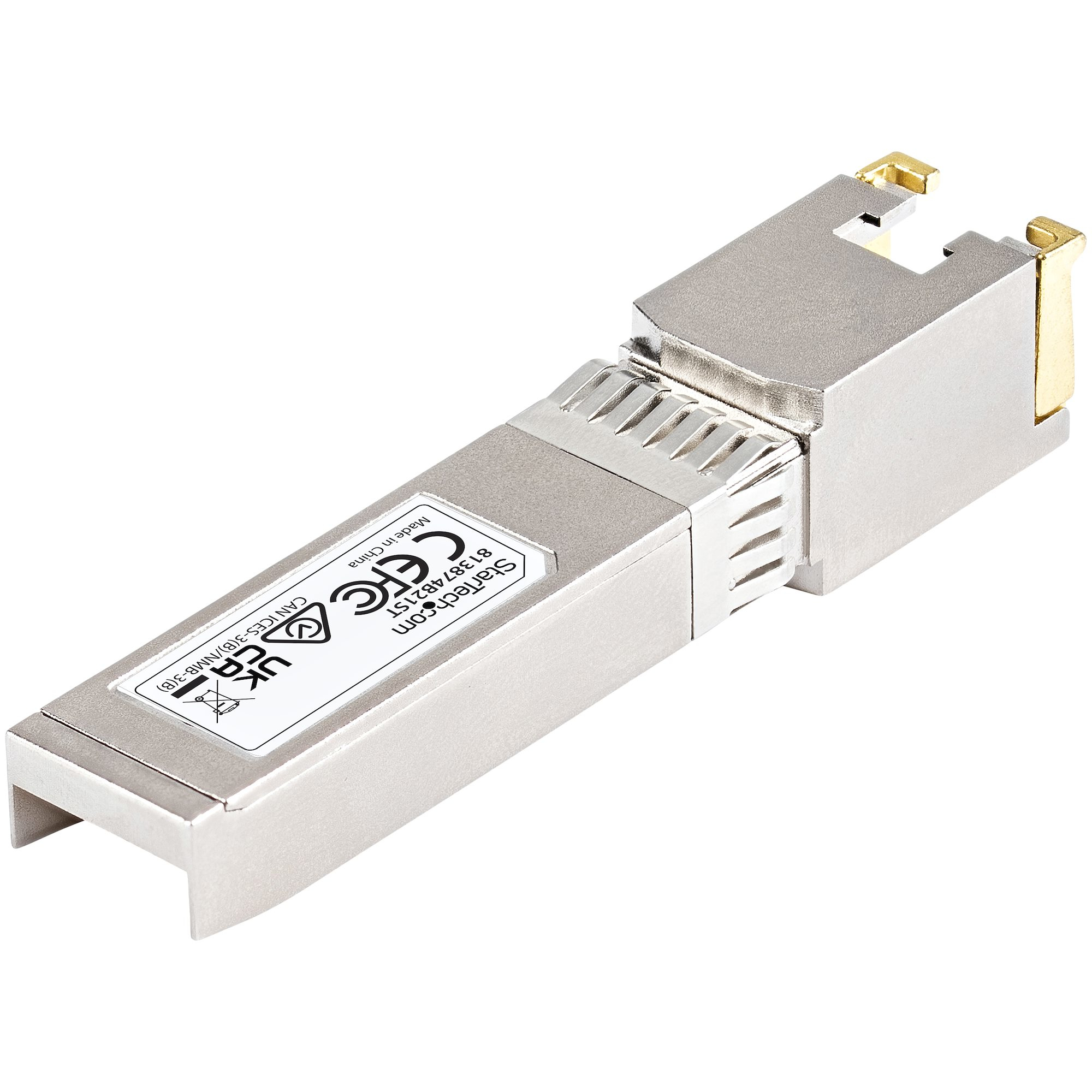

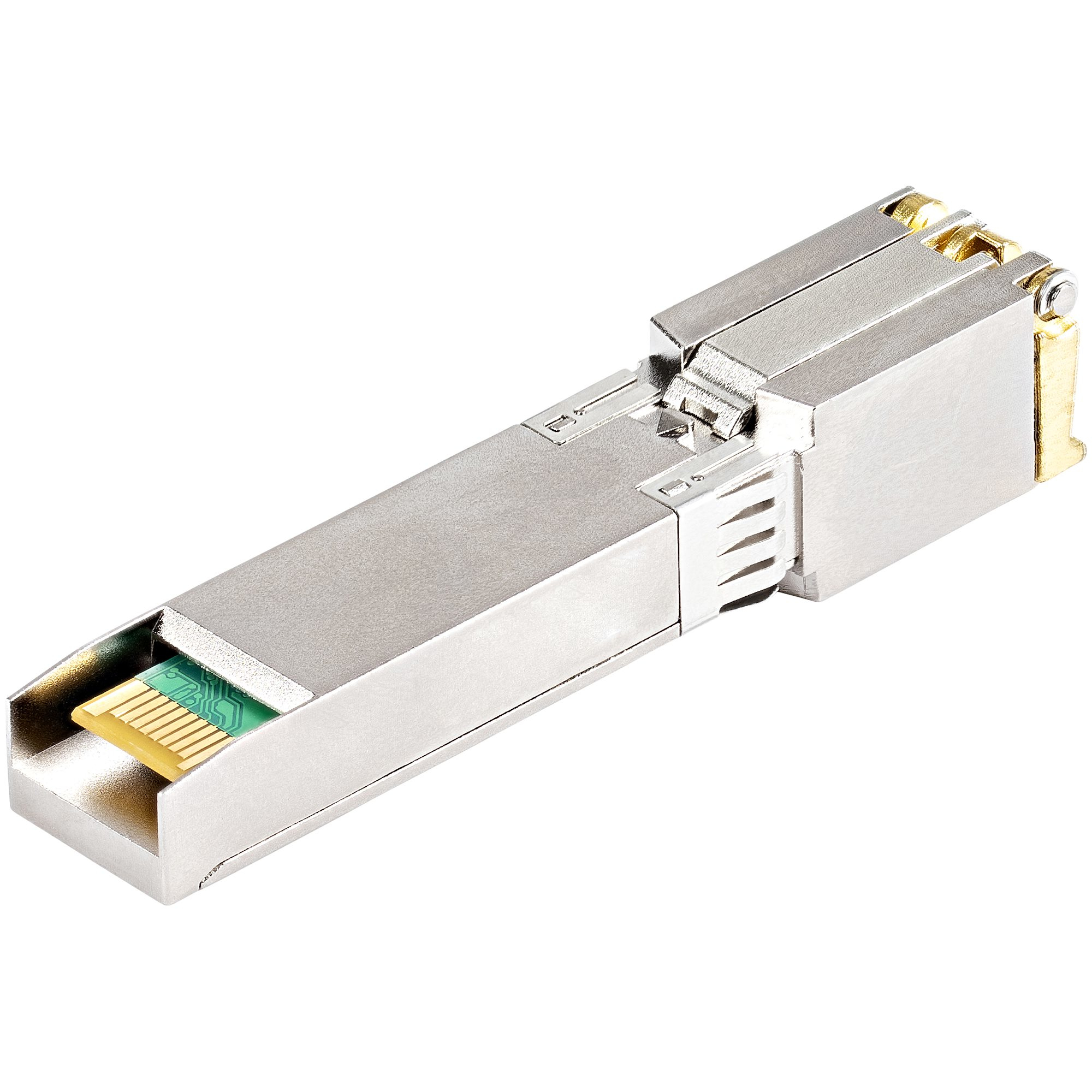

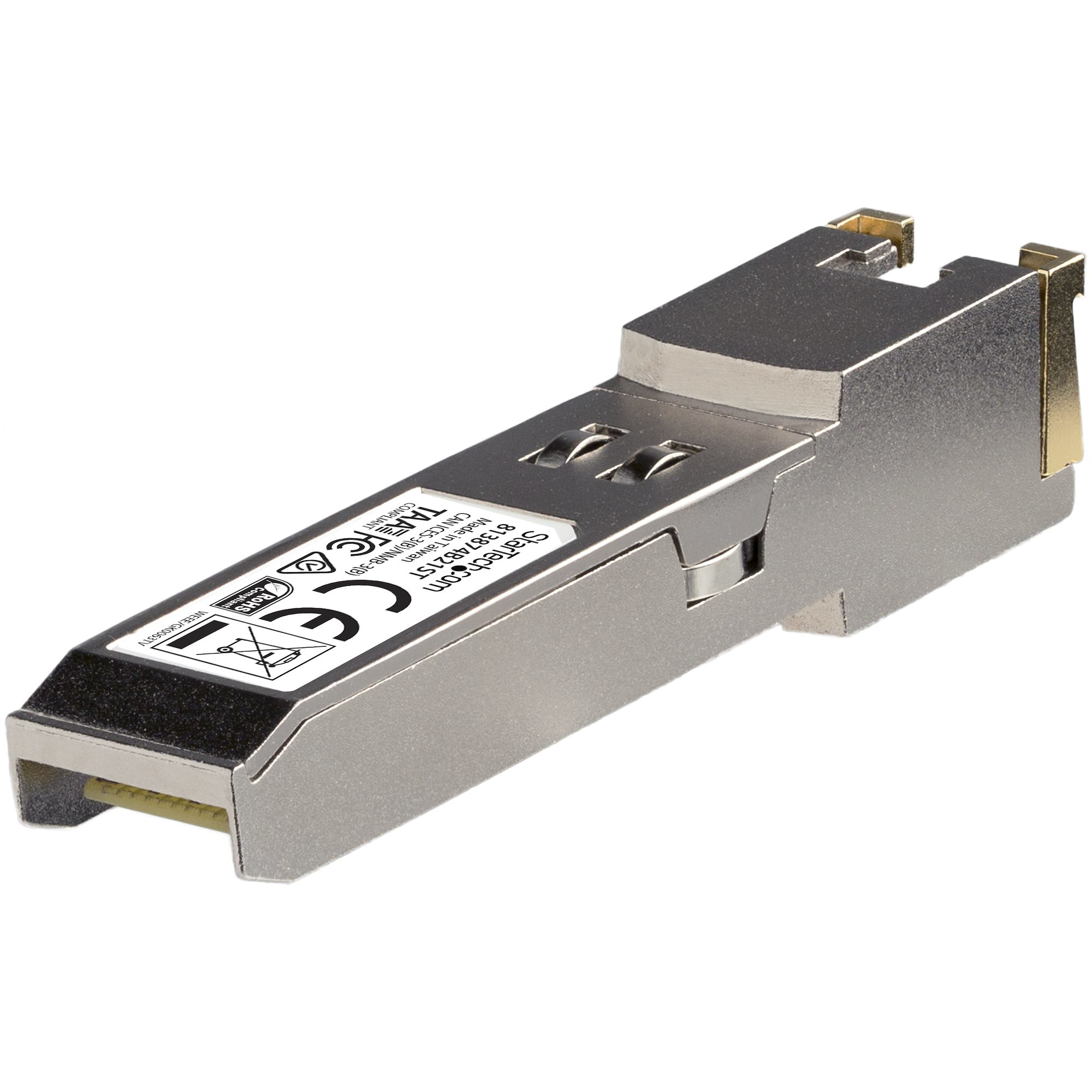

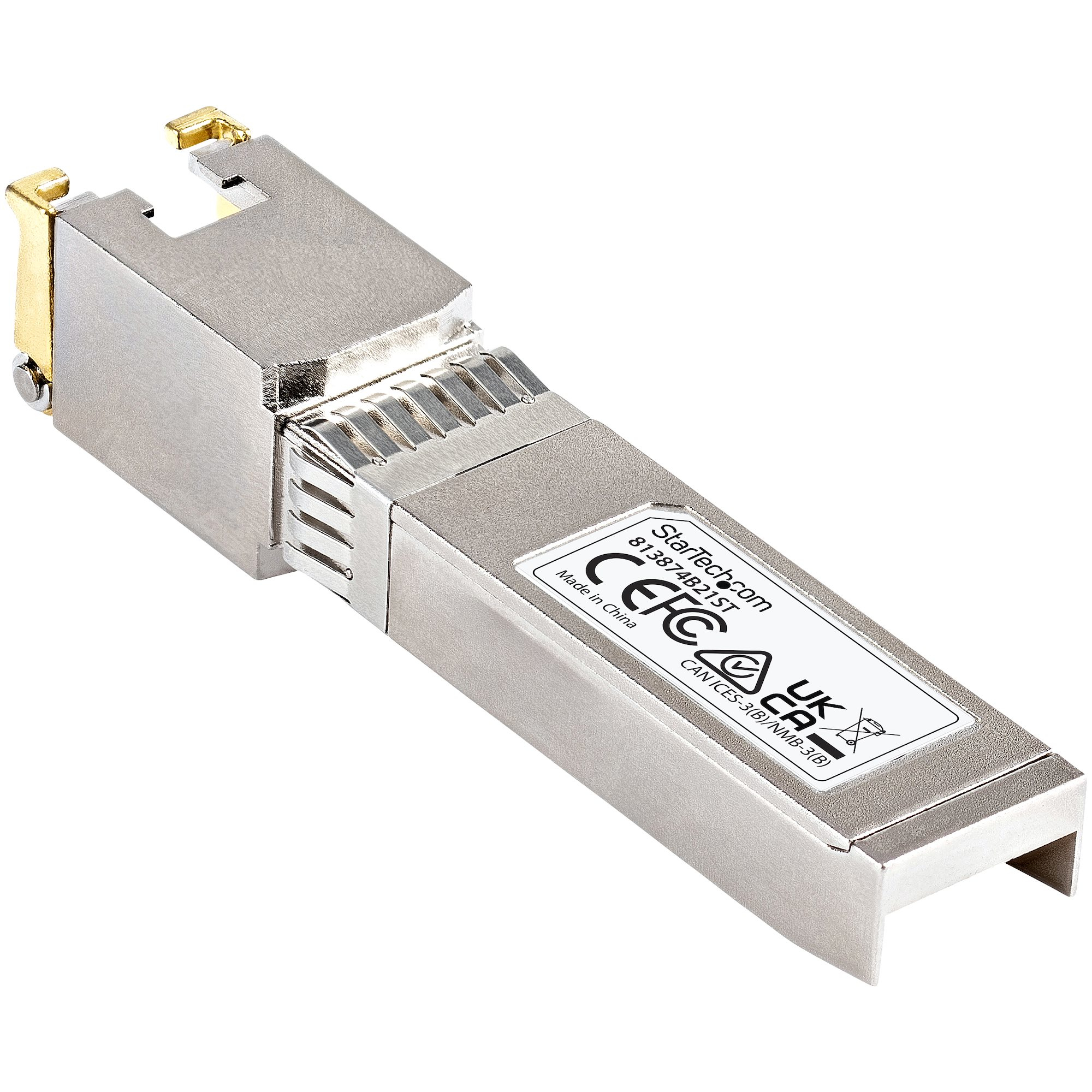

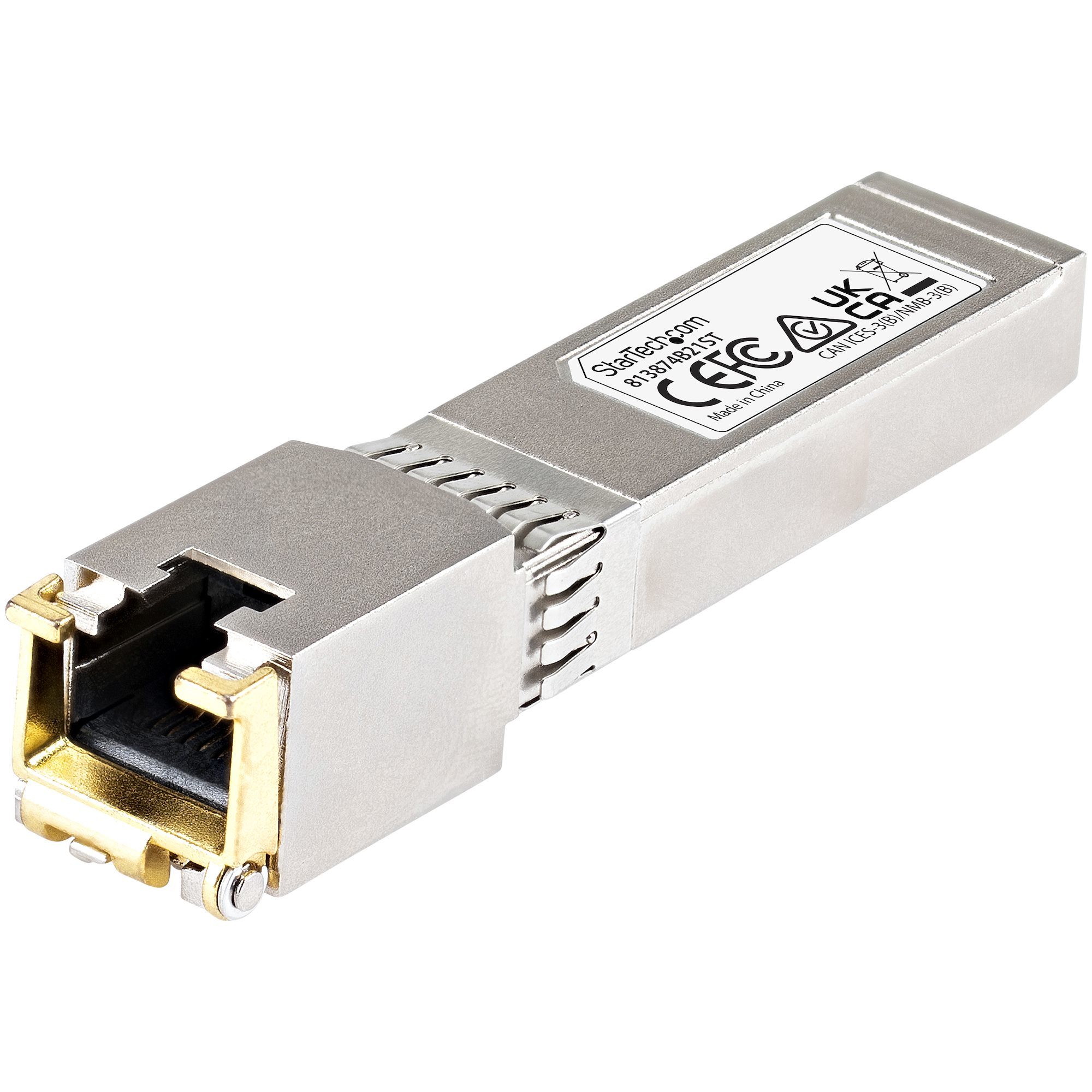

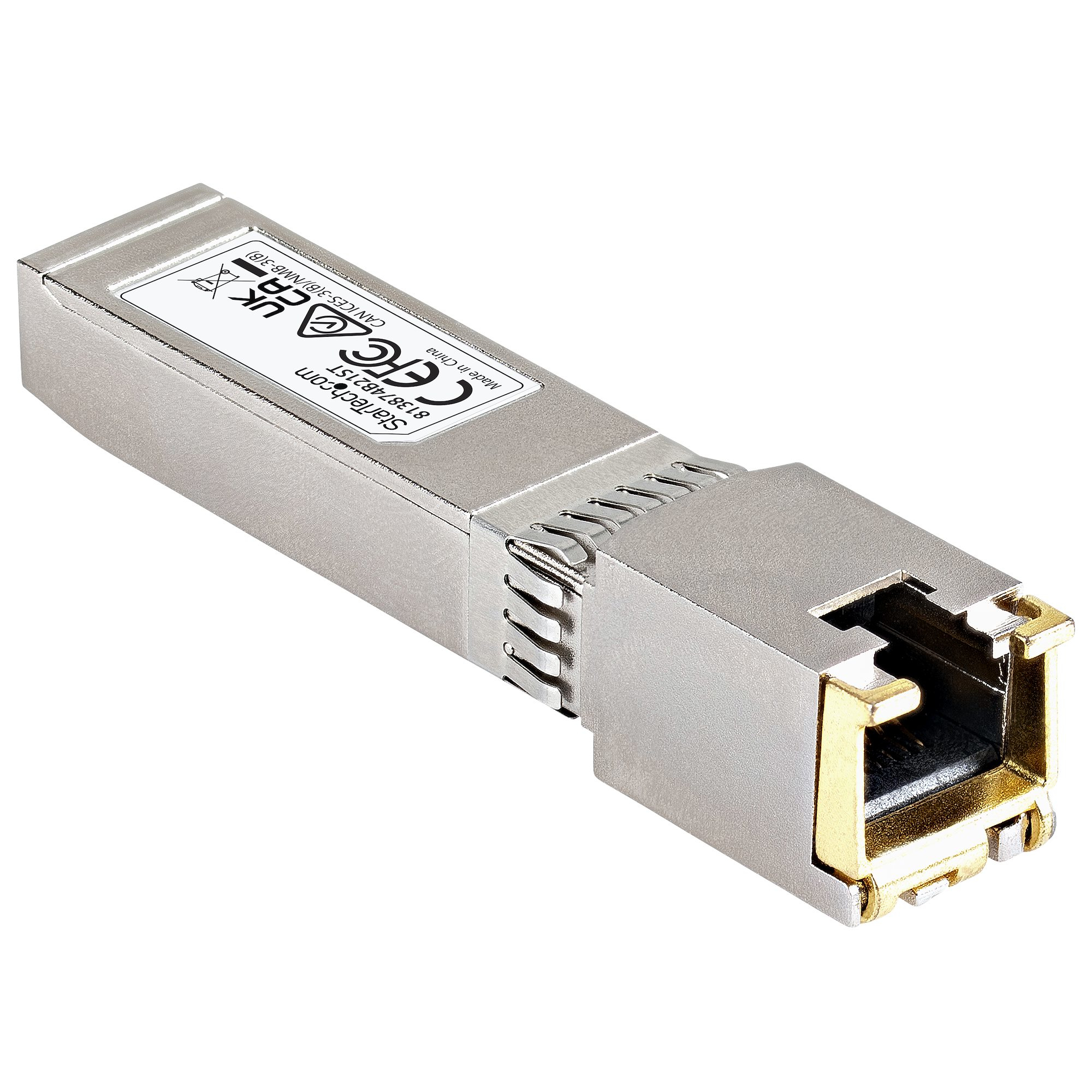

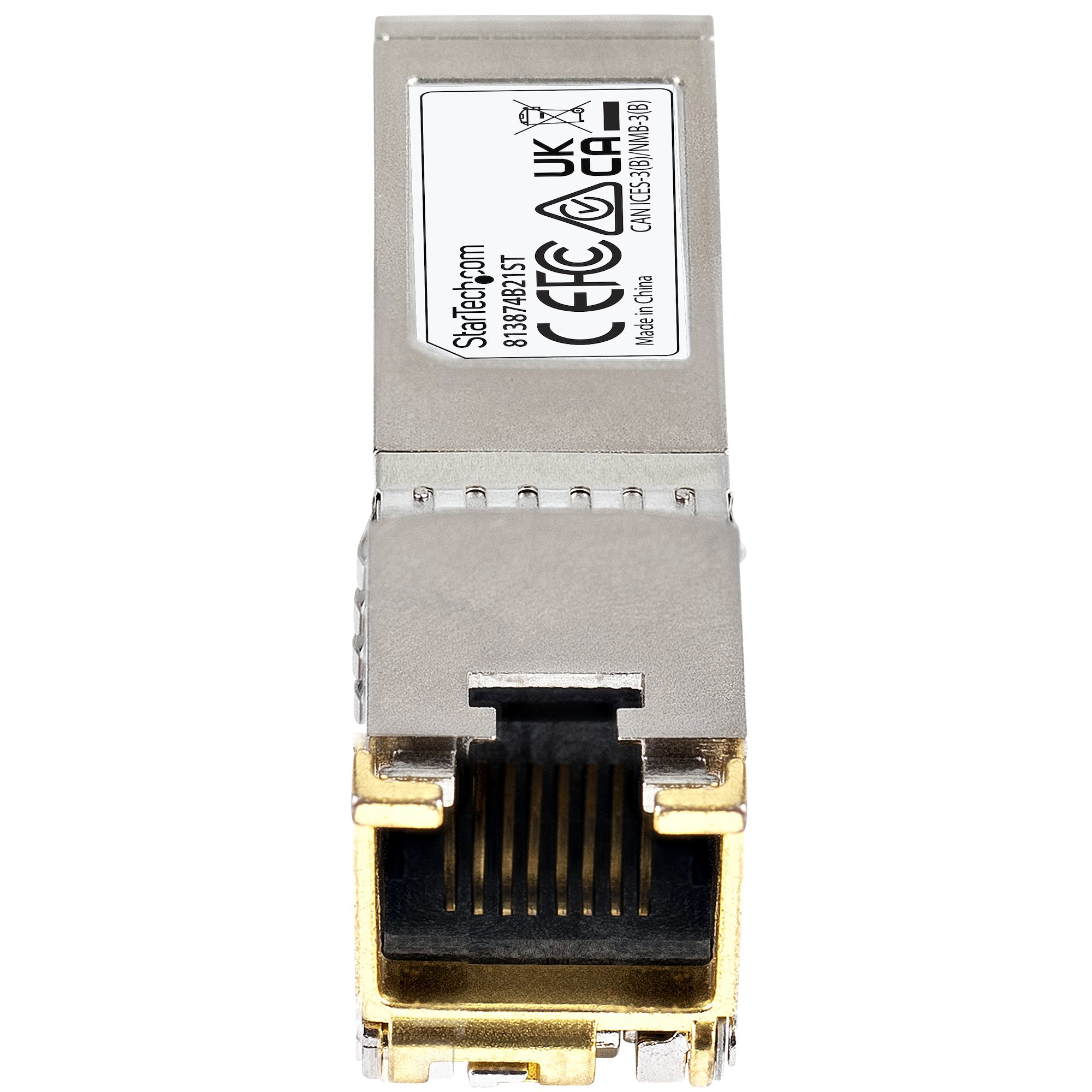

HPE 813874-B21 Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE BladeSystem, c-Class
Model 813874B21STEAN 065030880305
34 specifications
- Speed10000 Mbit/s
- Weight58 g
- ColourSilver
- SFP transceiver typeCopper
- Power consumption (typical)2.3 W
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 10000 Mbit/s
- Weight
- 58 g
- Colour
- Silver
- SFP transceiver type
- Copper
- Power consumption (typical)
- 2.3 W
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- 813874B21ST
- Part number
- 813874B21ST
- EAN / UPC
- 065030880305
- Also known as
- StarTech.com HPE 813874-B21 Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE BladeSystem, c-Class
Specifications
34 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Maximum transfer distance | 30 m |
| Networking standards | IEEE 802.3an |
| Ethernet LAN (RJ-45) ports | 1 |
| Auto MDI/MDI-X | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Zinc steel |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4598430 h |
| Brand compatibility | HP |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.3 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.4 mm |
| Depth | 69.8 mm |
| Height | 13.8 mm |
| Weight | 58 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 120 mm |
| Package depth | 76 mm |
| Package height | 34 mm |
| Package weight | 31 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 340 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 638 mm |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 150 pc(s) |
| Country of origin | China |
