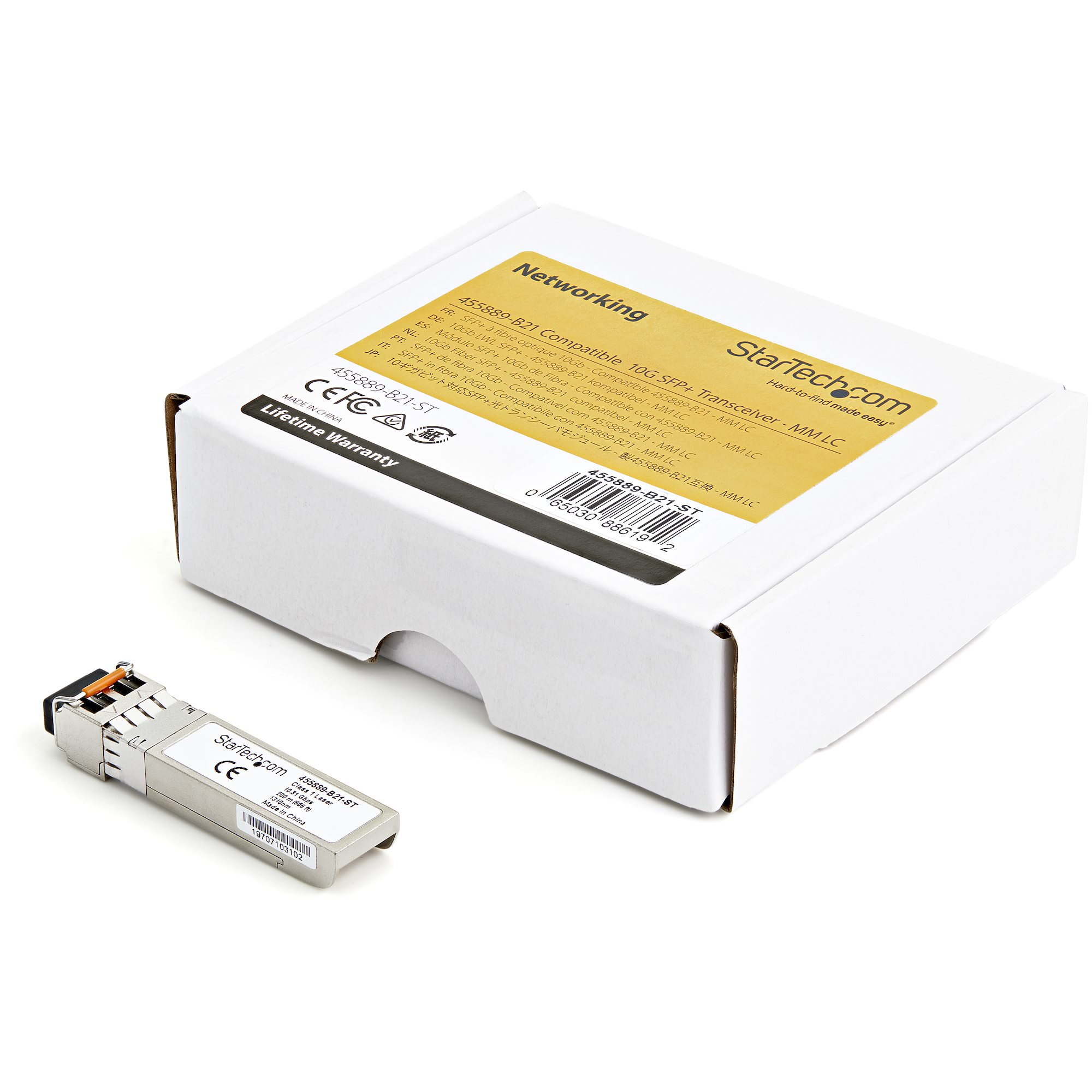

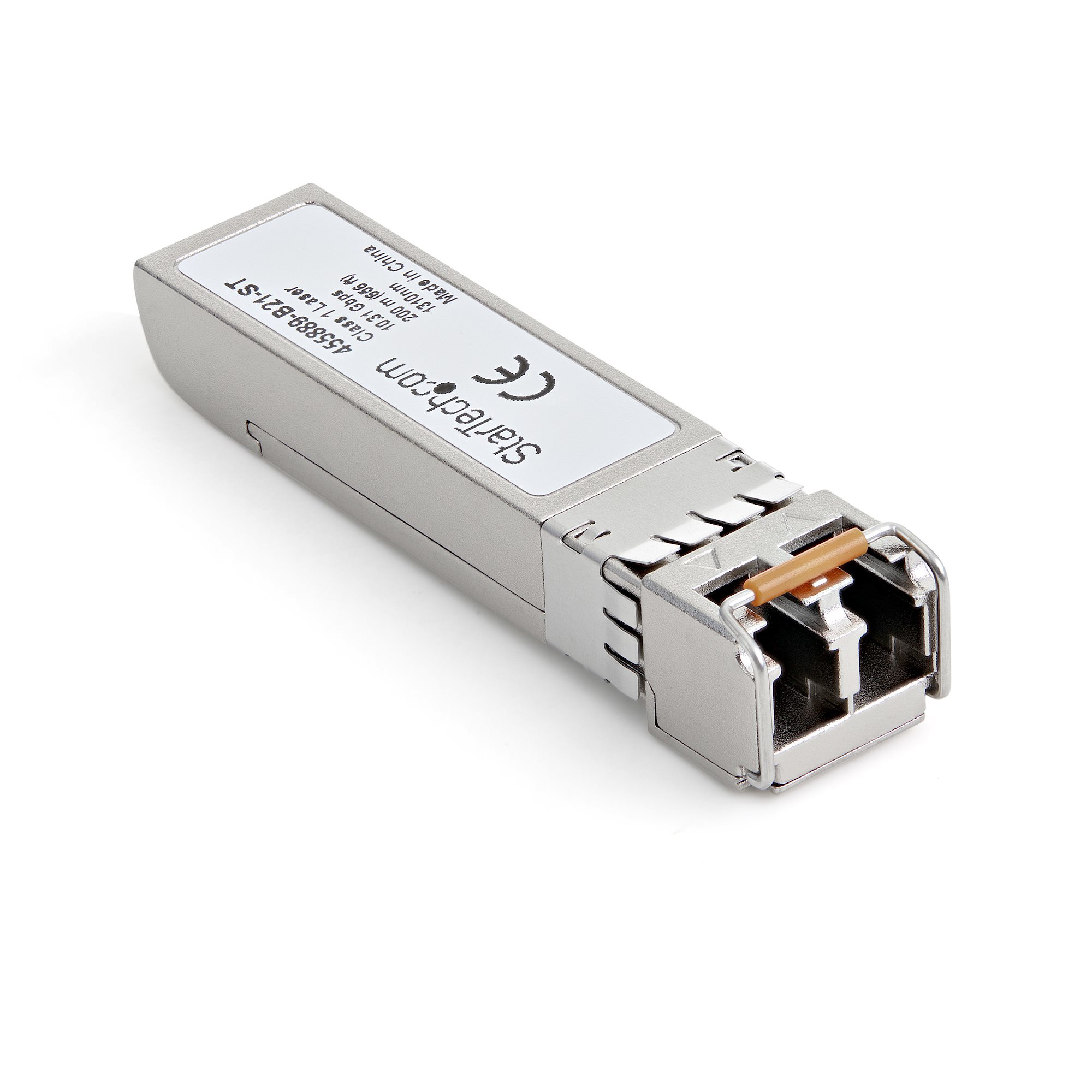

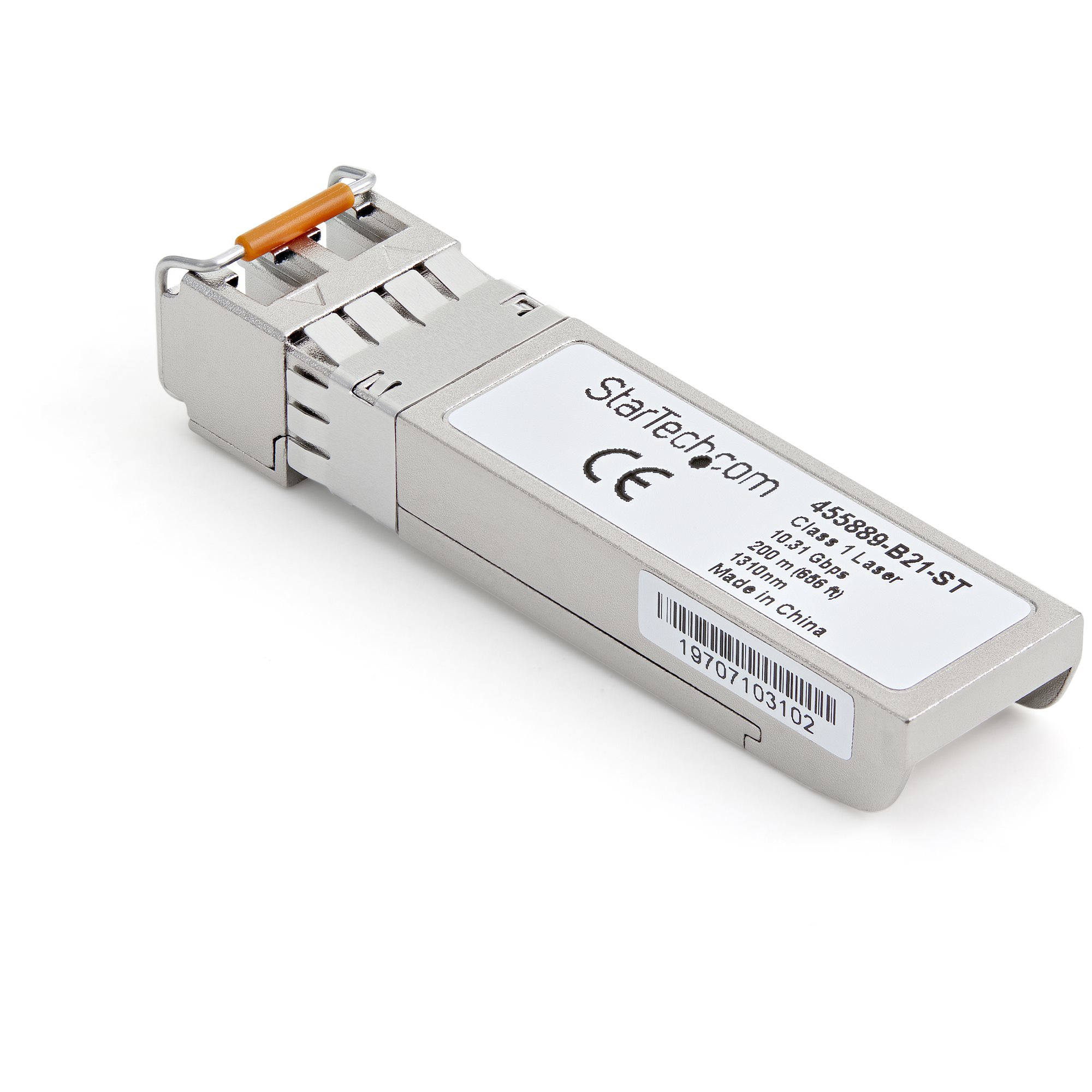

HPE 455889-B21 Compatible SFP+ Module - 10GBASE-LRM - 10GbE Multi Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 200m - 1310nm - DD
Model 455889-B21-STEAN 065030886192
29 specifications
- Speed10000 Mbit/s
- Weight21 g
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)1 W
- Width58.4 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 21 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1 W
- Width
- 58.4 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- 455889-B21-ST
- Part number
- 455889-B21-ST
- EAN / UPC
- 065030886192
- Also known as
- StarTech.com HPE 455889-B21 Compatible SFP+ Module - 10GBASE-LRM - 10GbE Multi Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 200m - 1310nm - DD
Specifications
29 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LRM |
| Maximum transfer distance | 200 m |
| Wavelength | 1310 nm |
| Fiber ethernet cabling technology | 10GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 145858878 h |
| Brand compatibility | HP |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 13.7 mm |
| Weight | 21 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 90 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 115 mm |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
