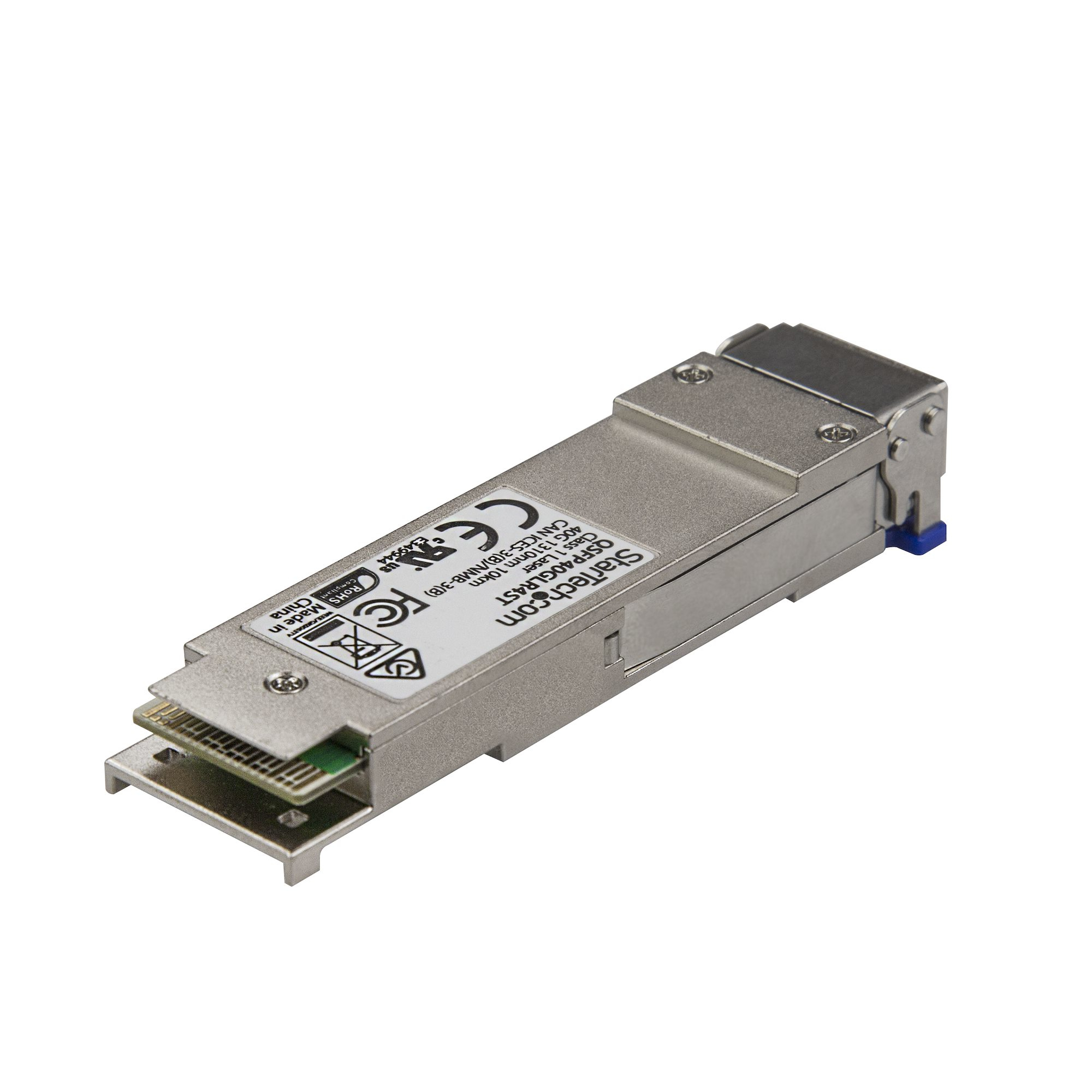

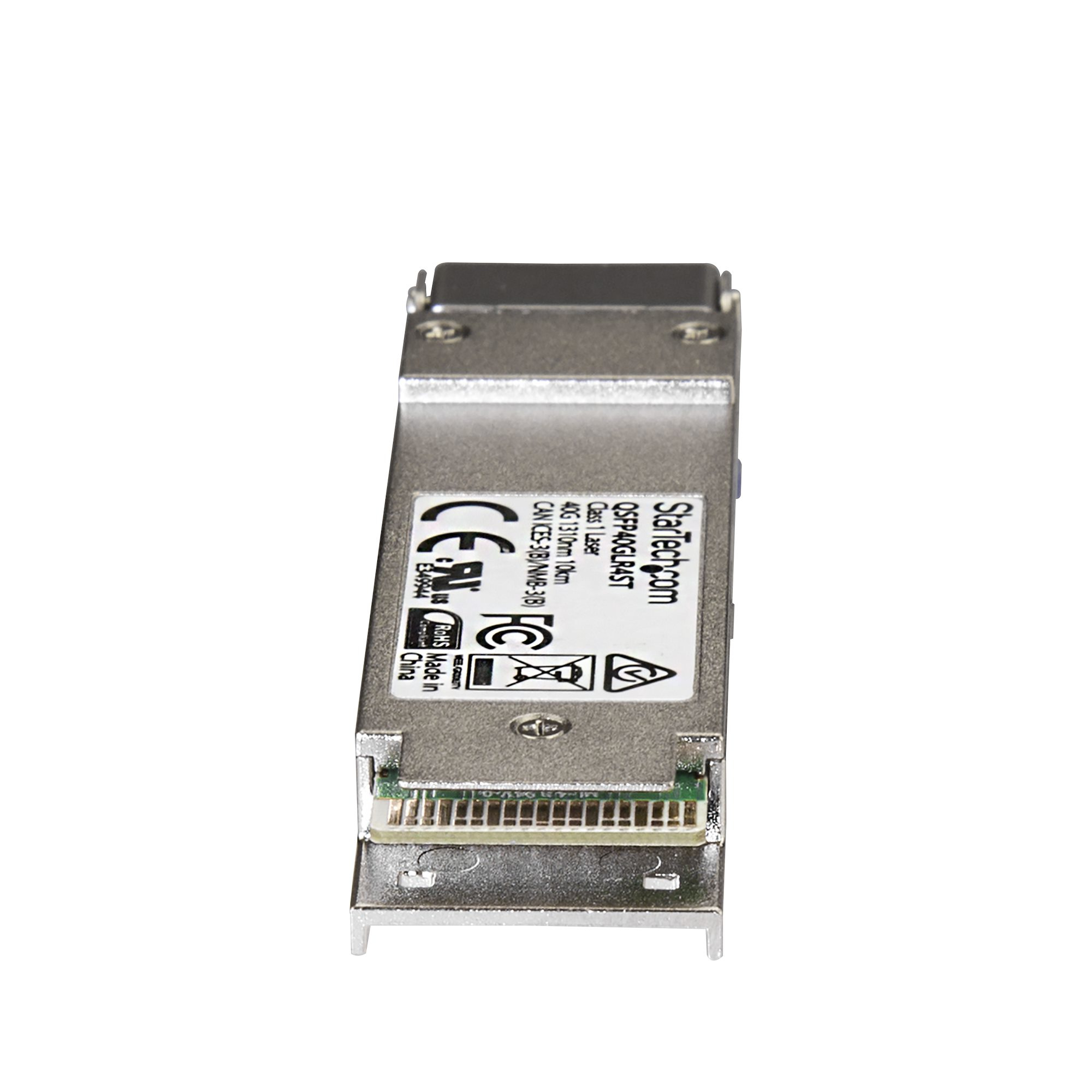

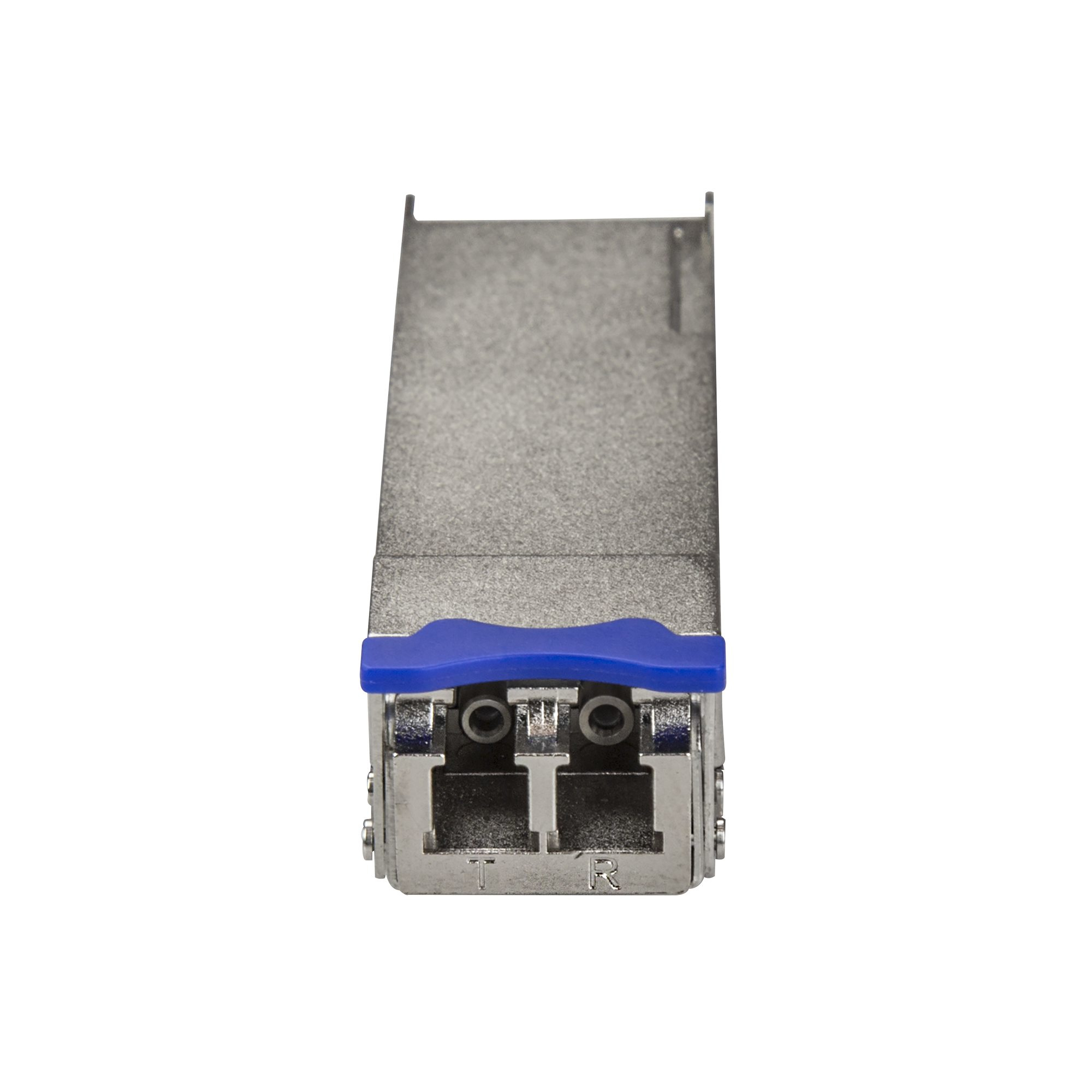

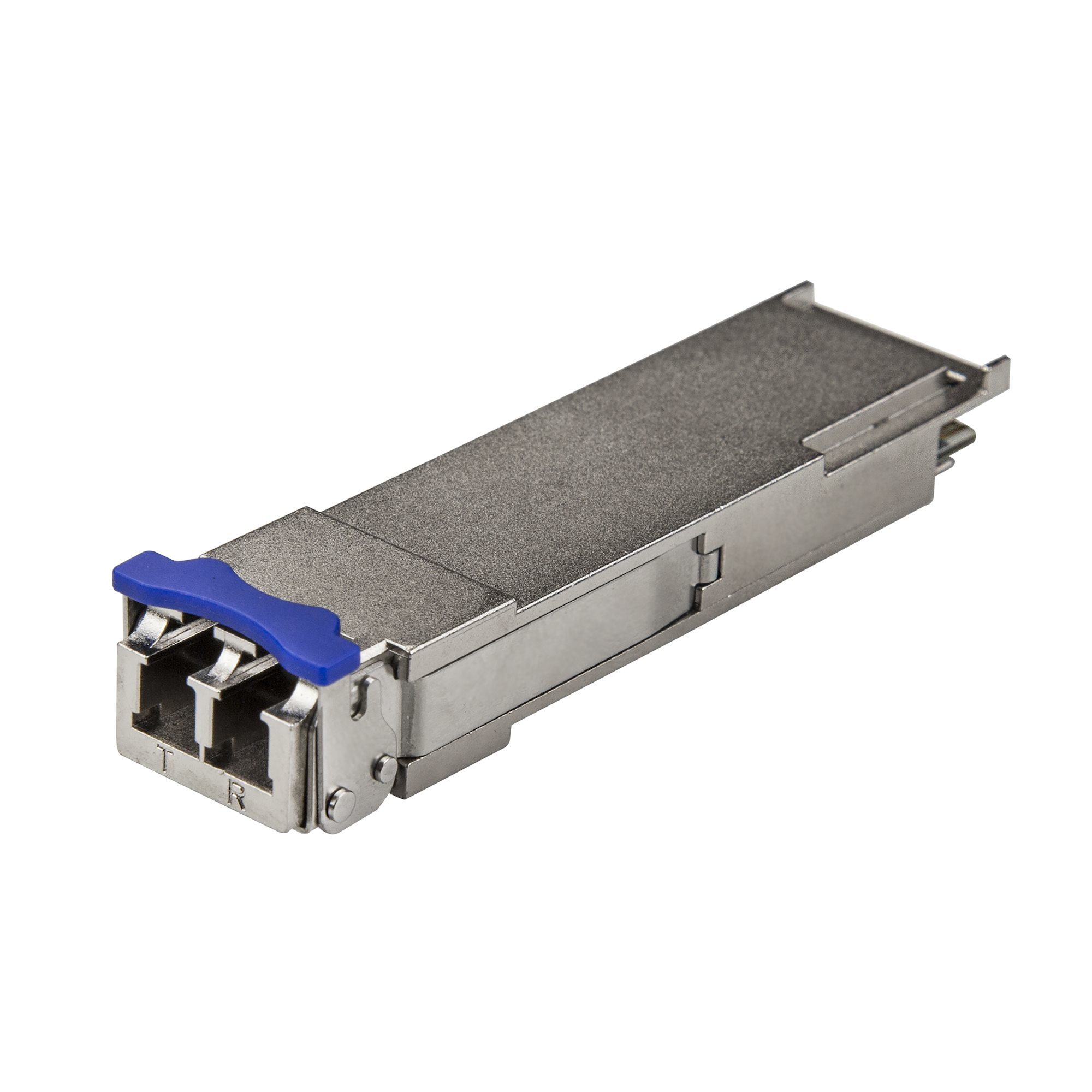

Extreme Networks 10320 Compatible QSFP+ Module - 40GBASE-LR4 - Single Mode Fiber (SMF) - 40GE Gigabit Ethernet QSFP+ - LC 6.2 mi - 1270nm to 1330nm
Model 10320-STEAN 065030886871
34 specifications
- Speed41250 Mbit/s
- Weight44 g
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)2.5 W
- Width18.3 mm
Overview
- Speed
- 41250 Mbit/s
- Weight
- 44 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 2.5 W
- Width
- 18.3 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- 10320-ST
- Part number
- 10320-ST
- EAN / UPC
- 065030886871
- Also known as
- StarTech.com Extreme Networks 10320 Compatible QSFP+ Module - 40GBASE-LR4 - Single Mode Fiber (SMF) - 40GE Gigabit Ethernet QSFP+ - LC 6.2 mi - 1270nm to 1330nm
Specifications
34 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 41250 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Tx wavelength (min) | 1270 nm |
| Tx wavelength (max) | 1330 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | No |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 95832026 h |
| Brand compatibility | Extreme Networks |
| Compatible products | 10320 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.5 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18.3 mm |
| Depth | 72 mm |
| Height | 13 mm |
| Weight | 44 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 340 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 350 mm |
| Products per master (outer) case | 100 pc(s) |
