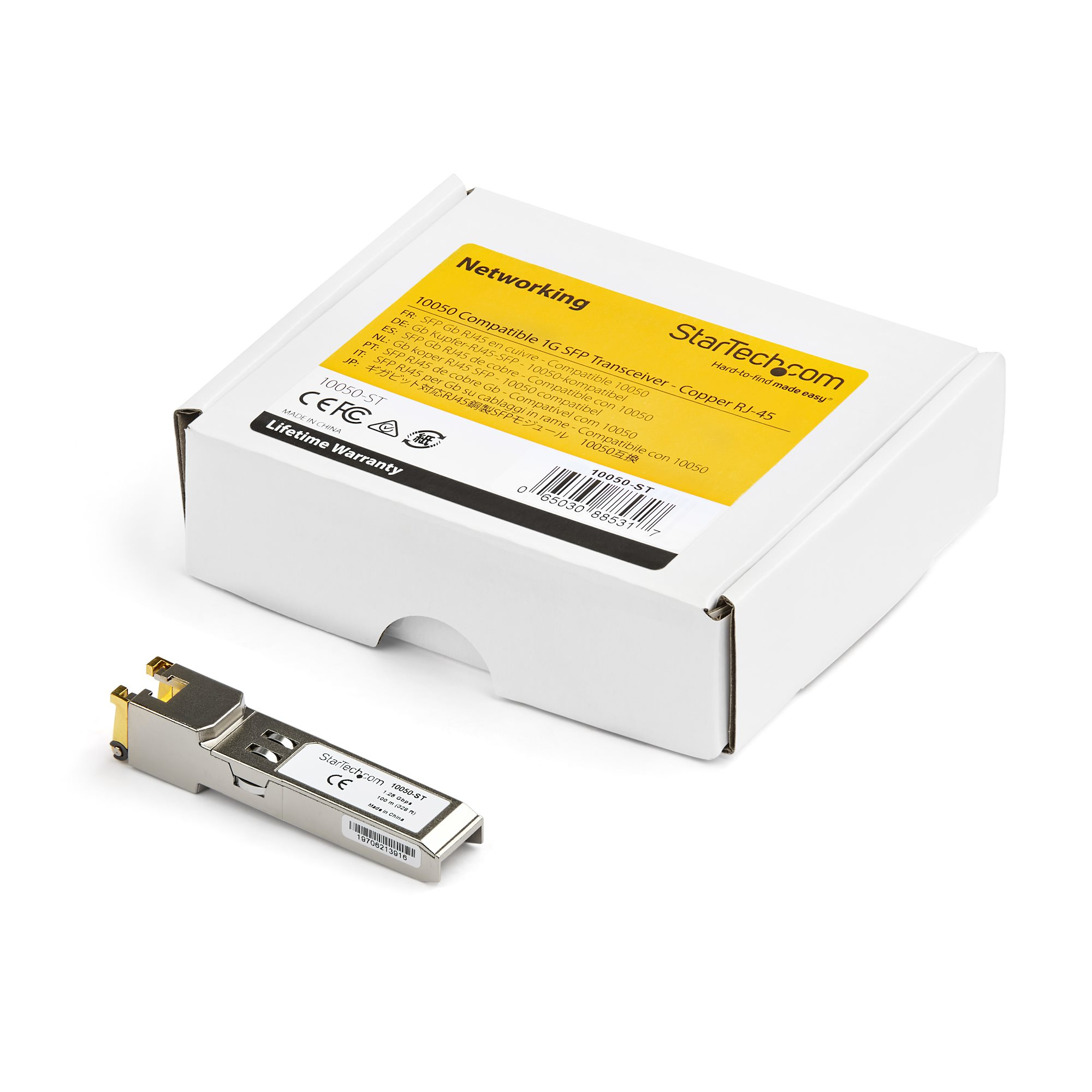

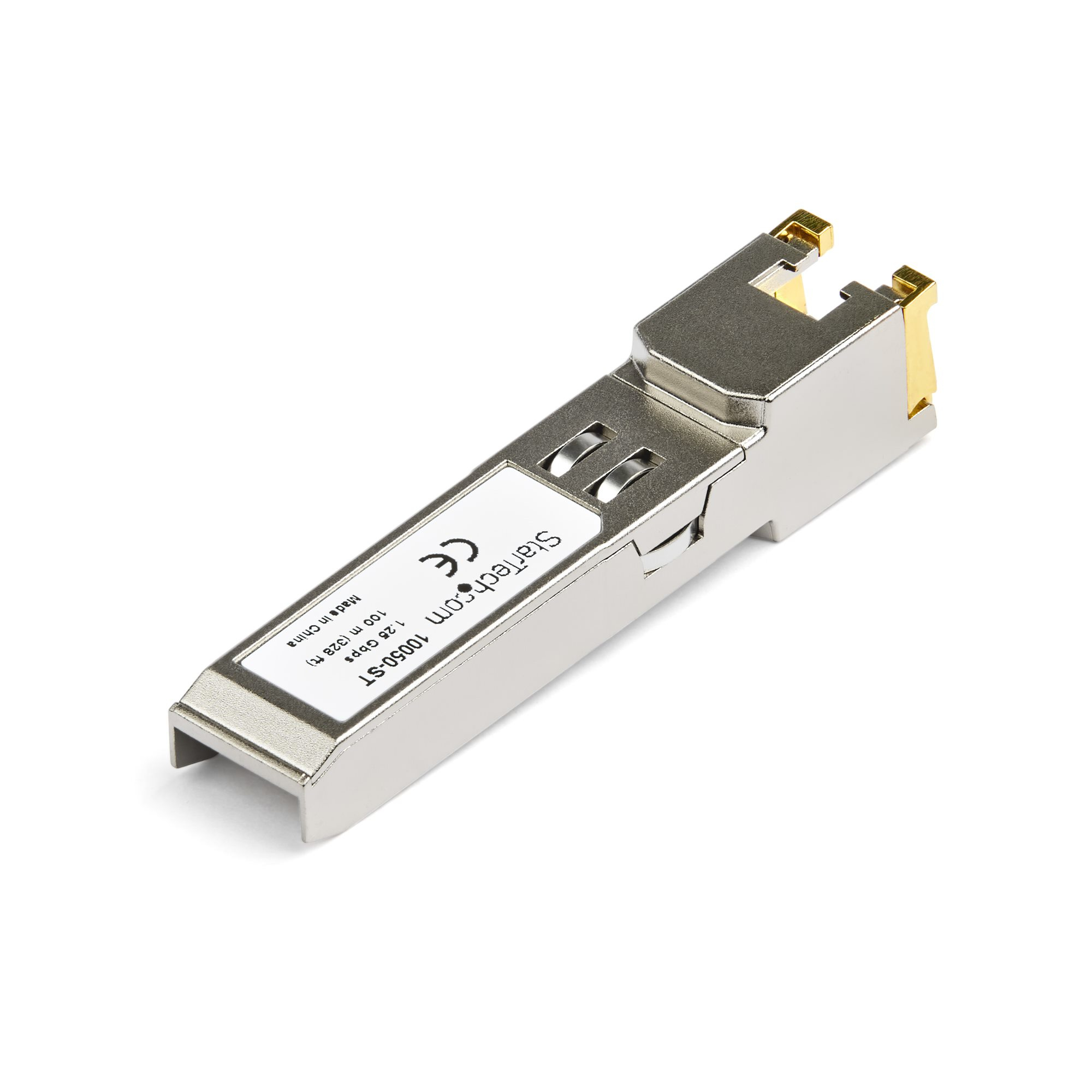

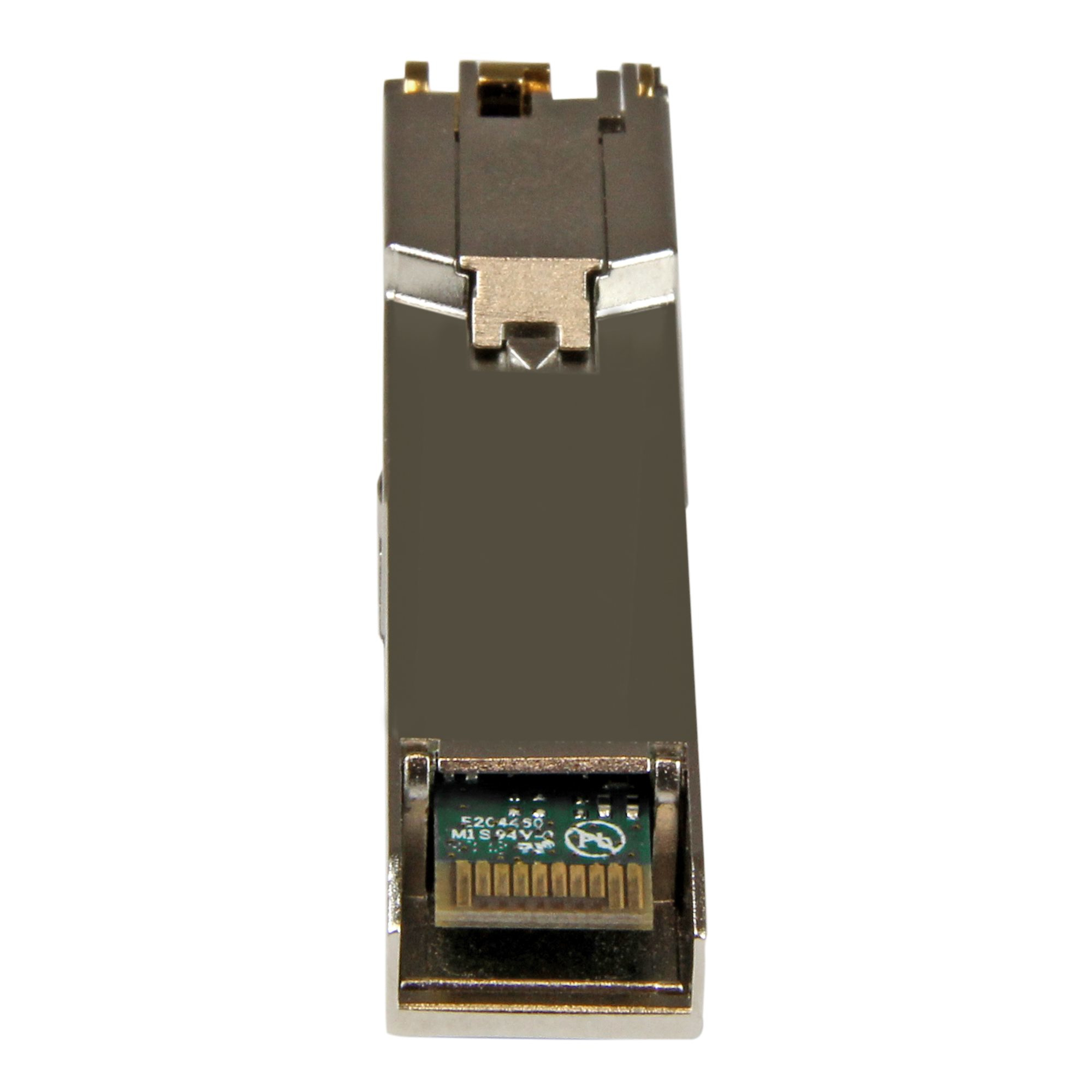

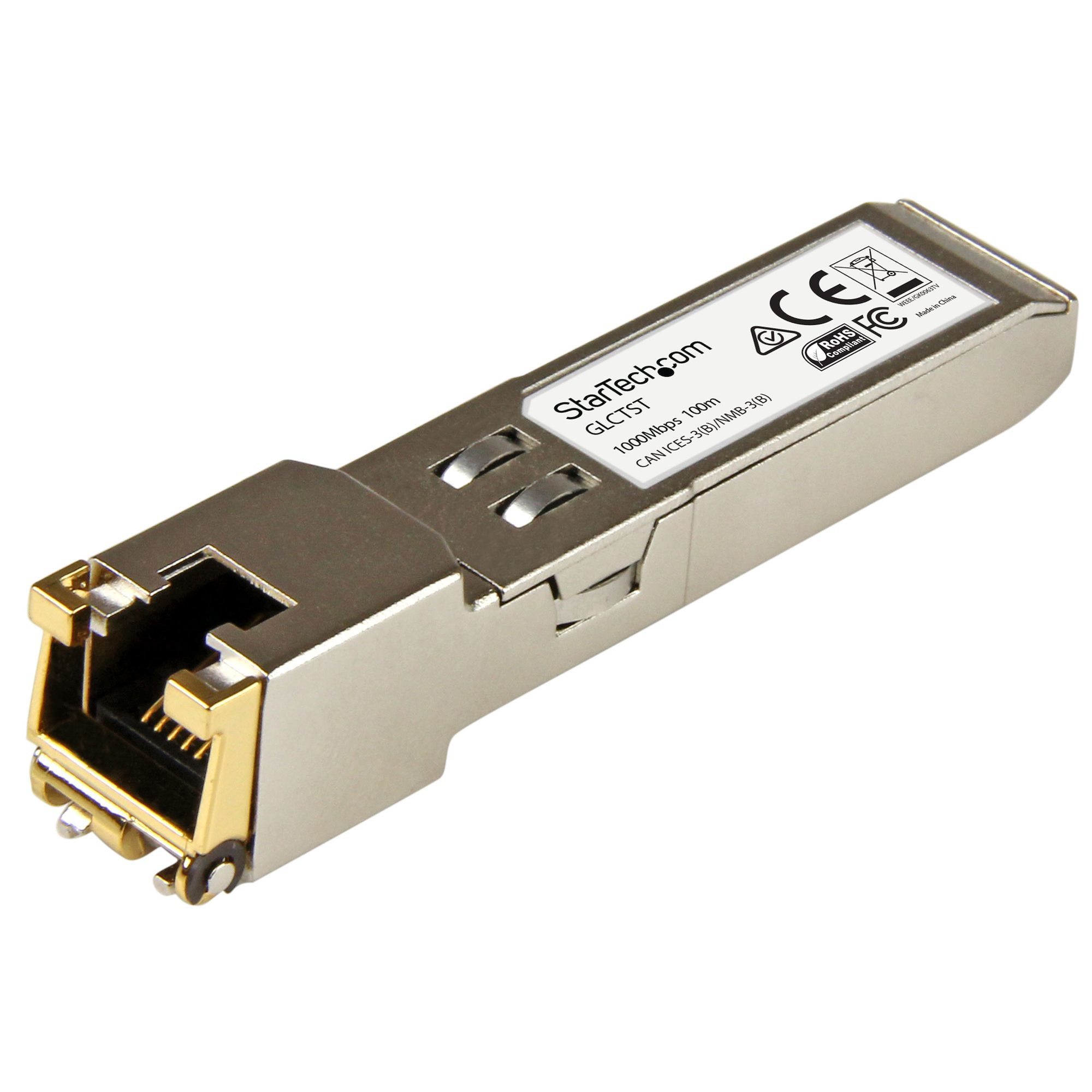

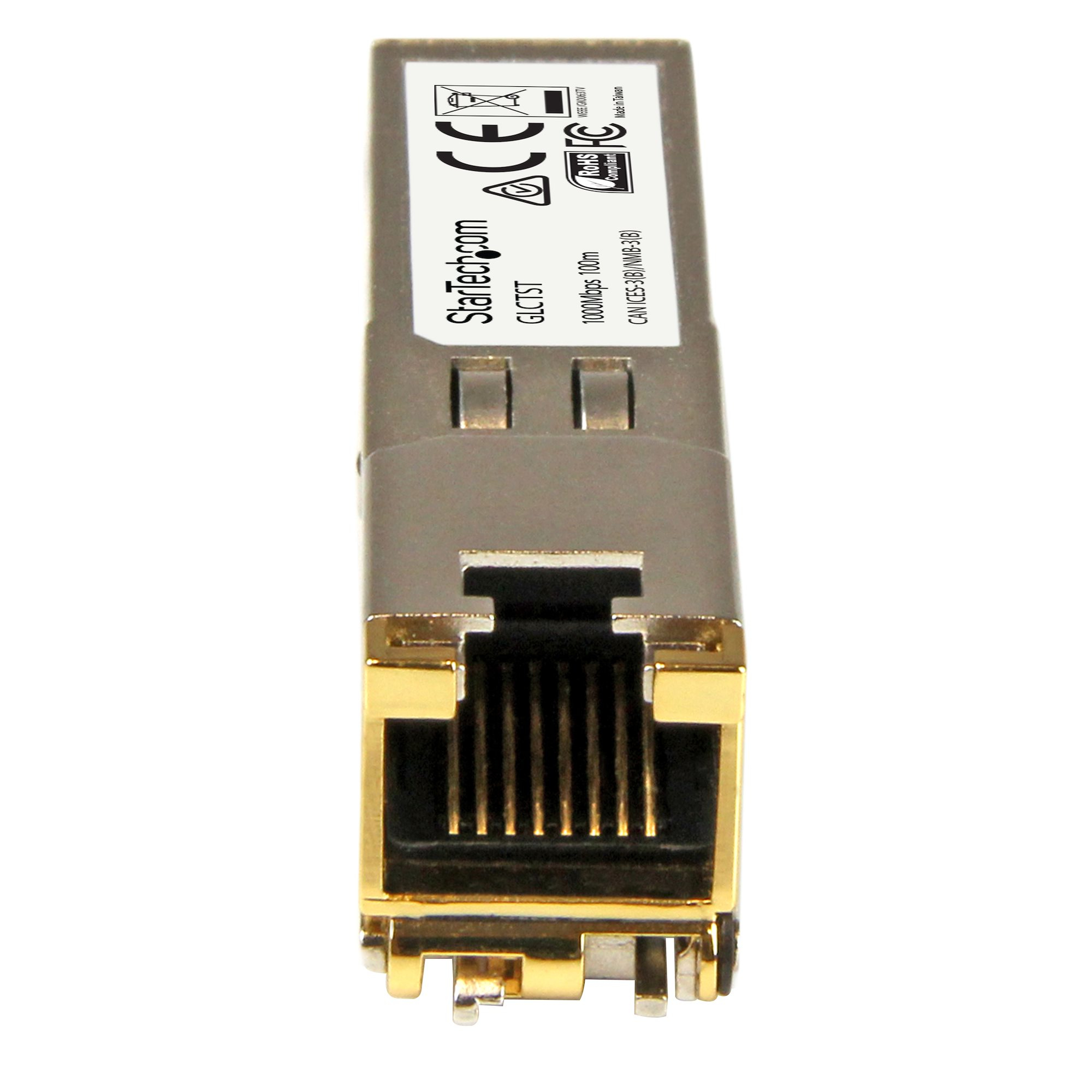

StarTech.com Extreme Networks 10050 Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m

Extreme Networks 10050 Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m

Model 10050-STEAN 065030885317

30 specifications

Speed1250 Mbit/s
Weight15 g
ColourSilver
SFP transceiver typeCopper
Width68 mm

See all specifications

Overview

Speed: 1250 Mbit/s
Weight: 15 g
Colour: Silver
SFP transceiver type: Copper
Width: 68 mm

Brand: StarTech.com
Category: Network Transceiver Module
Model: 10050-ST
Part number: 10050-ST
EAN / UPC: 065030885317
Also known as: StarTech.com Extreme Networks 10050 Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m

Specifications

30 specifications in 7 groups

Performance

Specification	Value
SFP transceiver type	Copper
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	No
Maximum transfer distance	100 m
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Copper ethernet cabling technology	10BASE, 100BASE, 1000BASE
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	No

Features

Specification	Value
Product colour	Silver
Mean time between failures (MTBF)	510469759 h
Brand compatibility	Extreme Networks
Compatible products	10050

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CE, FCC, UR, REACH

Weight & dimensions

Specification	Value
Width	68 mm
Depth	13.7 mm
Height	13.8 mm
Weight	15 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
Package width	90 mm
Package depth	115 mm
Package height	31 mm
Package weight	50 g

Logistics data

Specification	Value
Master (outer) case width	90 mm
Harmonized System (HS) code	85369010
Master (outer) case length	115 mm
Master (outer) case height	31 mm
Products per master (outer) case	1 pc(s)
