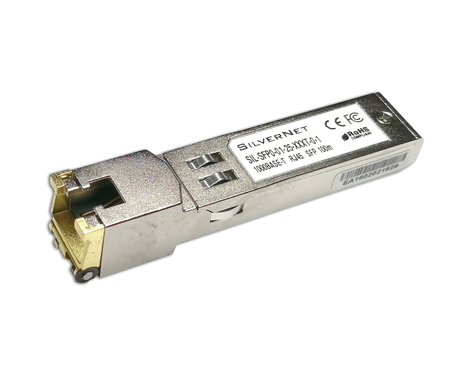

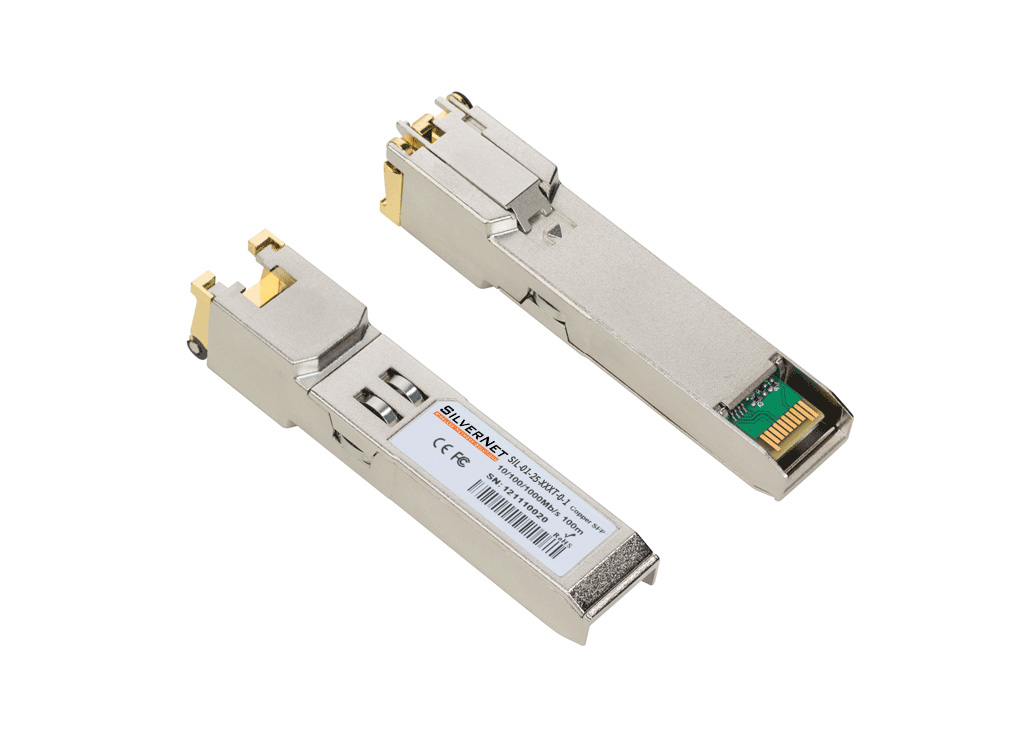

SIL-01-25-XXXT-0-1
Model SFP0-01-25-XXXT-0-1Part no. SIL-01-25-XXXT-0-1EAN 5060693981043
33 specifications
- Speed1000 Mbit/s
- Weight15 g
- ColourNickel
- SFP transceiver typeCopper
- Power consumption (typical)1.05 W
- Operating temperature (T-T)-5 - 85 °C
Overview
- Speed
- 1000 Mbit/s
- Weight
- 15 g
- Colour
- Nickel
- SFP transceiver type
- Copper
- Power consumption (typical)
- 1.05 W
- Operating temperature (T-T)
- -5 - 85 °C
- Brand
- SilverNet
- Category
- Network Transceiver Module
- Model
- SFP0-01-25-XXXT-0-1
- Part number
- SIL-01-25-XXXT-0-1
- EAN / UPC
- 5060693981043
- Also known as
- SilverNet SIL-01-25-XXXT-0-1
Specifications
33 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | RJ-45 |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3 |
| Copper ethernet cabling technology | 10BASE, 100BASE, 1000BASE |
Features
| Specification | Value |
|---|---|
| Product colour | Nickel |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.05 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 10 mm |
| Depth | 15 mm |
| Height | 60 mm |
| Weight | 15 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 55 mm |
| Package depth | 120 mm |
| Package height | 25 mm |
| Package weight | 45 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| UK Trade Tariff code | 85176200 |
| Warranty period | 1 year(s) |
