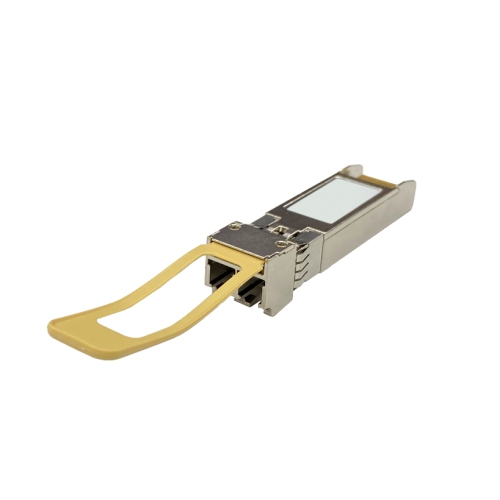

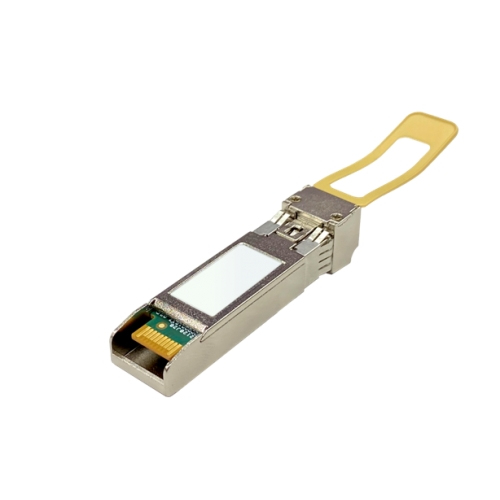

Optical Transceiver 25GbE SFP28 LC-LC 850nm SR up to 100m
Model TRX-25GSFP28-SREAN 885022021079
30 specifications
- Speed25000 Mbit/s
- ColourStainless steel
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Minimum operating temperature0 °C
Overview
- Speed
- 25000 Mbit/s
- Colour
- Stainless steel
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Minimum operating temperature
- 0 °C
- Brand
- QNAP
- Category
- Network Transceiver Module
- Model
- TRX-25GSFP28-SR
- Part number
- TRX-25GSFP28-SR
- EAN / UPC
- 885022021079, 4713213518977, 5054444675787
- Also known as
- QNAP Optical Transceiver 25GbE SFP28 LC-LC 850nm SR up to 100m
Specifications
30 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25000 Mbit/s |
| Interface type | SFP28 |
| Fiber optic connector | LC |
| SFP transceiver standard | LR, SR |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | 25 Gigabit Ethernet |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | QNAP |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Electromagnetic Compatibility (EMC), REACH, RoHS, CE, Federal Communications Commission (FCC) |
| Certification | CE, FCC, RoHS, REACH |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package type | Blister |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
| Country of origin | Taiwan, China |
| Warranty period | 20 year(s) |
