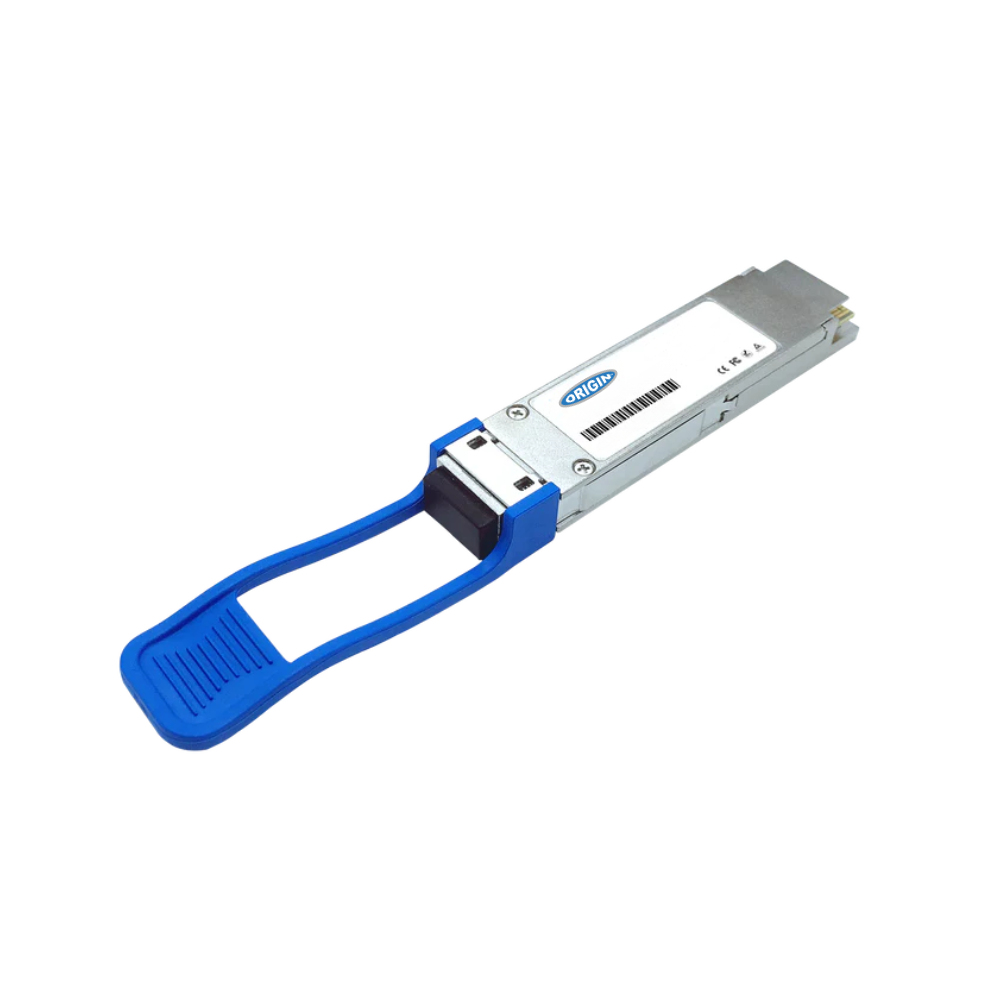

QSFP28 100G SR1.2 PAM4 2x50G BiDi SR1.2 (850/900nm MMF 100m LC DOM)
Model 407-BCXH-OSEAN 5059902199317
24 specifications
- Speed100000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature0 °C
Overview
- Speed
- 100000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- 0 °C
- Brand
- Origin Storage
- Category
- Network Transceiver Module
- Model
- 407-BCXH-OS
- Part number
- 407-BCXH-OS
- EAN / UPC
- 5059902199317
- Also known as
- Origin Storage QSFP28 100G SR1.2 PAM4 2x50G BiDi SR1.2 (850/900nm MMF 100m LC DOM)
Specifications
24 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | Dell |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Electromagnetic Compatibility (EMC), REACH, RoHS, CE, Federal Communications Commission (FCC) |
| Certification | CE, FCC, RoHS, REACH |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Packaging data
| Specification | Value |
|---|---|
| Package type | Blister |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan, China |
| Warranty period | 20 year(s) |
