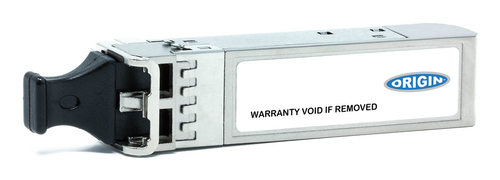

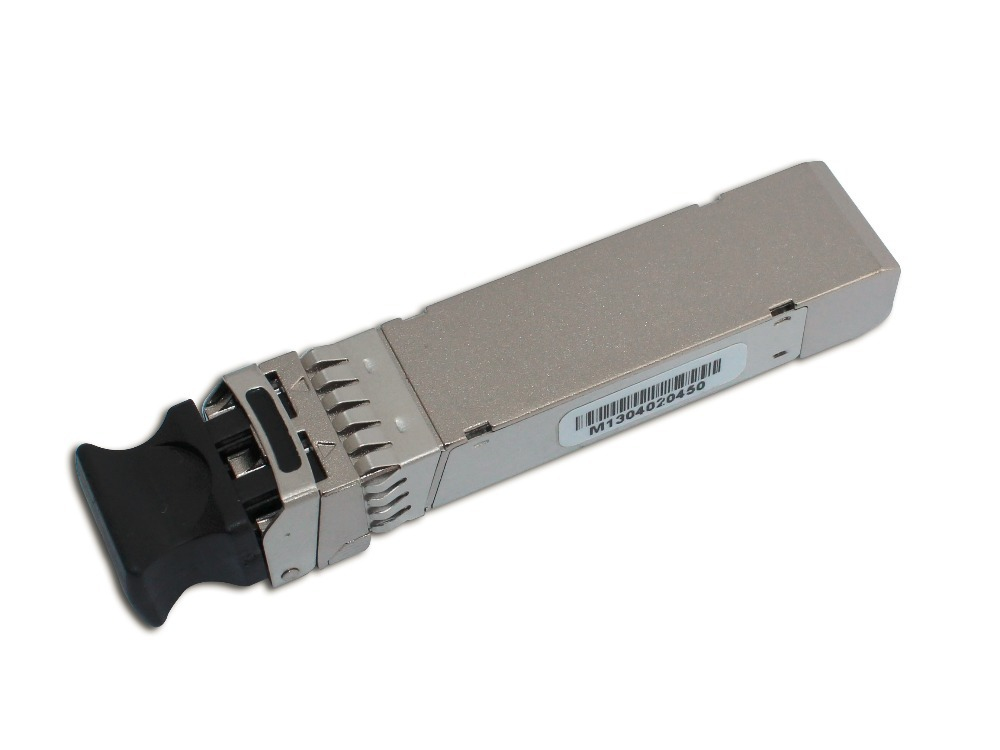

Origin Storage 10GBBASE-LR/1000BASE-LX SFP+

Origin Storage 10GBBASE-LR/1000BASE-LX SFP+

Model 10GBBASE-LR/1000BASE-LX SFP+Part no. GBIC-LR-N16000PROEAN 5055146643258

21 specifications
  • Speed10000 Mbit/s
  • SFP transceiver typeFiber optic
  • Hot-Plug supportYes
  • Operating temperature (T-T)0 - 70 °C
  • Width13.4 mm
See all specifications

Overview

Speed
10000 Mbit/s
SFP transceiver type
Fiber optic
Hot-Plug support
Yes
Operating temperature (T-T)
0 - 70 °C
Width
13.4 mm
Brand
Origin Storage
Model
10GBBASE-LR/1000BASE-LX SFP+
Part number
GBIC-LR-N16000PRO
EAN / UPC
5055146643258
Also known as
Origin Storage SFP+ LR Optics Dual Rate 10Gb BASE-LR/1000BASE-LX N16000PRO

Specifications

21 specifications in 6 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedYes
Fiber cable diameters supported (core/cladding)9/125 µm
SFP transceiver standardLR
Wavelength1310 nm
Cabling technology10GBBASE-LR/1000BASE-LX
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Auto MDI/MDI-XYes

Features

Hot-Plug supportYes
Compatible productsThecus N16000PRO

Certificates

CertificationMSA

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 80%
Storage relative humidity (H-H)10 - 85%

Weight & dimensions

Width13.4 mm
Depth56.5 mm
Height8.5 mm

Packaging content

Quantity per pack1 pc(s)
