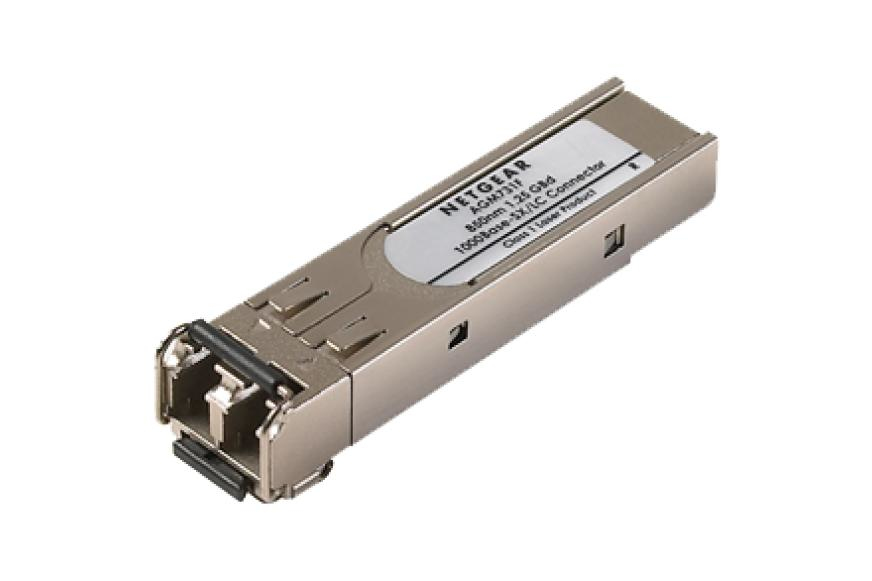

SFP 1G Ethernet Fiber Module for Managed Switches
Model AGM731FEAN 8032976000540
28 specifications
- Speed1250 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Operating temperature (T-T)0 - 40 °C
- Width57 mm
Overview
- Speed
- 1250 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 57 mm
- Brand
- NETGEAR
- Category
- Network Transceiver Module
- Model
- AGM731F
- Part number
- AGM731F
- EAN / UPC
- 8032976000540, 151903679807, 191120030760, 606449029734 +10 more
- Also known as
- NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches
Specifications
28 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| SFP transceiver standard | SX |
| Maximum transfer distance | 1000 m |
| Wavelength | 850 nm |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3z |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Mean time between failures (MTBF) | 87658 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Power consumption (typical) | 0.5 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Safety | UL 1950, CSA 22.2 No.60 950 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57 mm |
| Depth | 13.8 mm |
| Height | 8.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
