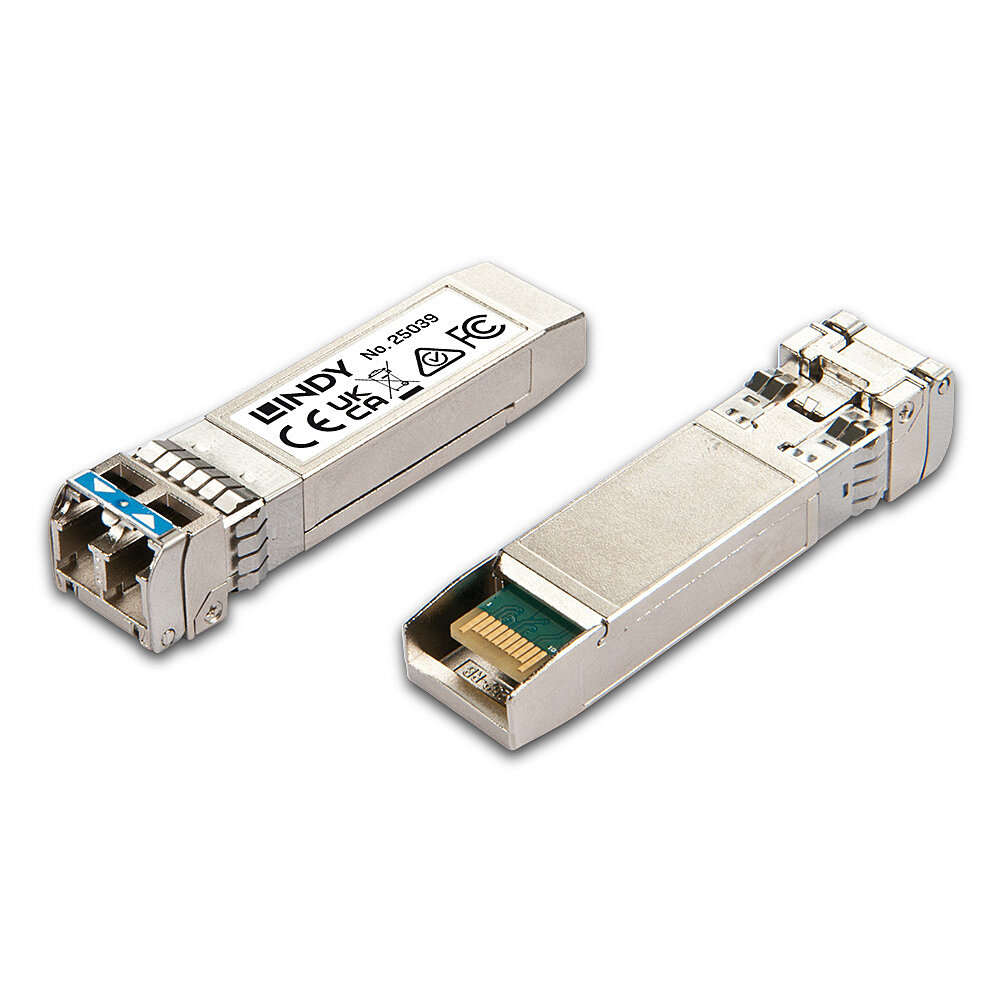

10GBase-LR/LW SFP+ LC Module - Singlemode
Model 25039EAN 4002888250399
30 specifications
- Speed10000 Mbit/s
- Weight17 g
- ColourGrey
- SFP transceiver typeFiber optic
- Power consumption (typical)1 W
- Minimum operating temperature0 °C
Overview
- Speed
- 10000 Mbit/s
- Weight
- 17 g
- Colour
- Grey
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1 W
- Minimum operating temperature
- 0 °C
- Brand
- Lindy
- Category
- Network Transceiver Module
- Model
- 25039
- Part number
- 25039
- EAN / UPC
- 4002888250399
- Also known as
- Lindy 10GBase-LR/LW SFP+ LC Module - Singlemode
Specifications
30 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR, LW |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Product colour | Grey |
| Housing material | Metal |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Certification | UKCA, FCC, California Proposition 65 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14.5 mm |
| Depth | 57.4 mm |
| Height | 12 mm |
| Weight | 17 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 115 mm |
| Package depth | 45 mm |
| Package height | 20 mm |
| Package weight | 35 g |
