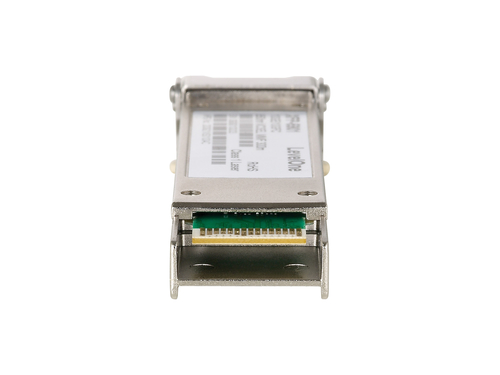

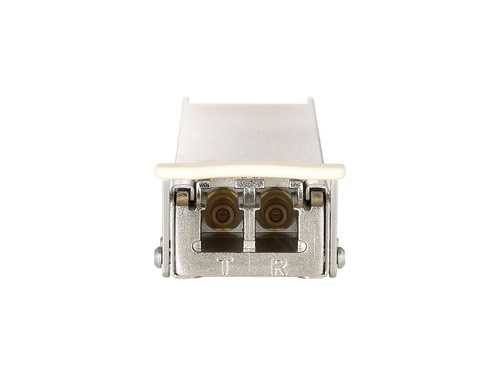

LevelOne 10Gbps Multi-mode XFP Transceiver, 300m, 850nm

LevelOne 10Gbps Multi-mode XFP Transceiver, 300m, 850nm

Model XFP-5901EAN 4015867154717

34 specifications
  • Speed10000 Mbit/s
  • Weight35 g
  • SFP transceiver typeFiber optic
  • Hot-swapYes
  • Input voltage3.3 V
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Speed
10000 Mbit/s
Weight
35 g
SFP transceiver type
Fiber optic
Hot-swap
Yes
Input voltage
3.3 V
Operating temperature (T-T)
0 - 70 °C
Brand
LevelOne
Model
XFP-5901
Part number
XFP-5901
EAN / UPC
4015867154717, 5050914833114
Also known as
LevelOne 10Gbps Multi-mode XFP Transceiver, 300m, 850nm

Specifications

34 specifications in 10 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate10000 Mbit/s
Interface typeXFP
Multi-mode fiber (MMF) supportedYes
Fiber optic connectorLC
Maximum transfer distance300 m
Wavelength850 nm
Tx power (min)-6.5 dBmW
Tx power (max)-1 dBmW
Link budget4.6 dB
Networking standardsIEEE 802.3ae
Auto MDI/MDI-XNo
Fiber ports quantity1

Features

Hot-swapYes

Power

Input voltage3.3 V
Maximum voltage3.6 V
Maximum current0.18 A

Certificates

Compliance certificatesRoHS
CertificationClass 1 EN 60825-1 CE, FCC

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width22.1 mm
Depth78 mm
Height14 mm
Weight35 g

Packaging content

Quantity per pack1 pc(s)

Packaging data

Package width75 mm
Package depth130 mm
Package height50 mm
Package weight850 g

Other features

RX sensitivity-11.1 dB

Logistics data

Harmonized System (HS) code85369010
Country of originChina
