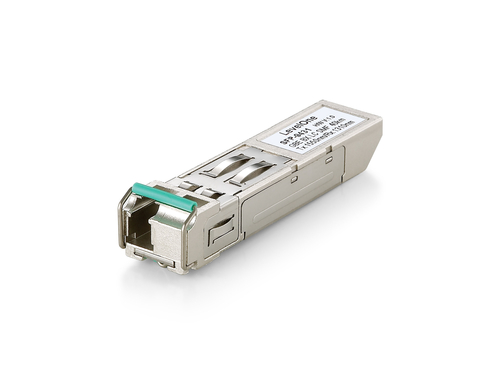

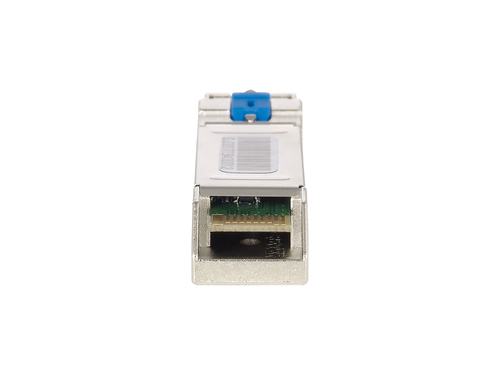

LevelOne 1.25Gbps Single-mode BIDI SFP Transceiver, 40km, TX 1310nm / RX 1550nm

LevelOne 1.25Gbps Single-mode BIDI SFP Transceiver, 40km, TX 1310nm / RX 1550nm

Model SFP-9421EAN 4015867154816

31 specifications
  • Speed1250 Mbit/s
  • Weight20 g
  • SFP transceiver typeFiber optic
  • Hot-swapYes
  • Input voltage3.3 V
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Speed
1250 Mbit/s
Weight
20 g
SFP transceiver type
Fiber optic
Hot-swap
Yes
Input voltage
3.3 V
Operating temperature (T-T)
0 - 70 °C
Brand
LevelOne
Model
SFP-9421
Part number
SFP-9421
EAN / UPC
4015867154816, 4015867240663, 5050914832513
Also known as
LevelOne 1.25Gbps Single-mode BIDI SFP Transceiver, 40km, TX 1310nm / RX 1550nm

Specifications

31 specifications in 9 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance40000 m
Tx power (min)-3 dBmW
Tx power (max)2 dBmW
Networking standardsIEEE 802.3ah
Fiber ports quantity1

Features

Hot-swapYes

Power

Input voltage3.3 V
Maximum voltage6 V
Maximum current0.3 A

Certificates

Compliance certificatesRoHS
SafetyEN 60825-1
CertificationCE, FCC

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width57 mm
Depth12 mm
Height13.7 mm
Weight20 g

Packaging content

Quantity per pack1 pc(s)

Packaging data

Package width106 mm
Package depth20 mm
Package height65 mm
Package weight35 g

Logistics data

Harmonized System (HS) code85369010
