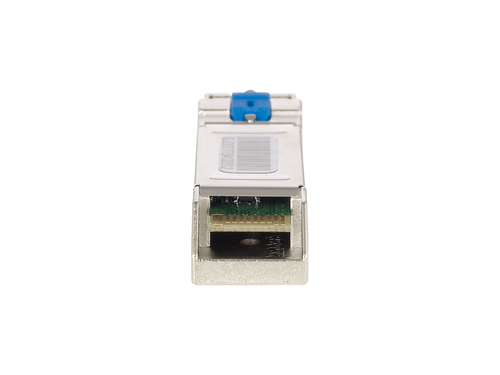

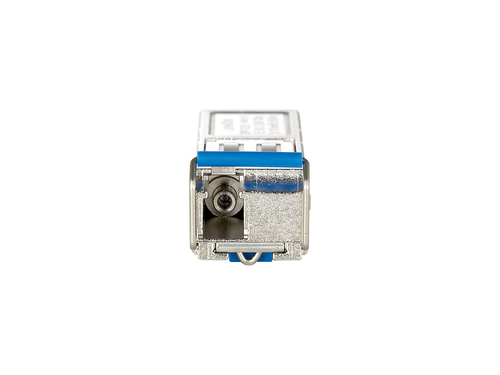

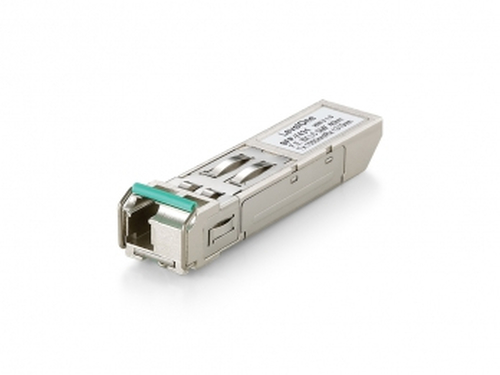

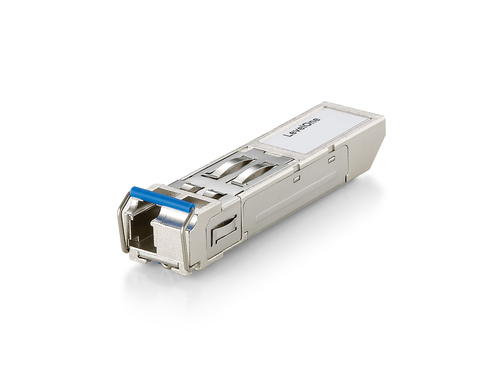

LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 40km, TX 1310nm / RX 1550nm

LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 40km, TX 1310nm / RX 1550nm

Model SFP-7421EAN 4015867154755

31 specifications
  • Speed155 Mbit/s
  • Weight20 g
  • SFP transceiver typeFiber optic
  • Hot-swapYes
  • Input voltage3.3 V
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Speed
155 Mbit/s
Weight
20 g
SFP transceiver type
Fiber optic
Hot-swap
Yes
Input voltage
3.3 V
Operating temperature (T-T)
0 - 70 °C
Brand
LevelOne
Model
SFP-7421
Part number
SFP-7421
EAN / UPC
4015867154755, 5050914833299
Also known as
LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 40km, TX 1310nm / RX 1550nm

Specifications

31 specifications in 9 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate155 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Maximum transfer distance40000 m
Tx power (min)-8 dBmW
Tx power (max)-3 dBmW
Networking standardsIEEE 802.3ah
Auto MDI/MDI-XNo
Fiber ports quantity1

Features

Hot-swapYes

Power

Input voltage3.3 V
Maximum voltage6 V
Maximum current0.3 A

Certificates

Compliance certificatesRoHS
SafetyEN 60825-1
CertificationCE, FCC

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width13.7 mm
Depth56.5 mm
Height8.95 mm
Weight20 g

Packaging content

Quantity per pack1 pc(s)

Packaging data

Package width75 mm
Package depth51 mm
Package height130 mm
Package weight60 g

Logistics data

Harmonized System (HS) code85369010
