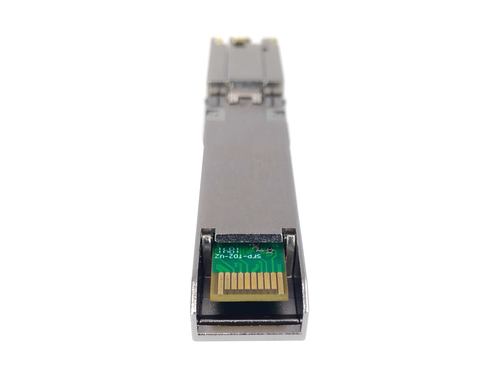

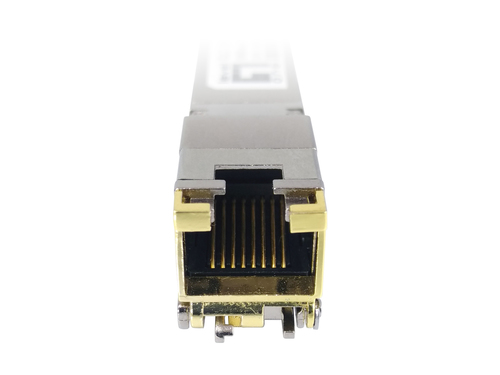

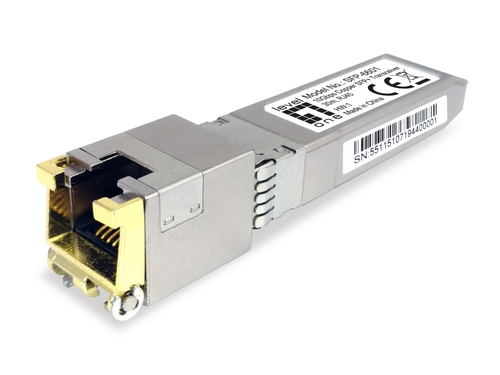

SFP-6601 network transceiver module Copper 10000 Mbit/s SFP+
Model SFP-6601EAN 4015867222560
24 specifications
- Speed10000 Mbit/s
- Weight20 g
- ColourSilver
- SFP transceiver typeCopper
- Maximum voltage3.3 V
- Operating temperature (T-T)0 - 60 °C
Overview
- Speed
- 10000 Mbit/s
- Weight
- 20 g
- Colour
- Silver
- SFP transceiver type
- Copper
- Maximum voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- LevelOne
- Category
- Network Transceiver Module
- Model
- SFP-6601
- Part number
- SFP-6601
- EAN / UPC
- 4015867222560, 4015867240571
- Also known as
- LevelOne SFP-6601 network transceiver module Copper 10000 Mbit/s SFP+
Specifications
24 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Maximum transfer distance | 100 m |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3an, IEEE 802.3az |
| Copper ethernet cabling technology | 10GBASE, 1000BASE |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 3.3 V |
| Maximum current | 0.7 A |
| Power consumption (typical) | 1.05 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 67 mm |
| Depth | 8.5 mm |
| Height | 13.4 mm |
| Weight | 20 g |
Packaging data
| Specification | Value |
|---|---|
| User guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
