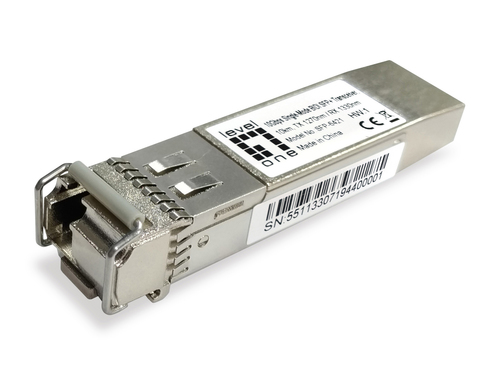

SFP-6421 network transceiver module Fiber optic 10300 Mbit/s SFP+
Model SFP-6421EAN 4015867222485
31 specifications
- Speed10300 Mbit/s
- Weight20 g
- ColourSilver
- SFP transceiver typeFiber optic
- Input voltage3.47 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 10300 Mbit/s
- Weight
- 20 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.47 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- LevelOne
- Category
- Network Transceiver Module
- Model
- SFP-6421
- Part number
- SFP-6421
- EAN / UPC
- 4015867222485, 4015867240496
- Also known as
- LevelOne SFP-6421 network transceiver module Fiber optic 10300 Mbit/s SFP+
Specifications
31 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10300 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR, LW |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1270 nm |
| Rx wavelength (max) | 1330 nm |
| Tx power (max) | 3 dBmW |
| Networking standards | IEEE 802.3ae |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.47 V |
| Maximum current | 0.3 A |
| Power consumption (typical) | 1.2 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.7 mm |
| Depth | 56.5 mm |
| Height | 11.8 mm |
| Weight | 20 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| User guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
