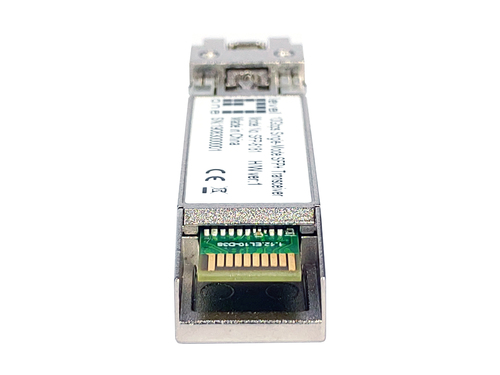

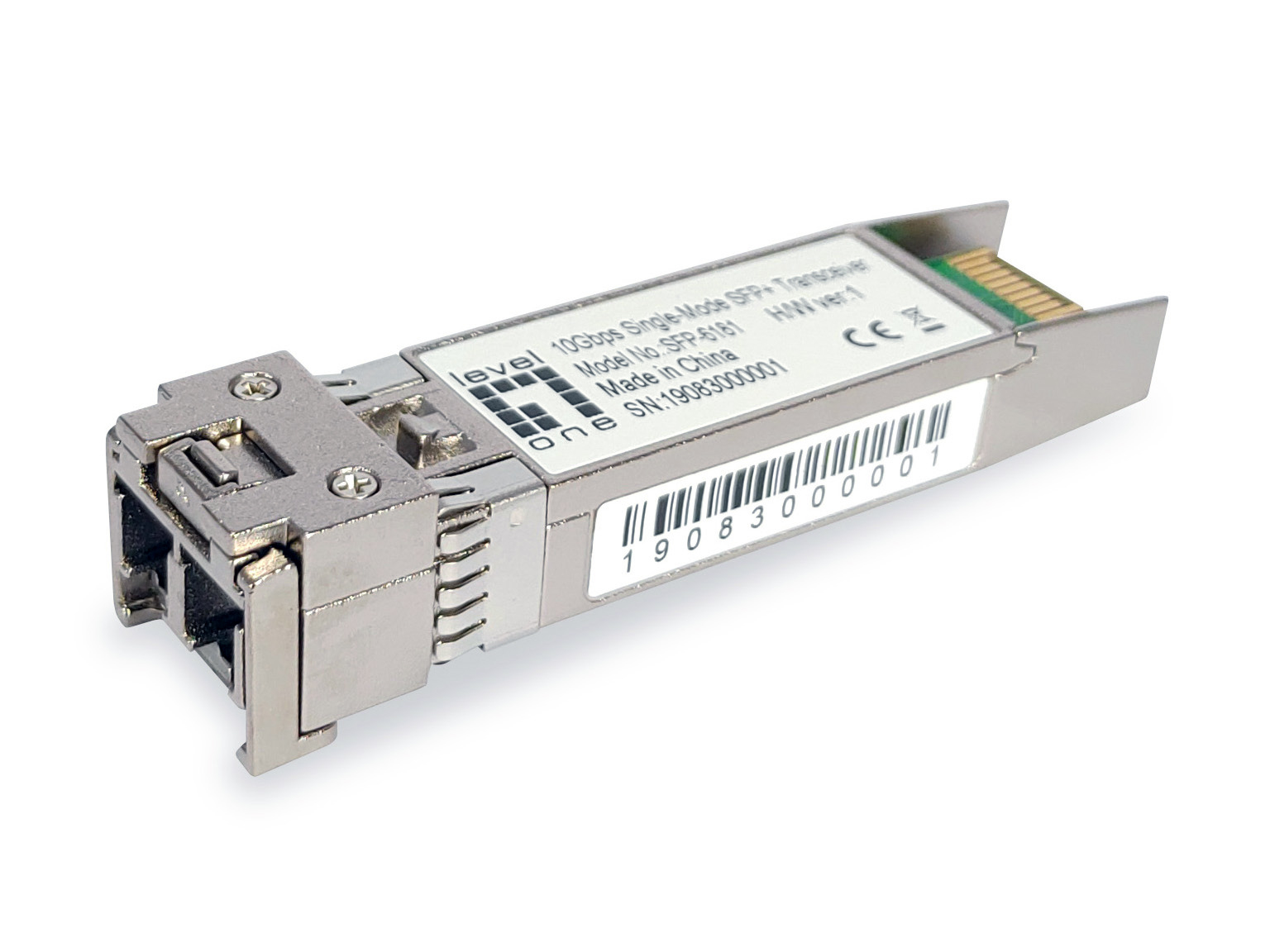

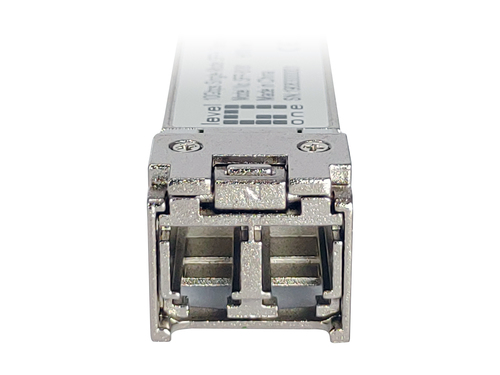

SFP-6181 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1550 nm
Model SFP-6181EAN 4015867208670
39 specifications
- Speed10000 Mbit/s
- Weight22 g
- ColourSilver
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 10000 Mbit/s
- Weight
- 22 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- LevelOne
- Category
- Network Transceiver Module
- Model
- SFP-6181
- Part number
- SFP-6181
- EAN / UPC
- 4015867208670, 4015867240489
- Also known as
- LevelOne SFP-6181 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1550 nm
Specifications
39 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | ZR |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Tx power (min) | 0 dBmW |
| Tx power (max) | 4 dBmW |
| Rx power (min) | -24 dBmW |
| Rx power (max) | -7 dBmW |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Maximum current | 0.6 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Safety | EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B., Class 1 Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN(IEC)60825-1,2, Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1,2, Immunity compatible with IEC |
| Certification | EMC Directive 2014/53/EU IEC 61000-4-3 / IEC 61000-4-2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57 mm |
| Depth | 12.3 mm |
| Height | 13.9 mm |
| Weight | 22 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| User guide | Yes |
| Package width | 106 mm |
| Package depth | 20 mm |
| Package height | 65 mm |
| Package weight | 40 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
| Country of origin | China |
