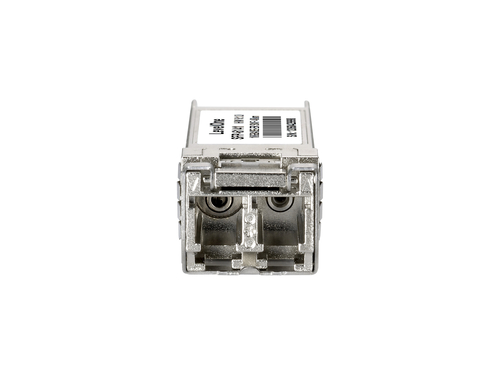

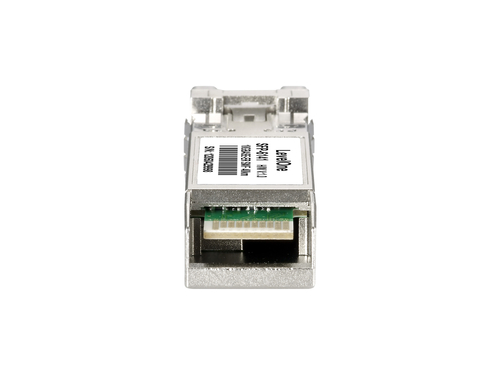

LevelOne 10Gbps Single-mode SFP+ Transceiver, 40km, 1550nm

LevelOne 10Gbps Single-mode SFP+ Transceiver, 40km, 1550nm

Model SFP-6141EAN 4015867182482

35 specifications
  • Speed10000 Mbit/s
  • Weight20 g
  • SFP transceiver typeFiber optic
  • Hot-swapYes
  • Input voltage3.3 V
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Speed
10000 Mbit/s
Weight
20 g
SFP transceiver type
Fiber optic
Hot-swap
Yes
Input voltage
3.3 V
Operating temperature (T-T)
0 - 70 °C
Brand
LevelOne
Model
SFP-6141
Part number
SFP-6141
EAN / UPC
4015867182482, 4015867240472, 5050914833152
Also known as
LevelOne 10Gbps Single-mode SFP+ Transceiver, 40km, 1550nm

Specifications

35 specifications in 9 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance40000 m
Wavelength1550 nm
Tx power (min)-4.7 dBmW
Tx power (max)4 dBmW
Link budget11.1 dB
Networking standardsIEEE 802.3ae
Duplex systemFull
Fiber ports quantity1

Features

Hot-swapYes

Power

Input voltage3.3 V
Maximum voltage3.6 V
Maximum current0.5 A

Certificates

Compliance certificatesRoHS
SafetyEN 60825-1
CertificationCE, FCC

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width57 mm
Depth12 mm
Height13.7 mm
Weight20 g

Packaging content

Quantity per pack1 pc(s)

Packaging data

Package width106 mm
Package depth20 mm
Package height65 mm
Package weight35 g

Logistics data

Harmonized System (HS) code85369010
Country of originTaiwan
