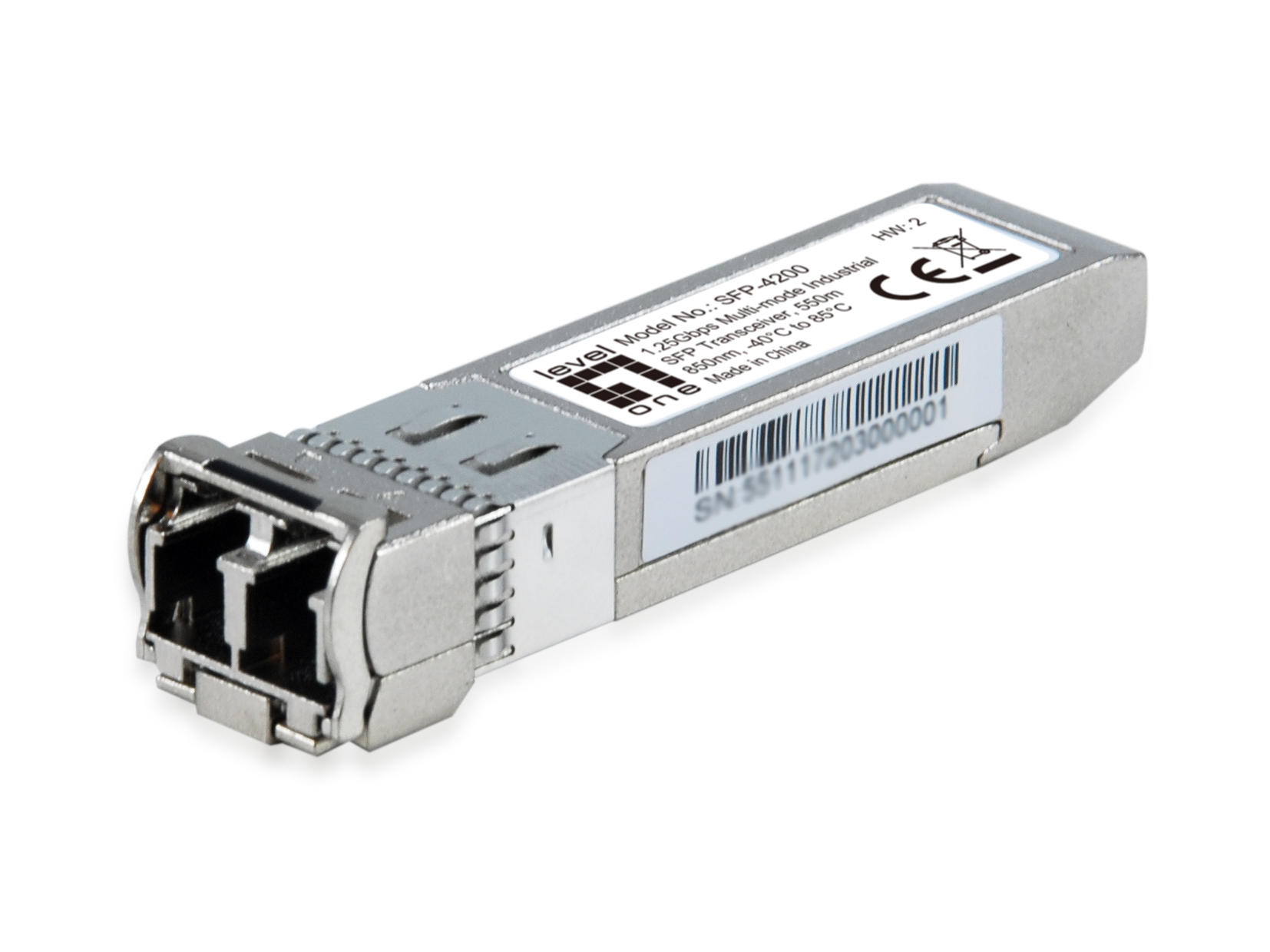

1.25Gbps Multi-mode Industrial SFP Transceiver, 550m, 850nm, -20°C to 85°C
Model SFP-4200EAN 4015867181027
28 specifications
- Speed1250 Mbit/s
- Weight20 g
- SFP transceiver typeFiber optic
- Hot-swapYes
- Operating temperature (T-T)-40 - 70 °C
- Width14 mm
Overview
- Speed
- 1250 Mbit/s
- Weight
- 20 g
- SFP transceiver type
- Fiber optic
- Hot-swap
- Yes
- Operating temperature (T-T)
- -40 - 70 °C
- Width
- 14 mm
- Brand
- LevelOne
- Category
- Network Transceiver Module
- Model
- SFP-4200
- Part number
- SFP-4200
- EAN / UPC
- 4015867181027, 4015867224441, 4015867240335, 5050914832537
- Also known as
- LevelOne 1.25Gbps Multi-mode Industrial SFP Transceiver, 550m, 850nm, -20°C to 85°C
Specifications
28 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -10 dBmW |
| Tx power (max) | 4 dBmW |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Hot-swap | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | 5 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 20 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 65 mm |
| Package depth | 106 mm |
| Package height | 20 mm |
| Package weight | 40 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
