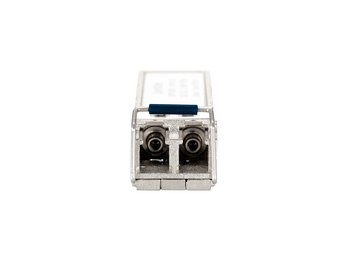

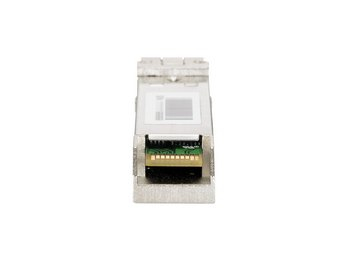

1.25Gbps Single-mode SFP Transceiver, 20km, 1310nm
Model SFP-3211EAN 878742009144
34 specifications
- Speed1250 Mbit/s
- Weight20 g
- SFP transceiver typeFiber optic
- Plug and PlayYes
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 1250 Mbit/s
- Weight
- 20 g
- SFP transceiver type
- Fiber optic
- Plug and Play
- Yes
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- LevelOne
- Category
- Network Transceiver Module
- Model
- SFP-3211
- Part number
- SFP-3211
- EAN / UPC
- 878742009144, 4015867155165, 4015867240281, 5050914832605
- Also known as
- LevelOne 1.25Gbps Single-mode SFP Transceiver, 20km, 1310nm
Specifications
34 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -3 dBmW |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Hot-swap | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Maximum voltage | 6 V |
| Maximum current | 0.3 A |
| Power over Ethernet (PoE) | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Safety | EN 60825-1 |
| Certification | CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57 mm |
| Depth | 12 mm |
| Height | 13.7 mm |
| Weight | 20 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 106 mm |
| Package depth | 20 mm |
| Package height | 65 mm |
| Package weight | 35 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
