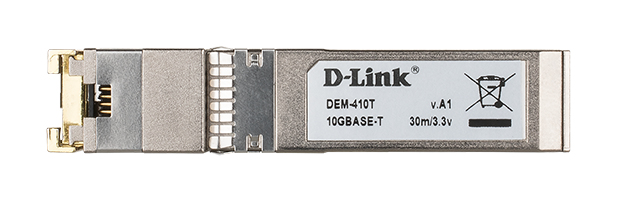

SFP+ 10GBASE-T Copper Transceiver
Model DEM-410TEAN 790069442353
45 specifications
- Speed10000 Mbit/s
- Weight20 g
- ColourGold, Silver
- SFP transceiver typeCopper
- Input voltage3.3 V
- Operating temperature (T-T)0 - 60 °C
Overview
- Speed
- 10000 Mbit/s
- Weight
- 20 g
- Colour
- Gold, Silver
- SFP transceiver type
- Copper
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- D-Link
- Category
- Network Transceiver Module
- Model
- DEM-410T
- Part number
- DEM-410T
- EAN / UPC
- 790069442353
- Also known as
- D-Link SFP+ 10GBASE-T Copper Transceiver
Specifications
45 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| SFP transceiver standard | T |
| Maximum transfer distance | 30 m |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Networking standards | IEEE 802.3ab, IEEE 802.3an |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ethernet cabling technology | 10GBASE, 1000BASE |
Features
| Specification | Value |
|---|---|
| Product colour | Gold, Silver |
| Mean time between failures (MTBF) | 217186 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Safety | LVD |
| Certification | CE, FCC, VCCI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.7 mm |
| Depth | 68 mm |
| Height | 8.5 mm |
| Weight | 20 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 74 mm |
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 60 pc(s) |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross weight (air) | 272 kg |
| Pallet gross weight (sea) | 272 kg |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet height (sea) | 199 cm |
| Products per pallet (air) | 3000 pc(s) |
| Products per pallet (sea) | 3000 pc(s) |
| Products per shipping (inner) case | 50 pc(s) |
| Shipping (inner) case gross weight | 4.2 kg |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Shipping (inner) case width | 26 cm |
| Harmonized System (HS) code | 85369010 |
