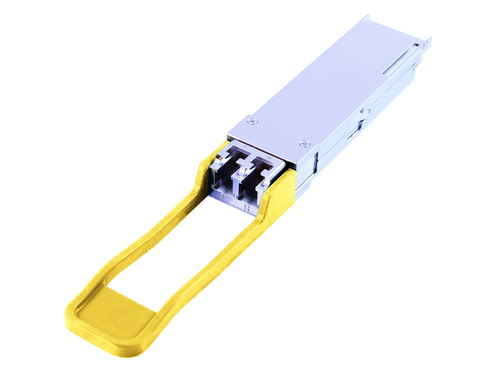

LevelOne QFP-5005 100Gbps DR Single-mode QSFP28 PAM4 Transceiver, 500m, 1310nm, Duplex LC

QFP-5005 100Gbps DR Single-mode QSFP28 PAM4 Transceiver, 500m, 1310nm, Duplex LC

Model QFP-5005Part no. 55130807101EAN 4015867242247

29 specifications

Speed100000 Mbit/s
TypeQSFP28
ColourSilver
SFP transceiver typeFiber optic
Minimum operating temperature0 °C

See all specifications

Overview

Speed: 100000 Mbit/s
Type: QSFP28
Colour: Silver
SFP transceiver type: Fiber optic
Minimum operating temperature: 0 °C

Brand: LevelOne
Category: Network Transceiver Module
Model: QFP-5005
Part number: 55130807101
EAN / UPC: 4015867242247
Also known as: LevelOne QFP-5005 100Gbps DR Single-mode QSFP28 PAM4 Transceiver, 500m, 1310nm, Duplex LC

Specifications

29 specifications in 7 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	100000 Mbit/s
Interface type	QSFP28
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	DR
Maximum transfer distance	500 m
Wavelength	1310 nm
Ethernet interface type	100 Gigabit Ethernet
Fiber ethernet cabling technology	100GBASE
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Yes

Features

Specification	Value
Product colour	Silver
Form factor	QSFP28
Plug and Play	Yes
Hot-swap	Yes
Brand compatibility	MSA Compliant

Certificates

Specification	Value
Compliance certificates	CE
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes

Operational conditions

Specification	Value
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	5 - 85%

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
User guide	Yes

Logistics data

Specification	Value
Customs product code (TARIC)	8517620000
Harmonized System (HS) code	851762
Country of origin	Taiwan
