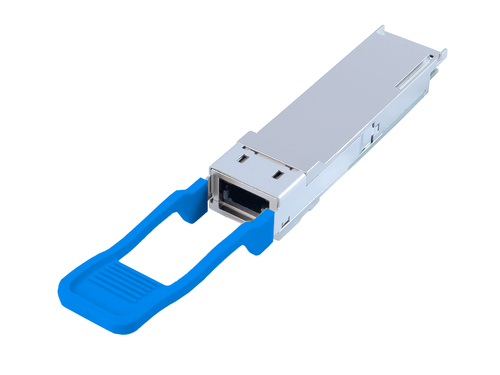

LevelOne QFP-3111 40Gbps PLR4 Single-mode QSFP+ PSM4 Transceiver, 10km, 1310nm, MPO-12

QFP-3111 40Gbps PLR4 Single-mode QSFP+ PSM4 Transceiver, 10km, 1310nm, MPO-12

Model QFP-3111Part no. 55130607101EAN 4015867242223

29 specifications

Speed40000 Mbit/s
TypeQSFP+
ColourSilver
SFP transceiver typeFiber optic
Minimum operating temperature0 °C

See all specifications

Overview

Speed: 40000 Mbit/s
Type: QSFP+
Colour: Silver
SFP transceiver type: Fiber optic
Minimum operating temperature: 0 °C

Brand: LevelOne
Category: Network Transceiver Module
Model: QFP-3111
Part number: 55130607101
EAN / UPC: 4015867242223
Also known as: LevelOne QFP-3111 40Gbps PLR4 Single-mode QSFP+ PSM4 Transceiver, 10km, 1310nm, MPO-12

Specifications

29 specifications in 7 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	40000 Mbit/s
Interface type	QSFP+
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	MPO-12
SFP transceiver standard	PSM4
Maximum transfer distance	10000 m
Wavelength	1310 nm
Ethernet interface type	40 Gigabit Ethernet
Fiber ethernet cabling technology	40GBASE
Digital Diagnostics Monitoring (DDM)	Yes

Features

Specification	Value
Product colour	Silver
Form factor	QSFP+
Plug and Play	Yes
Hot-swap	Yes
Brand compatibility	MSA Compliant

Certificates

Specification	Value
Compliance certificates	CE
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes

Operational conditions

Specification	Value
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	5 - 85%

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
User guide	Yes

Logistics data

Specification	Value
Customs product code (TARIC)	8517620000
Harmonized System (HS) code	851762
Country of origin	Taiwan
