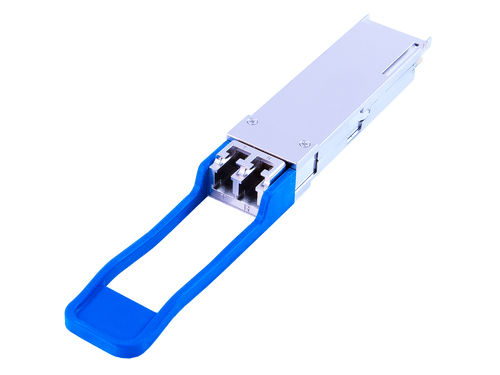

QFP-3110 40Gbps LR4 Single-mode QSFP+ CWDM4 Transceiver, 10km, 1310nm, Duplex LC
Model QFP-3110Part no. 55130307101EAN 4015867242193
30 specifications
- Speed40000 Mbit/s
- TypeQSFP+
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature0 °C
Overview
- Speed
- 40000 Mbit/s
- Type
- QSFP+
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- 0 °C
- Brand
- LevelOne
- Category
- Network Transceiver Module
- Model
- QFP-3110
- Part number
- 55130307101
- EAN / UPC
- 4015867242193
- Also known as
- LevelOne QFP-3110 40Gbps LR4 Single-mode QSFP+ CWDM4 Transceiver, 10km, 1310nm, Duplex LC
Specifications
30 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Coarse Wavelength Division Multiplexing (CWDM) | Yes |
| Ethernet interface type | 40 Gigabit Ethernet |
| Fiber ethernet cabling technology | 40GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | QSFP+ |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Brand compatibility | MSA Compliant |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| User guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8517620000 |
| Harmonized System (HS) code | 851762 |
| Country of origin | Taiwan |
