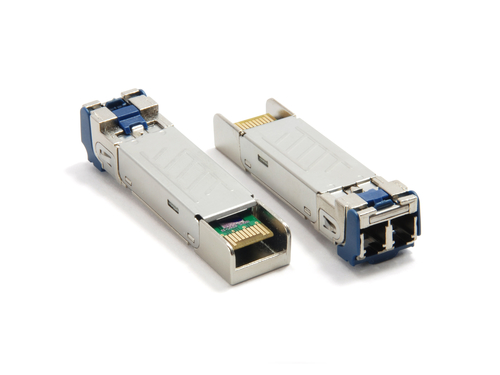

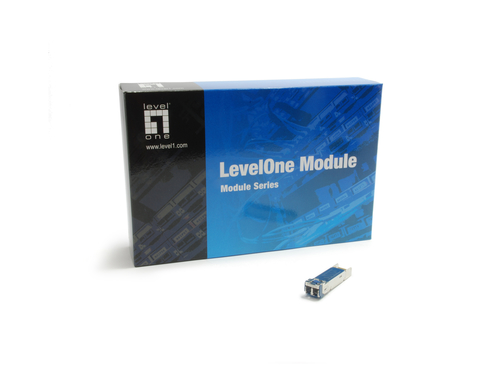

LevelOne 1.25Gbps Single-mode SFP Transceiver, 80km, 1550nm

LevelOne 1.25Gbps Single-mode SFP Transceiver, 80km, 1550nm

Model GVT-0302EAN 4015867113622

31 specifications
  • Speed1250 Mbit/s
  • SFP transceiver typeFiber optic
  • Hot-Plug supportYes
  • Input voltage3.5 V
  • Operating temperature (T-T)0 - 70 °C
  • Width55.5 mm
See all specifications

Overview

Speed
1250 Mbit/s
SFP transceiver type
Fiber optic
Hot-Plug support
Yes
Input voltage
3.5 V
Operating temperature (T-T)
0 - 70 °C
Width
55.5 mm
Brand
LevelOne
Model
GVT-0302
Part number
GVT-0302
EAN / UPC
4015867113622, 5050914832551
Also known as
LevelOne 1.25Gbps Single-mode SFP Transceiver, 80km, 1550nm

Specifications

31 specifications in 9 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
SFP transceiver standardZX
Maximum transfer distance80000 m
Wavelength1550 nm
Tx power (min)0 dBmW
Tx power (max)5 dBmW
Link budget23 dB
Networking standardsIEEE 802.3z

Features

Hot-Plug supportYes
Compatible productsGSW-2453 GVT-4000

Power

Input voltage3.5 V
Maximum voltage6 V
Maximum current0.3 A

Certificates

CertificationClass 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11

Operational conditions

Operating temperature (T-T)0 - 70 °C
Operating relative humidity (H-H)5 - 90%

Weight & dimensions

Width55.5 mm
Depth13.5 mm
Height11.7 mm

Packaging content

Quantity per pack1 pc(s)

Packaging data

Package width153 mm
Package depth51 mm
Package height230 mm
Package weight180 g

Logistics data

Harmonized System (HS) code85369010
Country of originTaiwan
