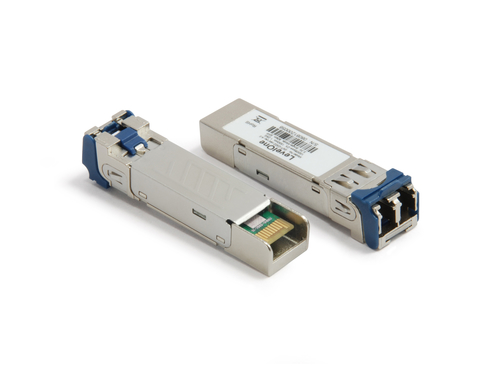

LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm

LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm

Model GVT-0301EAN 4015867113615

31 specifications

Speed1250 Mbit/s
SFP transceiver typeFiber optic
Hot-Plug supportYes
Input voltage3.5 V
Operating temperature (T-T)0 - 70 °C
Width13.5 mm

See all specifications

Overview

Speed: 1250 Mbit/s
SFP transceiver type: Fiber optic
Hot-Plug support: Yes
Input voltage: 3.5 V
Operating temperature (T-T): 0 - 70 °C
Width: 13.5 mm

Brand: LevelOne
Category: Network Transceiver Module
Model: GVT-0301
Part number: GVT-0301
EAN / UPC: 4015867113615, 4015867224397, 4015867240137, 5050914832544
Also known as: LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm

Specifications

31 specifications in 9 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver standard	LX
Maximum transfer distance	10000 m
Wavelength	1310 nm
Tx power (min)	-9.5 dBmW
Tx power (max)	-3 dBmW
Link budget	10.5 dB
Networking standards	IEEE 802.3z

Features

Specification	Value
Hot-Plug support	Yes
Compatible products	GSW-2453 GVT-4000

Power

Specification	Value
Input voltage	3.5 V
Maximum voltage	6 V
Maximum current	0.3 A

Certificates

Specification	Value
Certification	Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	13.5 mm
Depth	55.5 mm
Height	8.5 mm

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
Package width	70 mm
Package depth	50 mm
Package height	130 mm
Package weight	70 g

Logistics data

Specification	Value
Harmonized System (HS) code	85369010
Country of origin	Taiwan
