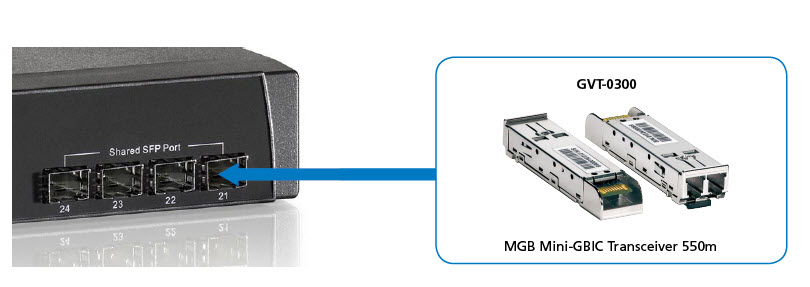

1.25Gbps Multi-mode SFP Transceiver, 550m, 850nm
Model GVT-0300EAN 5711045426568
30 specifications
- Speed1250 Mbit/s
- SFP transceiver typeFiber optic
- Hot-Plug supportYes
- Input voltage3.5 V
- Operating temperature (T-T)0 - 70 °C
- Width13.4 mm
Overview
- Speed
- 1250 Mbit/s
- SFP transceiver type
- Fiber optic
- Hot-Plug support
- Yes
- Input voltage
- 3.5 V
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 13.4 mm
- Brand
- LevelOne
- Category
- Network Transceiver Module
- Model
- GVT-0300
- Part number
- GVT-0300
- EAN / UPC
- 5711045426568, 4015867103654, 4015867107140, 4015867224380 +3 more
- Also known as
- LevelOne 1.25Gbps Multi-mode SFP Transceiver, 550m, 850nm
Specifications
30 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Link budget | 8.5 dB |
| Networking standards | IEEE 802.3z |
Features
| Specification | Value |
|---|---|
| Hot-Plug support | Yes |
| Compatible products | GSW-2453 GVT-4000 |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.5 V |
| Maximum voltage | 6 V |
| Maximum current | 0.3 A |
Certificates
| Specification | Value |
|---|---|
| Certification | Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.4 mm |
| Depth | 56.6 mm |
| Height | 8.4 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 155 mm |
| Package depth | 50 mm |
| Package height | 230 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
| Country of origin | Taiwan |
