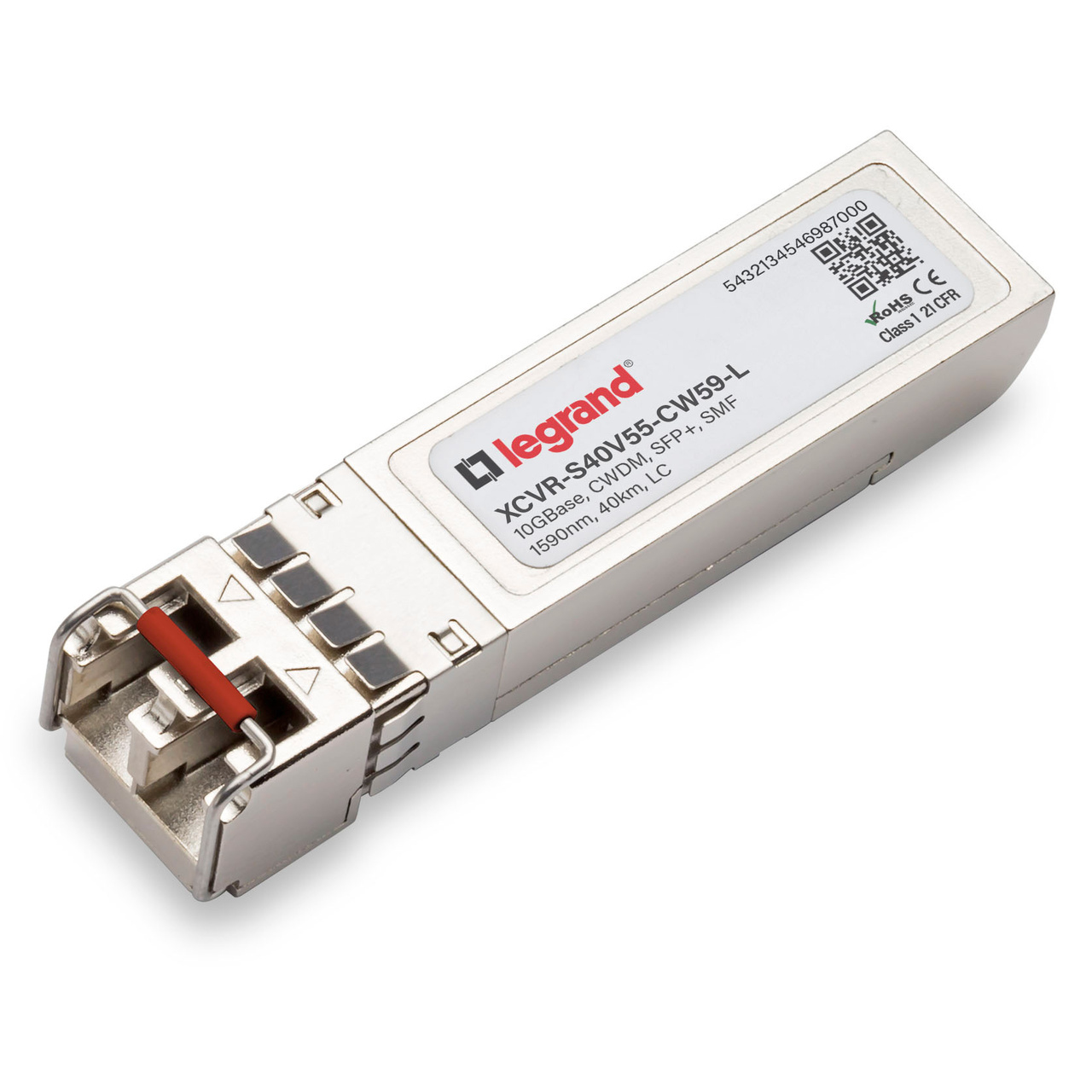

XCVR-S40V55-CW59-L network transceiver module Fiber optic 10000 Mbit/s SFP+ 1590 nm
Model XCVR-S40V55-CW59-L
17 specifications
- Speed10000 Mbit/s
- SFP transceiver typeFiber optic
- Brand compatibilityCiena
- Minimum operating temperature-40 °C
Overview
- Speed
- 10000 Mbit/s
- SFP transceiver type
- Fiber optic
- Brand compatibility
- Ciena
- Minimum operating temperature
- -40 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- XCVR-S40V55-CW59-L
- Part number
- XCVR-S40V55-CW59-L
- Also known as
- Legrand XCVR-S40V55-CW59-L network transceiver module Fiber optic 10000 Mbit/s SFP+ 1590 nm
Specifications
17 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | CWDM |
| Maximum transfer distance | 40000 m |
| Wavelength | 1590 nm |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Brand compatibility | Ciena |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
