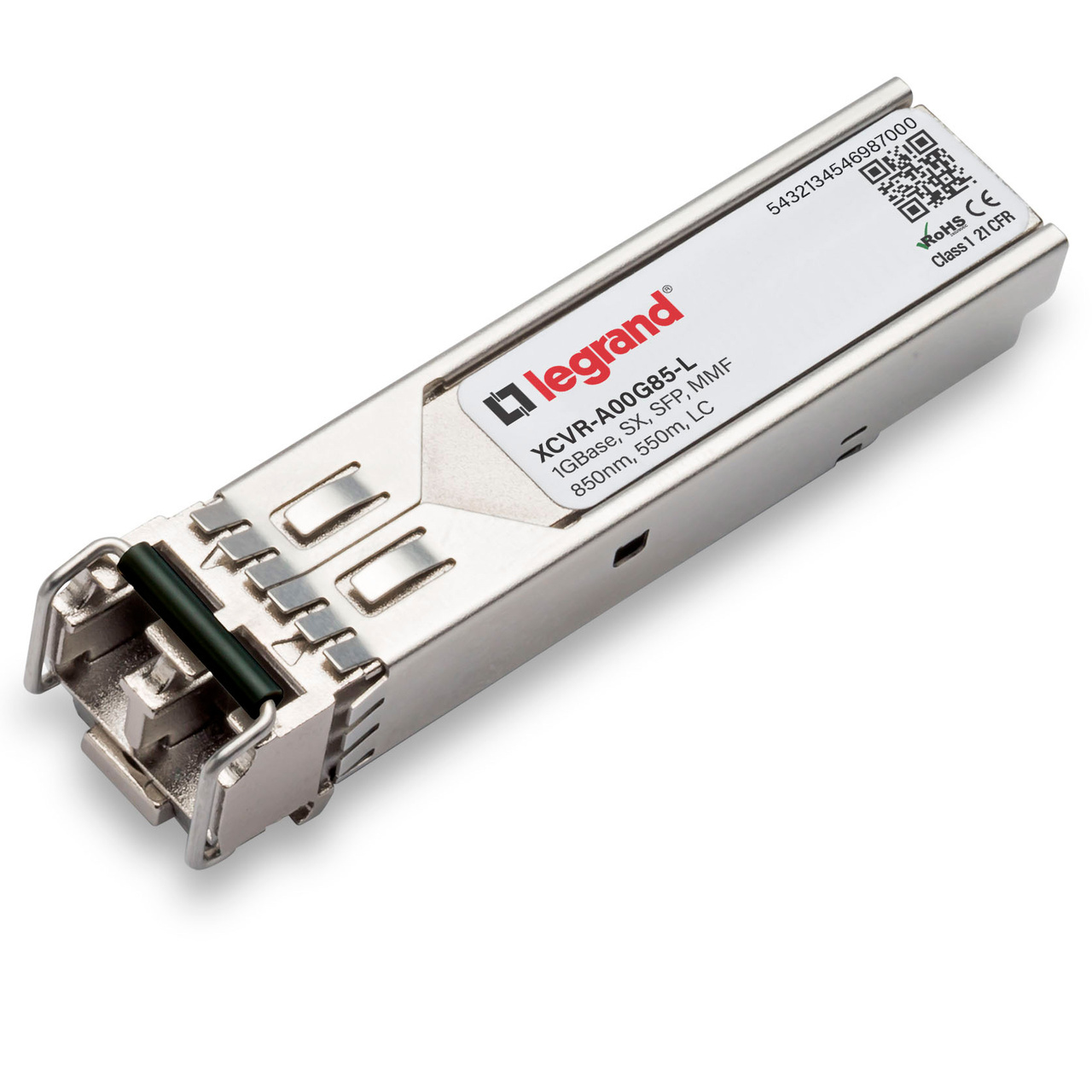

XCVR-A00G85-L network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
Model XCVR-A00G85-L
17 specifications
- Speed1000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature-40 °C
Overview
- Speed
- 1000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- -40 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- XCVR-A00G85-L
- Part number
- XCVR-A00G85-L
- Also known as
- Legrand XCVR-A00G85-L network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
Specifications
17 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Brand compatibility | Ciena |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
