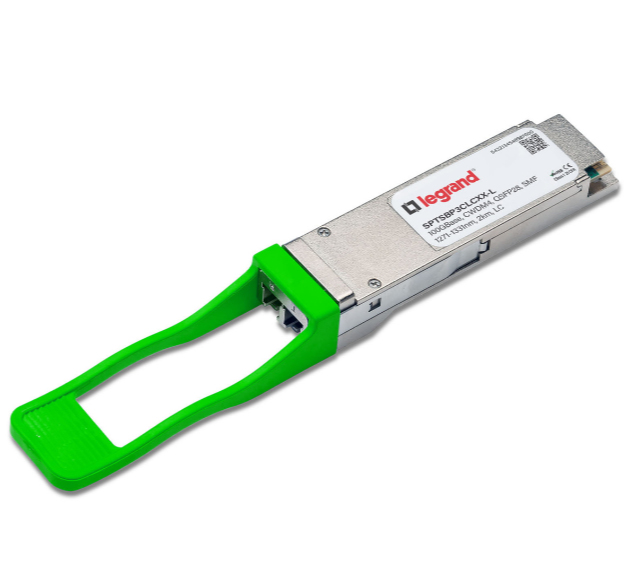

SPTSBP3CLCXX-L network transceiver module Fiber optic QSFP28
Model SPTSBP3CLCXX-L
12 specifications
- ColourAluminium
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
Overview
- Colour
- Aluminium
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- SPTSBP3CLCXX-L
- Part number
- SPTSBP3CLCXX-L
- Also known as
- Legrand SPTSBP3CLCXX-L network transceiver module Fiber optic QSFP28
Specifications
12 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | Yes |
| Maximum transfer distance | 2000 m |
| Tx wavelength (max) | 1271 nm |
| Rx wavelength (max) | 1331 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | 100 Gigabit Ethernet |
| Fiber ethernet cabling technology | 100GBASE |
Features
| Specification | Value |
|---|---|
| Product colour | Aluminium |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
