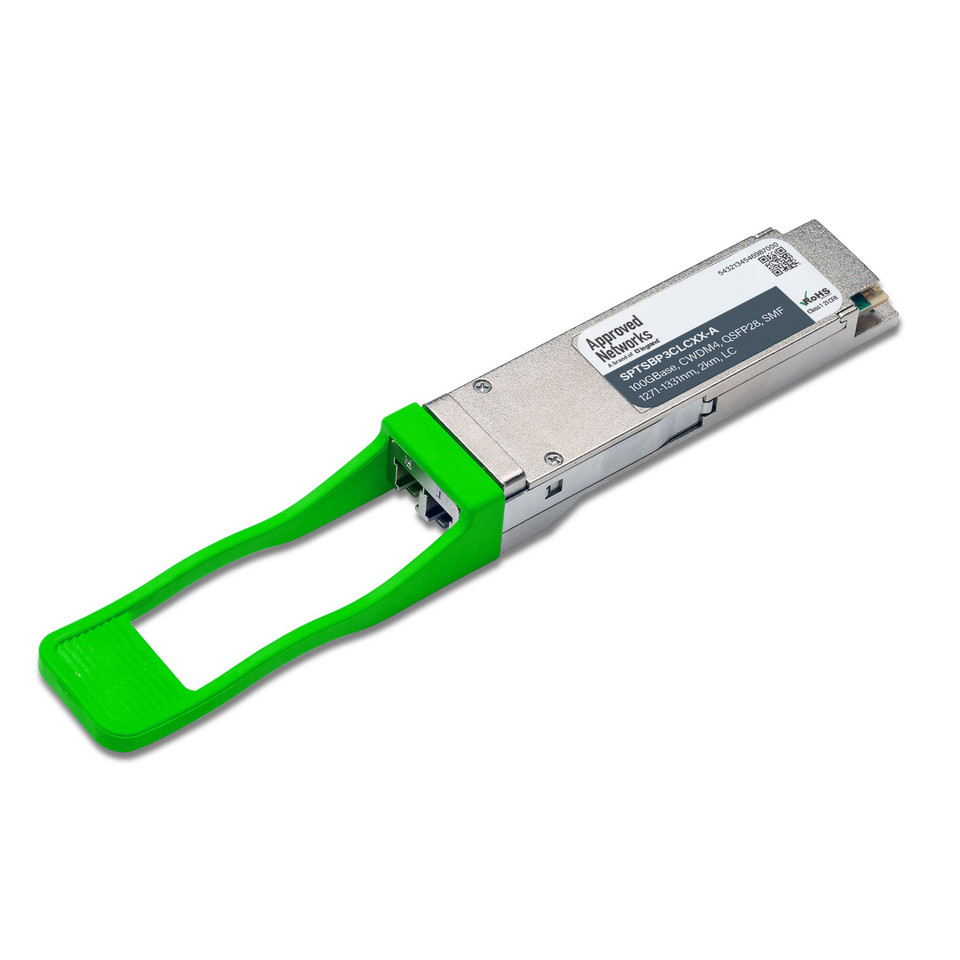

Legrand SPTSBP3CLCXX-A network transceiver module Fiber optic 103125 Mbit/s QSFP28

SPTSBP3CLCXX-A network transceiver module Fiber optic 103125 Mbit/s QSFP28

Model SPTSBP3CLCXX-A

29 specifications

Speed103125 Mbit/s
TypeQSFP28
ColourMetallic
SFP transceiver typeFiber optic
Power consumption (typical)3.5 W
Minimum operating temperature0 °C

See all specifications

Overview

Speed: 103125 Mbit/s
Type: QSFP28
Colour: Metallic
SFP transceiver type: Fiber optic
Power consumption (typical): 3.5 W
Minimum operating temperature: 0 °C

Brand: Legrand
Category: Network Transceiver Module
Model: SPTSBP3CLCXX-A
Part number: SPTSBP3CLCXX-A
Also known as: Legrand SPTSBP3CLCXX-A network transceiver module Fiber optic 103125 Mbit/s QSFP28

Specifications

29 specifications in 7 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	103125 Mbit/s
Interface type	QSFP28
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	LC
SFP transceiver standard	CWDM4
Maximum transfer distance	2000 m
Tx wavelength (min)	1271 nm
Tx wavelength (max)	1331 nm
Ethernet interface type	100 Gigabit Ethernet
Fiber ethernet cabling technology	100GBASE
Digital Diagnostics Monitoring (DDM)	Yes

Features

Specification	Value
Product colour	Metallic
Form factor	QSFP28
Plug and Play	Yes
Hot-Plug support	Yes
Easy to install	Yes
Brand compatibility	Intel

Power

Specification	Value
Power consumption (typical)	3.5 W

Certificates

Specification	Value
Compliance certificates	RoHS

Operational conditions

Specification	Value
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%

Weight & dimensions

Specification	Value
Width	18.4 mm
Depth	78 mm
Height	12.7 mm

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
