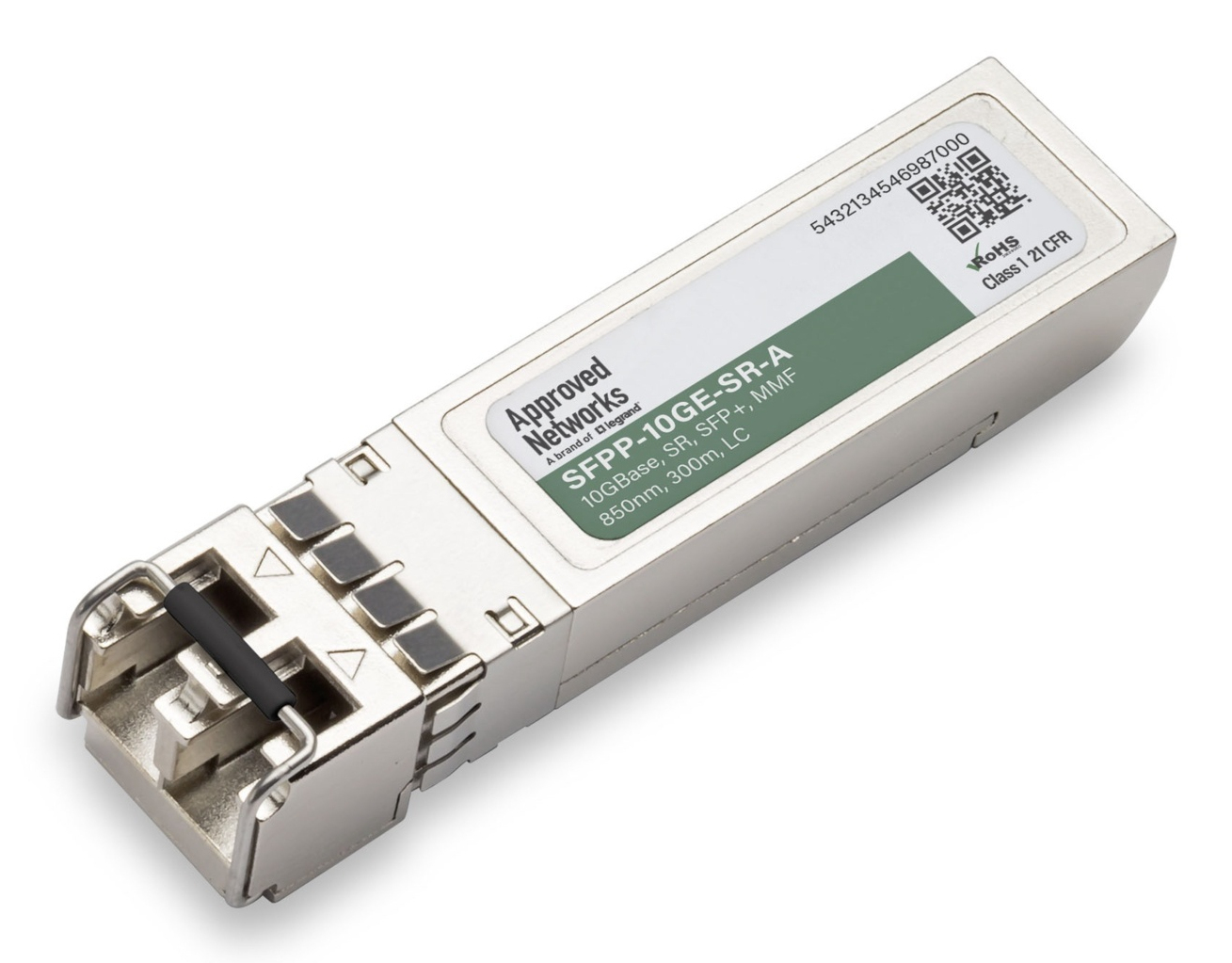

SFPP-10GE-SR-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 850 nm
Model SFPP-10GE-SR-AEAN 840445700635
22 specifications
- Speed11100 Mbit/s
- Weight11.3 g
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature-40 °C
- Width13.9 mm
Overview
- Speed
- 11100 Mbit/s
- Weight
- 11.3 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- -40 °C
- Width
- 13.9 mm
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- SFPP-10GE-SR-A
- Part number
- SFPP-10GE-SR-A
- EAN / UPC
- 840445700635
- Also known as
- Legrand SFPP-10GE-SR-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 850 nm
Specifications
22 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 11100 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SR |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Fiber ethernet cabling technology | 10GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Brand compatibility | Juniper |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 13.9 mm |
| Weight | 11.3 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
