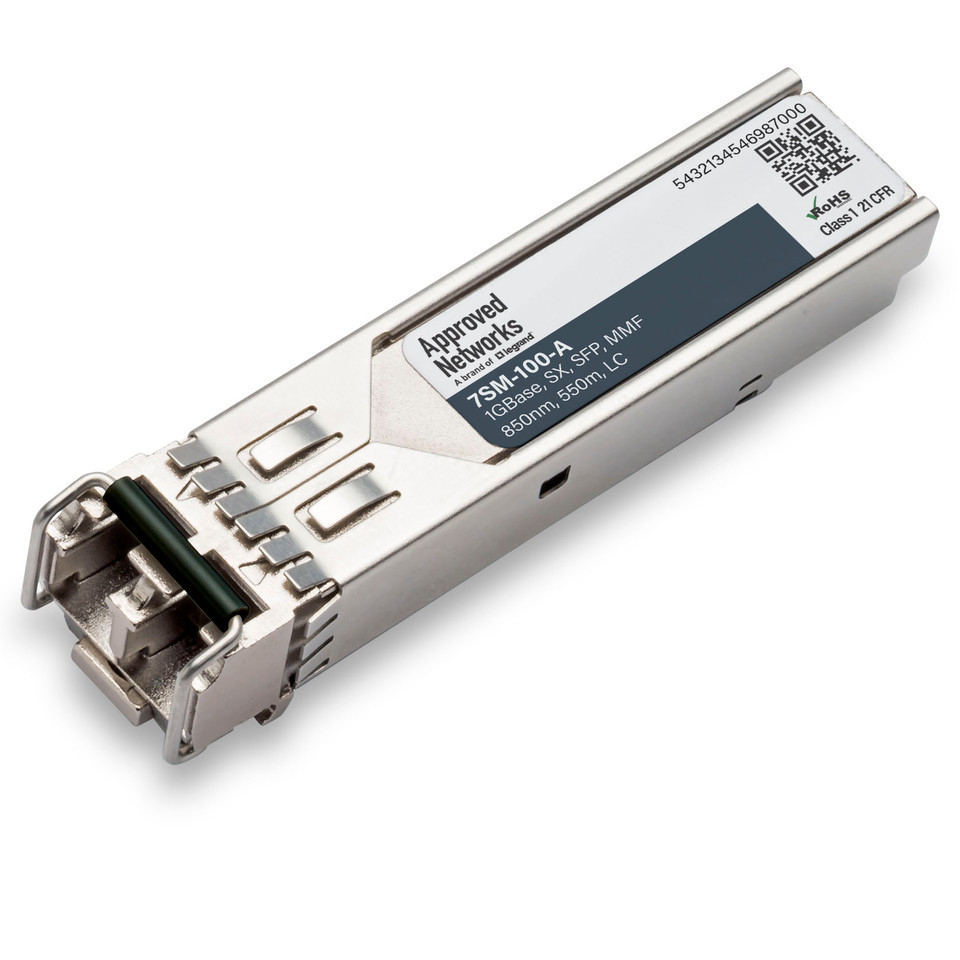

SFP-SX network transceiver module Fiber optic 1250 Mbit/s 850 nm
Model SFP-SXPart no. SFP-1GE-SX-AEAN 840445701311
29 specifications
- Speed1250 Mbit/s
- TypeSFP
- ColourMetallic
- SFP transceiver typeFiber optic
- Minimum operating temperature-40 °C
- Width13.9 mm
Overview
- Speed
- 1250 Mbit/s
- Type
- SFP
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- -40 °C
- Width
- 13.9 mm
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- SFP-SX
- Part numbers
- SFP-1GE-SX-A, SFP-DGD-SX-A, 0061004008-A, 0061705844-03-A, 0410-0447-A, 331-5308-A +34 more
- EAN / UPC
- 840445701311, 840445700871, 840445701687, 662875051664 +2 more
- Also known as
- Legrand SFP-SX network transceiver module Fiber optic 1250 Mbit/s 850 nm
Specifications
29 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Link budget | 8 dB |
| Ethernet interface type | Gigabit Ethernet |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Form factor | SFP |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | Accedian |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
