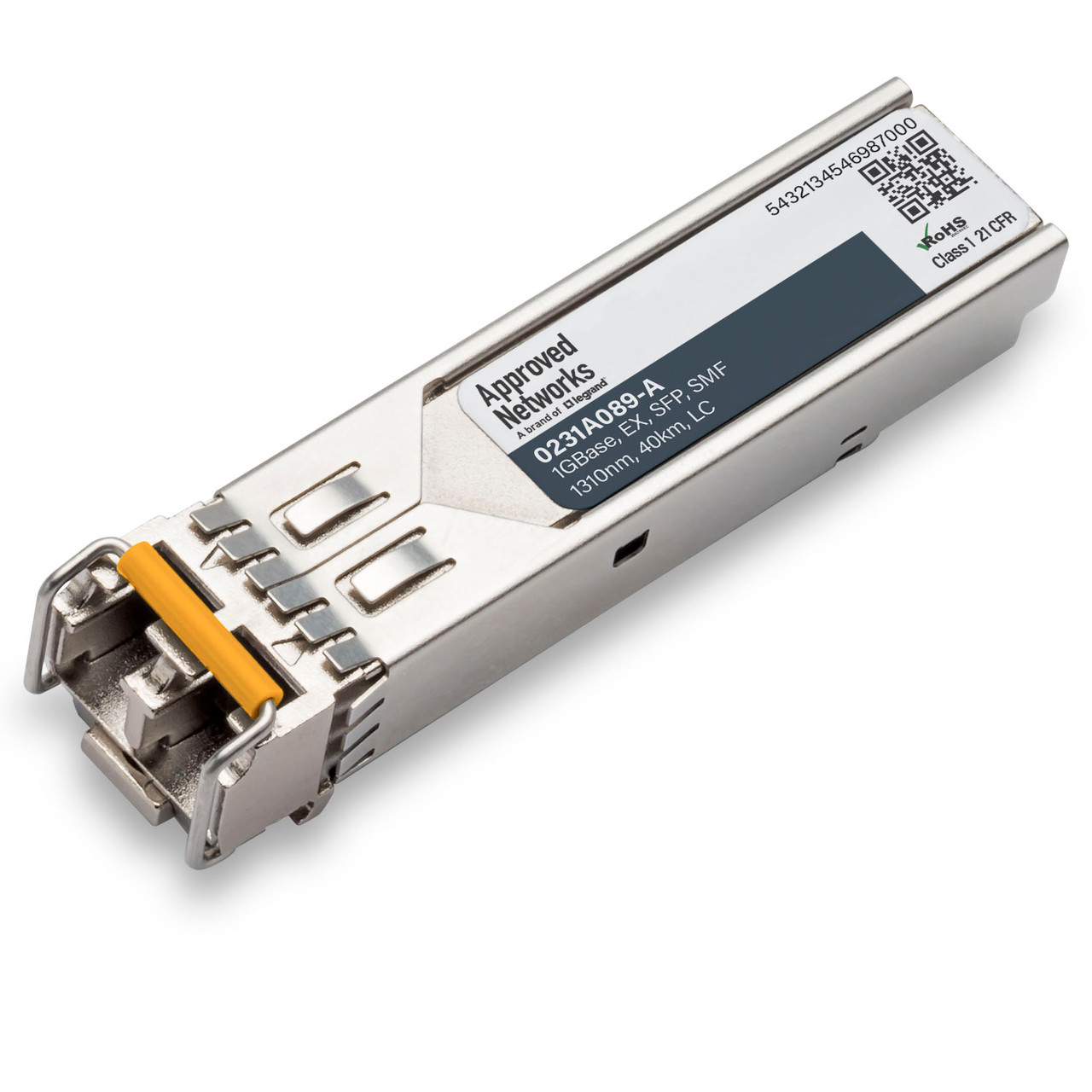

SFP-EX network transceiver module Fiber optic 1250 Mbit/s 1310 nm
Model SFP-EXPart no. 0231A089-A
29 specifications
- Speed1250 Mbit/s
- TypeSFP
- ColourMetallic
- SFP transceiver typeFiber optic
- Power consumption (typical)1 W
- Minimum operating temperature-40 °C
Overview
- Speed
- 1250 Mbit/s
- Type
- SFP
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1 W
- Minimum operating temperature
- -40 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- SFP-EX
- Part number
- 0231A089-A
- Also known as
- Legrand SFP-EX network transceiver module Fiber optic 1250 Mbit/s 1310 nm
Specifications
29 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | EX |
| Maximum transfer distance | 40000 m |
| Wavelength | 1310 nm |
| Ethernet interface type | Gigabit Ethernet |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Form factor | SFP |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | H3C |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.7 mm |
| Depth | 56.6 mm |
| Height | 12.3 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
