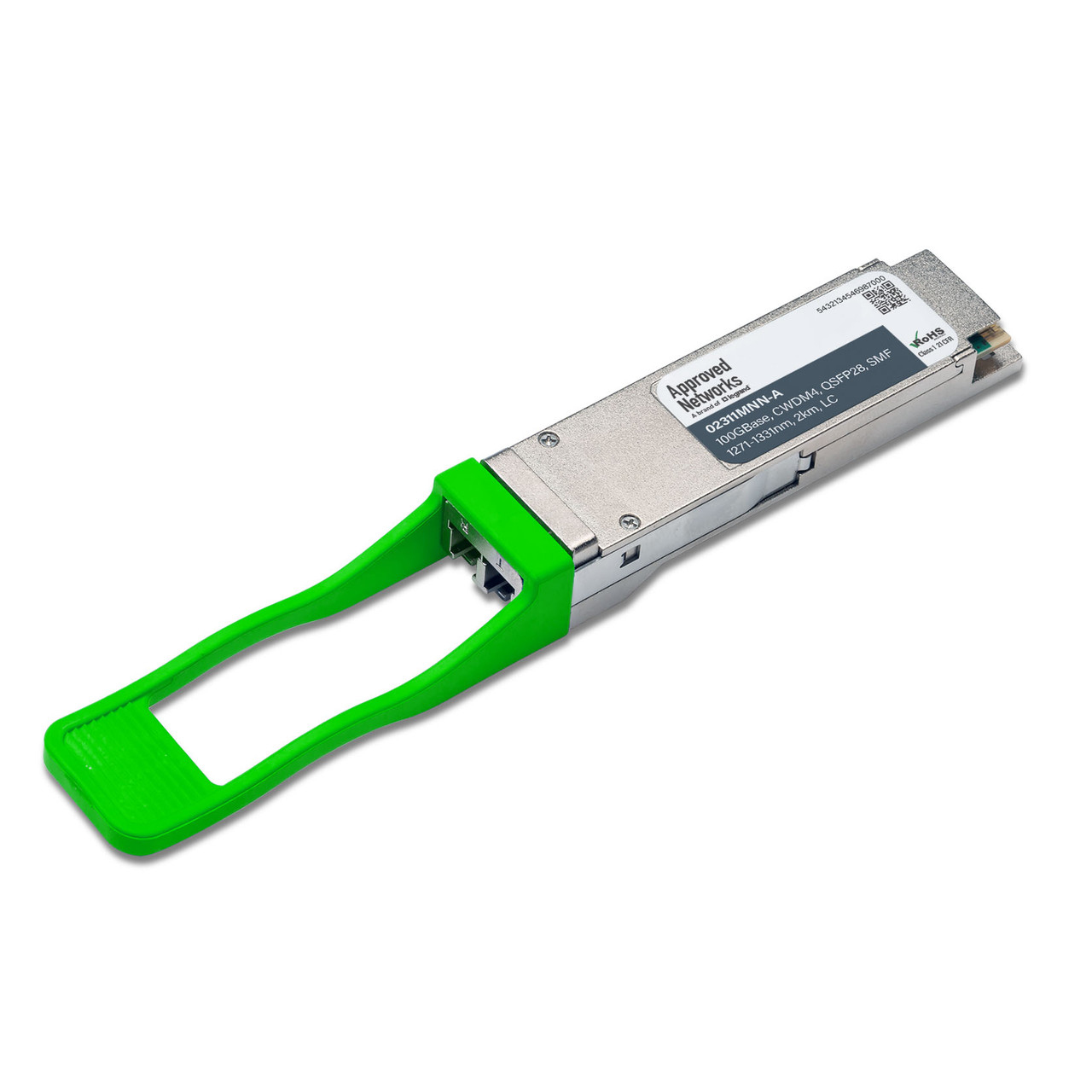

QSFP28-CWDM4 network transceiver module Fiber optic 103125 Mbit/s
Model QSFP28-CWDM4Part no. 02311MNN-A
28 specifications
- Speed103125 Mbit/s
- TypeQSFP28
- ColourMetallic
- SFP transceiver typeFiber optic
- Power consumption (typical)3.5 W
- Minimum operating temperature0 °C
Overview
- Speed
- 103125 Mbit/s
- Type
- QSFP28
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 3.5 W
- Minimum operating temperature
- 0 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- QSFP28-CWDM4
- Part number
- 02311MNN-A
- Also known as
- Legrand QSFP28-CWDM4 network transceiver module Fiber optic 103125 Mbit/s
Specifications
28 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 103125 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | CWDM4 |
| Maximum transfer distance | 2000 m |
| Tx wavelength (min) | 1271 nm |
| Tx wavelength (max) | 1331 nm |
| Ethernet interface type | 100 Gigabit Ethernet |
| Fiber ethernet cabling technology | 100GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Form factor | QSFP28 |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | Huawei |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.5 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18.4 mm |
| Depth | 78 mm |
| Height | 12.7 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
