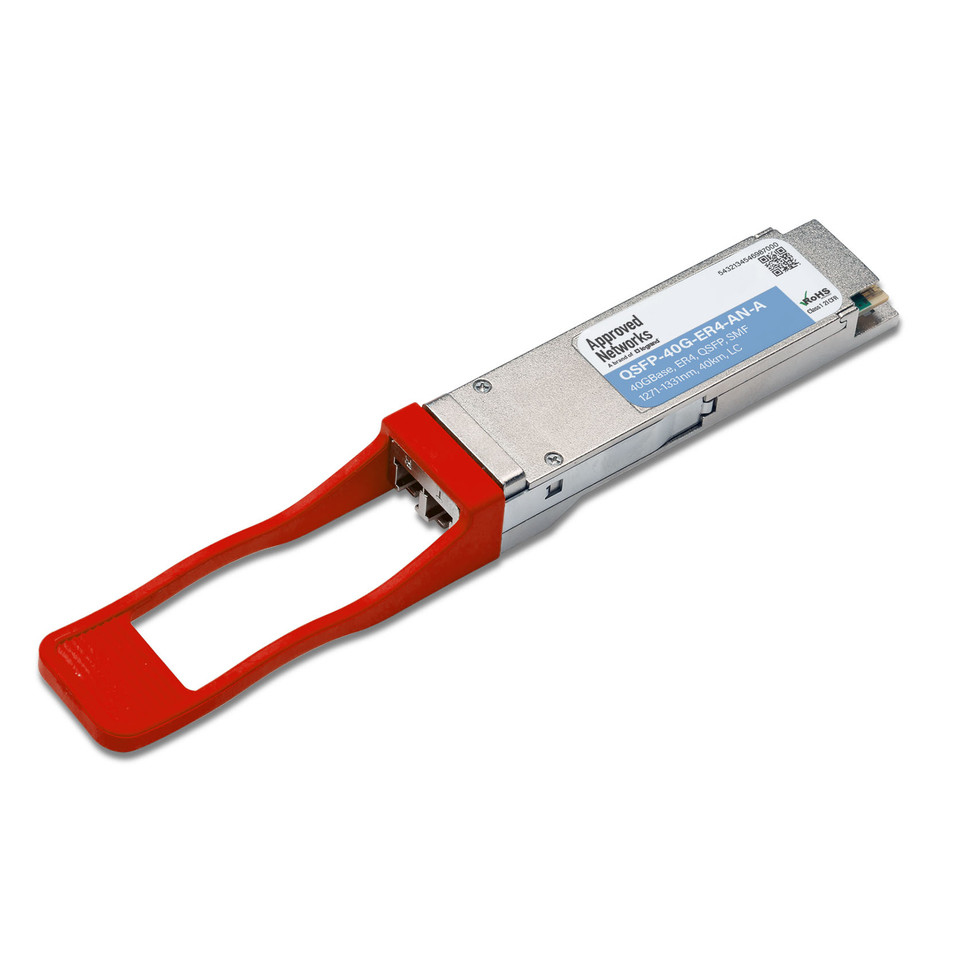

QSFP-ER4 network transceiver module Fiber optic 41200 Mbit/s QSFP+
Model QSFP-ER4Part no. QSFP-40G-ER4-AN-AEAN 840445701496
29 specifications
- Speed41200 Mbit/s
- TypeQSFP+
- ColourMetallic
- SFP transceiver typeFiber optic
- Minimum operating temperature0 °C
- Width18.4 mm
Overview
- Speed
- 41200 Mbit/s
- Type
- QSFP+
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- 0 °C
- Width
- 18.4 mm
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- QSFP-ER4
- Part numbers
- QSFP-40G-ER4-AN-A, GP-QSFP-40GE-1ER-A, JL306A-A, AA1404003-E6-A, 400000514-A, 40G-QSFP-ER4-A +4 more
- EAN / UPC
- 840445701496
- Also known as
- Legrand QSFP-ER4 network transceiver module Fiber optic 41200 Mbit/s QSFP+
Specifications
29 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 41200 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | ER4 |
| Maximum transfer distance | 40000 m |
| Tx wavelength (min) | 1271 nm |
| Tx wavelength (max) | 1331 nm |
| Ethernet interface type | 40 Gigabit Ethernet |
| Fiber ethernet cabling technology | 40GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Form factor | QSFP+ |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | Arista |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18.4 mm |
| Depth | 72 mm |
| Height | 8.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
