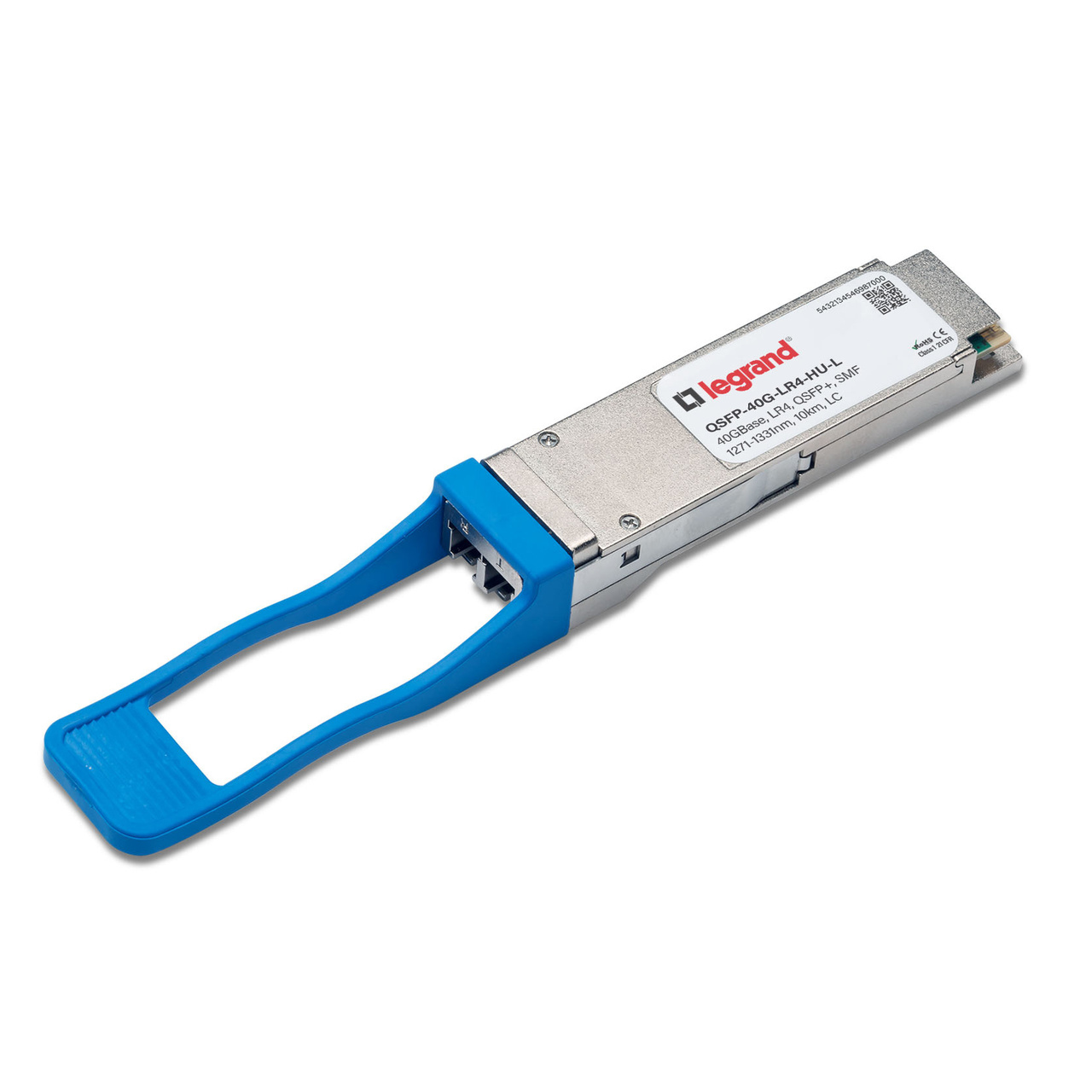

QSFP-40G-LR4-HU-L network transceiver module Fiber optic 40000 Mbit/s QSFP+ 1331 nm
Model QSFP-40G-LR4-HU-L
18 specifications
- Speed40000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature0 °C
Overview
- Speed
- 40000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- 0 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- QSFP-40G-LR4-HU-L
- Part number
- QSFP-40G-LR4-HU-L
- Also known as
- Legrand QSFP-40G-LR4-HU-L network transceiver module Fiber optic 40000 Mbit/s QSFP+ 1331 nm
Specifications
18 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Wavelength | 1331 nm |
| Ethernet interface type | 40 Gigabit Ethernet |
| Fiber ethernet cabling technology | 40GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
