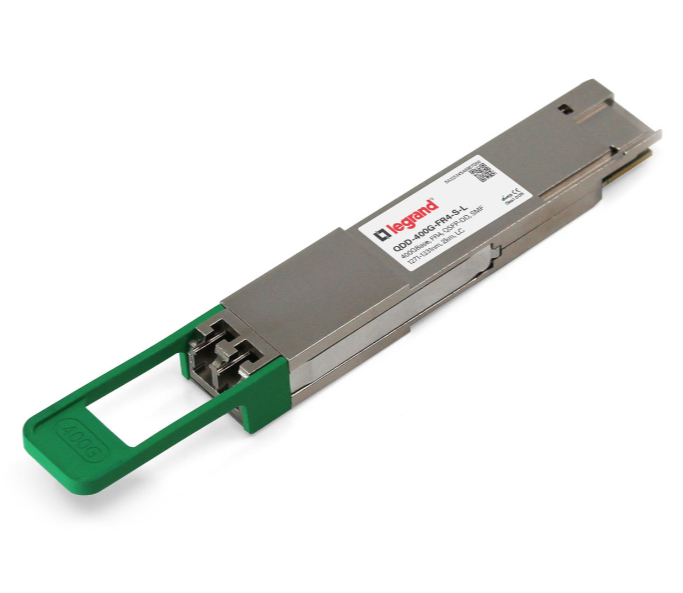

QDD-400G-FR4-S-L network transceiver module Fiber optic QSFP-DD
Model QDD-400G-FR4-S-L
14 specifications
- ColourSilver
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
Overview
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- QDD-400G-FR4-S-L
- Part numbers
- QDD-400G-FR4-S-L, QDD-400G-FR4-S-A
- Also known as
- Legrand QDD-400G-FR4-S-L network transceiver module Fiber optic QSFP-DD
Specifications
14 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | QSFP-DD |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 2000 m |
| Tx wavelength (max) | 1271 nm |
| Rx wavelength (max) | 1331 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | 400 Gigabit Ethernet |
| Fiber ethernet cabling technology | 400GBASE |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
