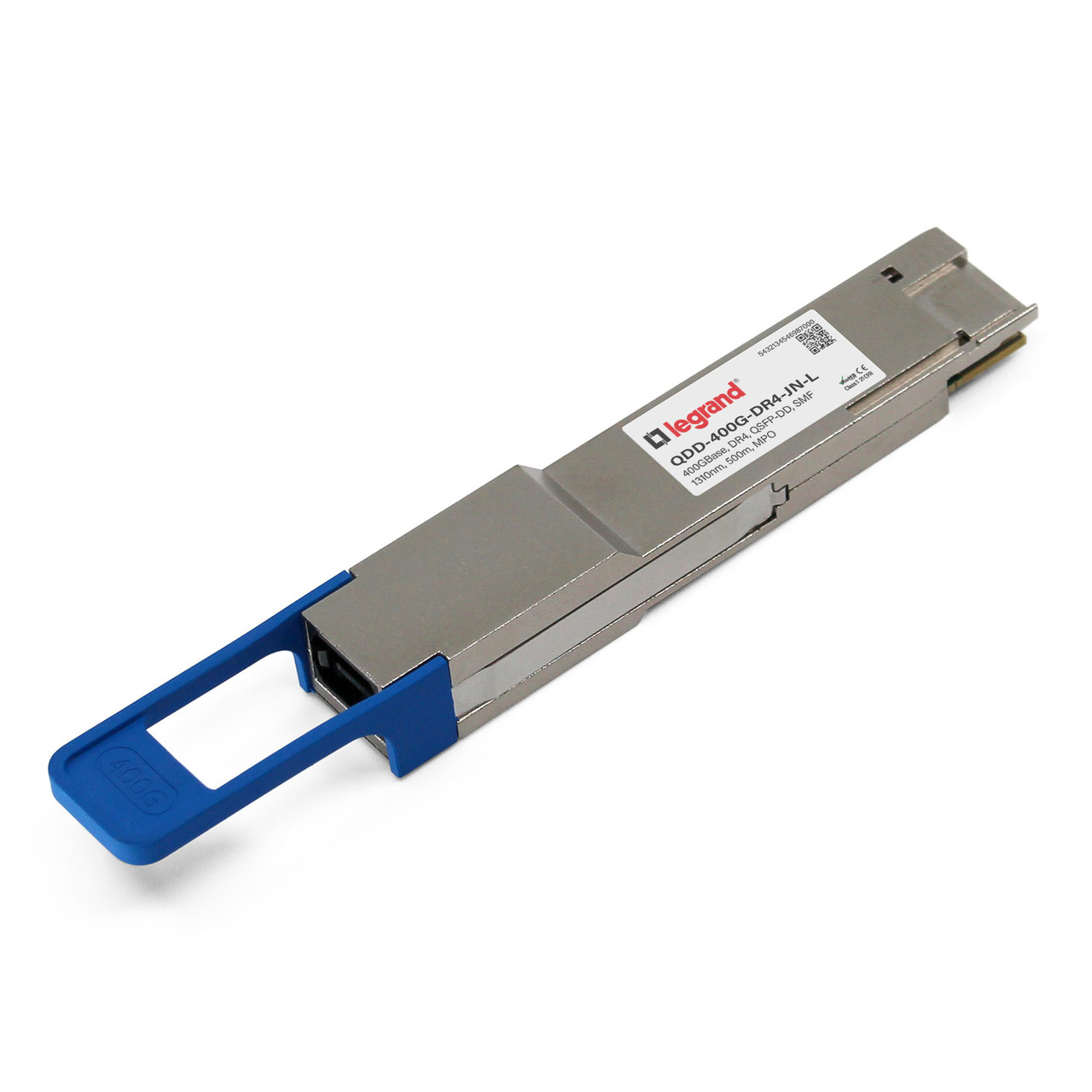

QDD-400G-DR4-JN-L network transceiver module Fiber optic 400000 Mbit/s QSFP-DD 1310 nm
Model QDD-400G-DR4-JN-L
21 specifications
- Speed400000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature0 °C
Overview
- Speed
- 400000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- 0 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- QDD-400G-DR4-JN-L
- Part number
- QDD-400G-DR4-JN-L
- Also known as
- Legrand QDD-400G-DR4-JN-L network transceiver module Fiber optic 400000 Mbit/s QSFP-DD 1310 nm
Specifications
21 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 400000 Mbit/s |
| Interface type | QSFP-DD |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | MTP/MPO |
| SFP transceiver standard | DR4 |
| Maximum transfer distance | 500 m |
| Wavelength | 1310 nm |
| Fiber ethernet cabling technology | 400GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Juniper |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
