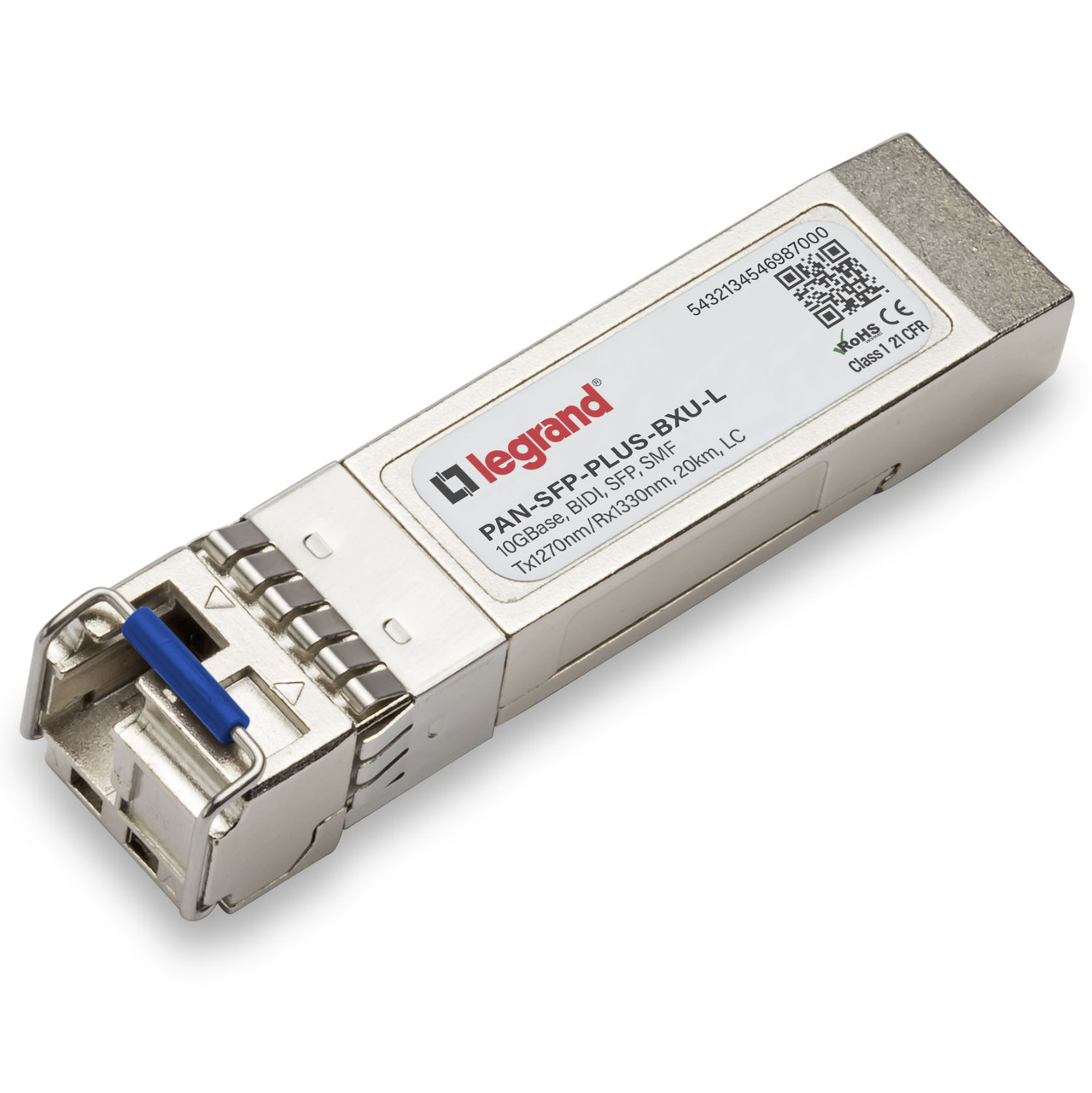

PAN-SFP-PLUS-BXU-L network transceiver module Fiber optic 10000 Mbit/s SFP+
Model PAN-SFP-PLUS-BXU-L
19 specifications
- Speed10000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature-40 °C
Overview
- Speed
- 10000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- -40 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- PAN-SFP-PLUS-BXU-L
- Part number
- PAN-SFP-PLUS-BXU-L
- Also known as
- Legrand PAN-SFP-PLUS-BXU-L network transceiver module Fiber optic 10000 Mbit/s SFP+
Specifications
19 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | BX |
| Maximum transfer distance | 20000 m |
| Tx wavelength (max) | 1270 nm |
| Rx wavelength (max) | 1330 nm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Fiber ethernet cabling technology | 10GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
