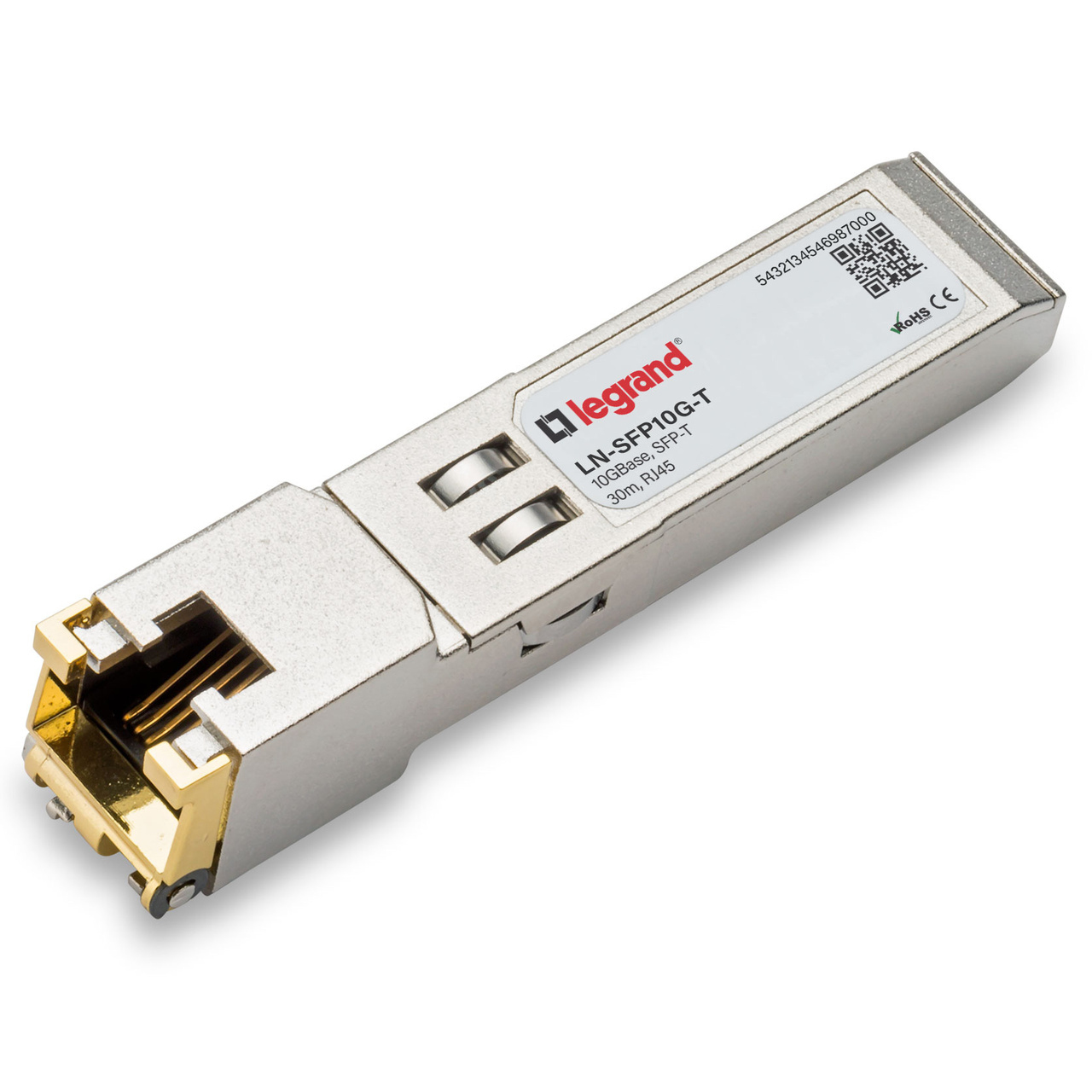

LN-SFP10G-T network transceiver module Copper 10000 Mbit/s SFP
Model LN-SFP10G-TEAN 662875069232
29 specifications
- Speed10000 Mbit/s
- TypeSFP
- ColourSilver
- SFP transceiver typeCopper
- Input voltage3.3 V
- Minimum operating temperature-5 °C
Overview
- Speed
- 10000 Mbit/s
- Type
- SFP
- Colour
- Silver
- SFP transceiver type
- Copper
- Input voltage
- 3.3 V
- Minimum operating temperature
- -5 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- LN-SFP10G-T
- Part number
- LN-SFP10G-T
- EAN / UPC
- 662875069232
- Also known as
- Legrand LN-SFP10G-T network transceiver module Copper 10000 Mbit/s SFP
Specifications
29 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP |
| Fiber optic connector | RJ-45 |
| SFP transceiver standard | TX |
| Maximum transfer distance | 30 m |
| Networking standards | IEEE 802.3az |
| Fiber ethernet cabling technology | 10GBASE |
| Auto MDI/MDI-X | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | SFP |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | MSA Compliant |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Maximum voltage | 3.6 V |
| Power consumption (typical) | 2.3 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -5 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -5 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.7 mm |
| Depth | 71.1 mm |
| Height | 14 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
