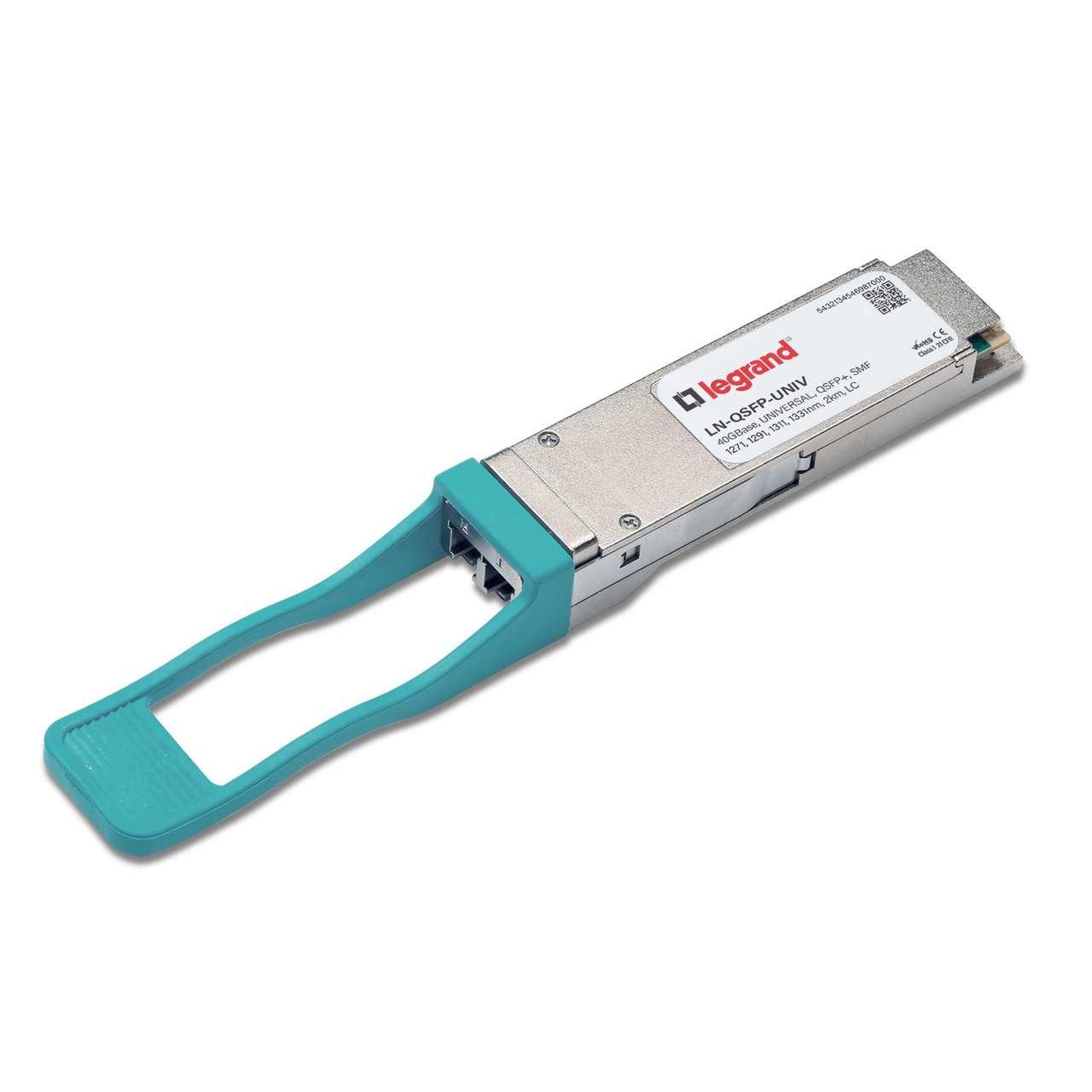

LN-QSFP-UNIV network transceiver module Fiber optic 40000 Mbit/s QSFP+ 1331 nm
Model LN-QSFP-UNIV
16 specifications
- Speed40000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 40000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- LN-QSFP-UNIV
- Part number
- LN-QSFP-UNIV
- Also known as
- Legrand LN-QSFP-UNIV network transceiver module Fiber optic 40000 Mbit/s QSFP+ 1331 nm
Specifications
16 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LX4 |
| Maximum transfer distance | 2000 m |
| Wavelength | 1331 nm |
| Fiber ethernet cabling technology | 40GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Brand compatibility | MSA Compliant |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
