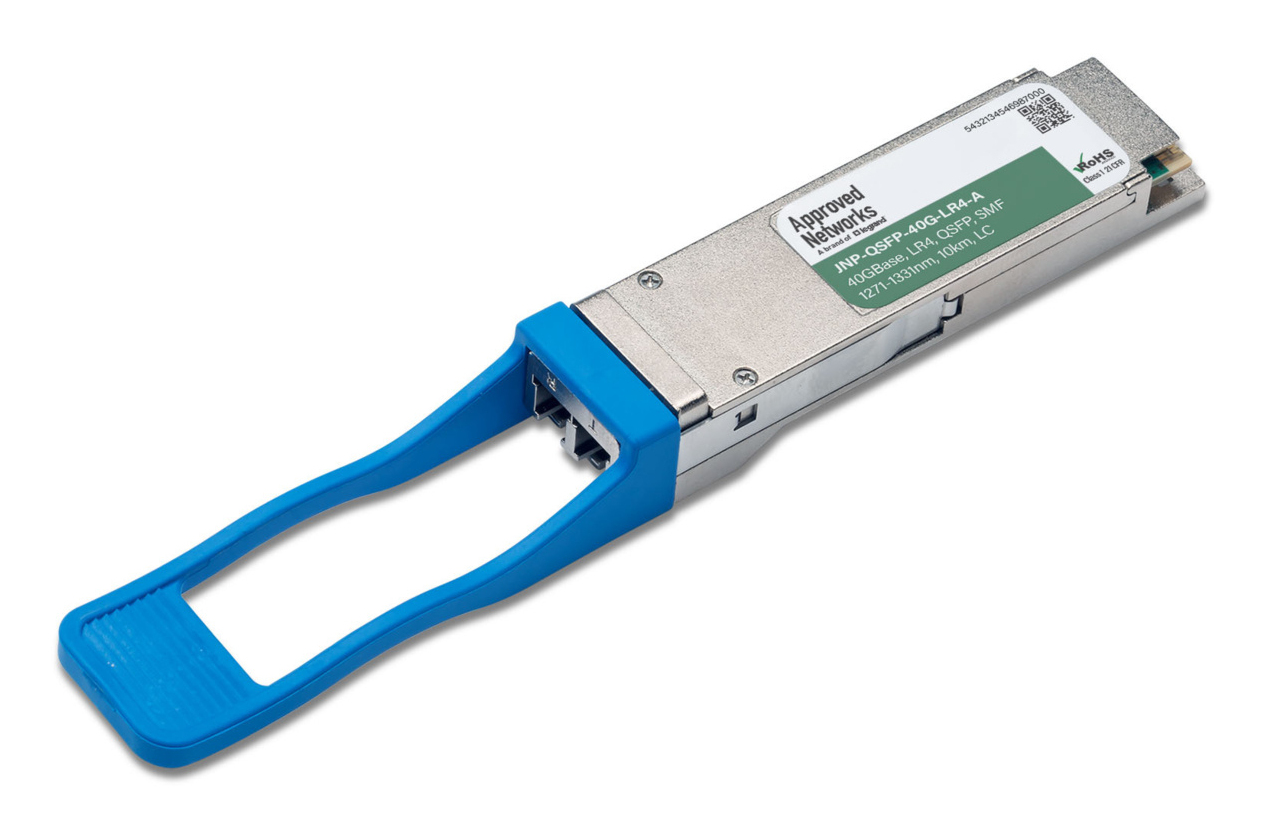

JNP-QSFP-40G-LR4-A network transceiver module Fiber optic 42000 Mbit/s QSFP+ 1331 nm
Model JNP-QSFP-40G-LR4-AEAN 840445700956
24 specifications
- Speed42000 Mbit/s
- TypeQSFP+
- Weight11.3 g
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature0 °C
Overview
- Speed
- 42000 Mbit/s
- Type
- QSFP+
- Weight
- 11.3 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- 0 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- JNP-QSFP-40G-LR4-A
- Part number
- JNP-QSFP-40G-LR4-A
- EAN / UPC
- 840445700956
- Also known as
- Legrand JNP-QSFP-40G-LR4-A network transceiver module Fiber optic 42000 Mbit/s QSFP+ 1331 nm
Specifications
24 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 42000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Wavelength | 1331 nm |
| Fiber ethernet cabling technology | 40GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | QSFP+ |
| Brand compatibility | Juniper |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18.3 mm |
| Depth | 125.3 mm |
| Height | 11.5 mm |
| Weight | 11.3 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
