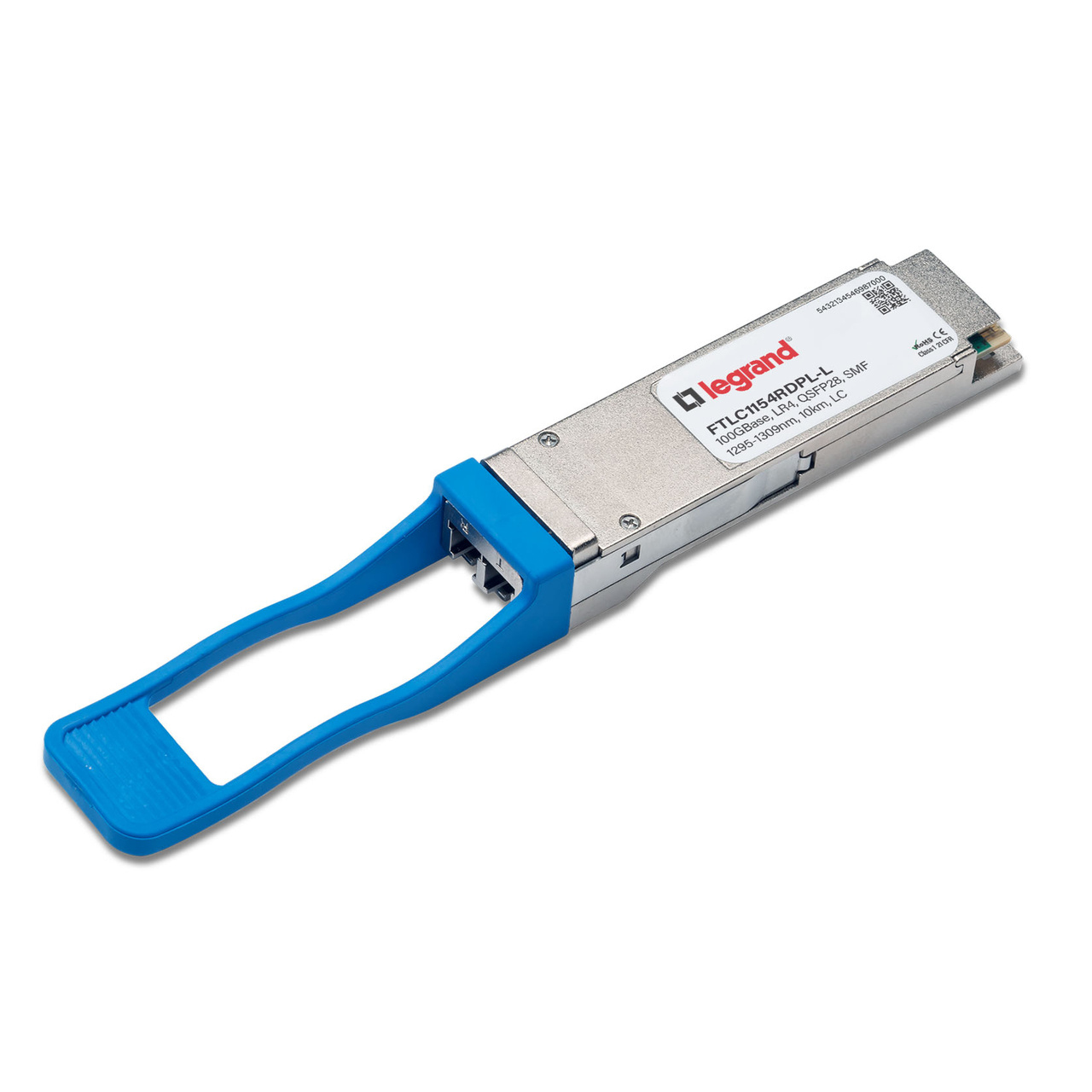

FTLC1154RDPL-OP network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
Model FTLC1154RDPL-OPEAN 662875063841
23 specifications
- Speed100000 Mbit/s
- TypeQSFP28
- ColourSilver
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width18.4 mm
Overview
- Speed
- 100000 Mbit/s
- Type
- QSFP28
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 18.4 mm
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- FTLC1154RDPL-OP
- Part number
- FTLC1154RDPL-OP
- EAN / UPC
- 662875063841
- Also known as
- Legrand FTLC1154RDPL-OP network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
Specifications
23 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Wavelength | 1309 nm |
| Ethernet interface type | 100 Gigabit Ethernet |
| Fiber ethernet cabling technology | 100GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | QSFP28 |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | Finisar |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18.4 mm |
| Depth | 121.9 mm |
| Height | 8.5 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
